| Dimensions | 38 X 40 X 38 | 38 X 40 X 38 |
| Weight | 3,200 | 3,200 |

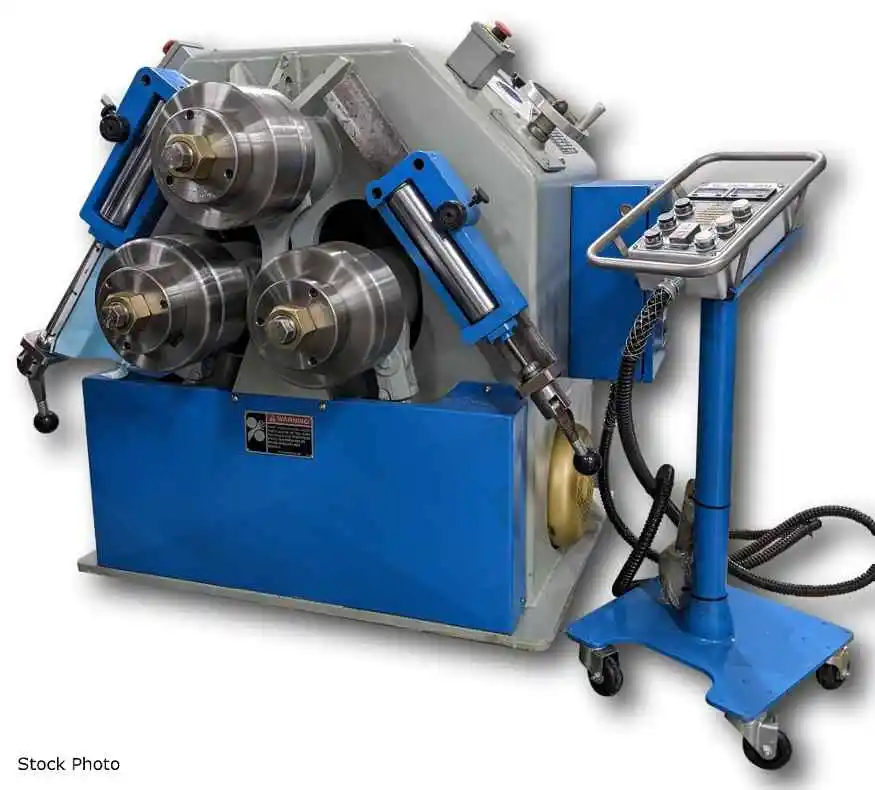

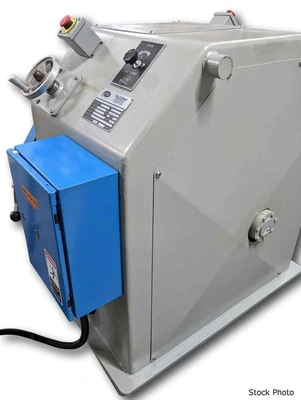

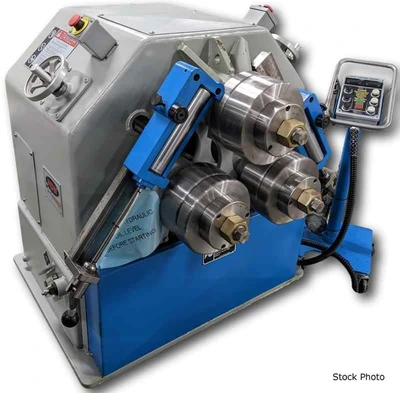

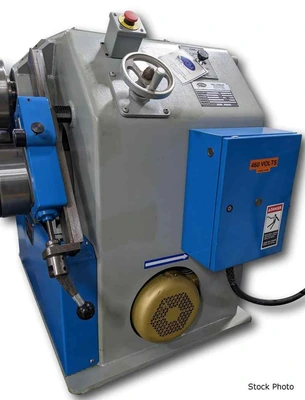

WALDEMAR (NEW) MODEL WDM AR-31 HYD. ANGLE ROLL
7.5 HP 3 PHASE MOTOR
9" ROLL DIAMETER
24 TONS BENDING PRESSURE
3" MAIN SHAFT DIAMETER
0-22 FPM ROLLING SPEED
MINIMUM DIAMETER - CAPACITY
30" ANGLE LEG OUT 3" X 3" X 3/8"
30" ANGLE LEG IN 2.5" X 2.5" X 3/8"
24" FLAT ON FLAT 3/4" X 6", 4.5" X 1"
20" FLAT ON EDGE 5/8" X 3"
16" SQUARE BAR 1-3/4"
28" TEE LEG IN T4 X 9.2"
42" TEE LEG OUT 3" X 3" X 5/16"
20" ROUND BAR 2"
32" SCH 40 PIPE 2-1/2"
30" SCH 80 PIPE 2"
30" SCH 120 PIPE 2"
30" SCH XXH STEEL PIPE 2"
48" ROUND TUBE 4" X 12 GA
40" SQUARE TUBE 2-1/2" X 11 GA
32" RECTANGLE TUBE 3" X 1" X 11 GA
32" CHANNEL FLANGE OUT C5 X 6.7"
32" CHANNEL FLANGE IN C5 X 6.7"
40" I-BEAM ON WEB S5 X 10#
FEATURES

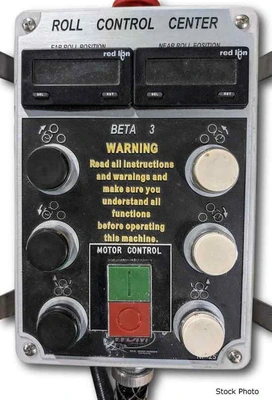

- BETA 3 CONTROL
- ALLOY STEEL SHAFTS AND ARBORS
- TOTAL HYDRAULIC OPERATION
- INSTANT START-STOP-REVERSE

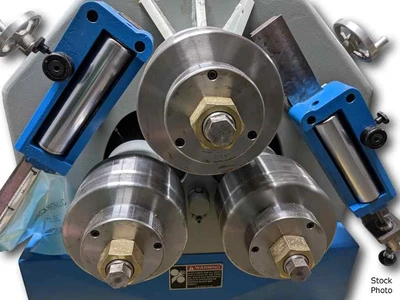

- 1 SET UNIVERSAL DIES, ROLLS
ANGLE LEG IN AND OUT
TEE BAR LEG IN AND OUT
FLATS ON EDGE AND ON FLAT
SQUARE AND SMALL ROUNDS
- ACCURATELY MACHINED AND HARDENED DIES
- 3-ROLL DRIVE
- ELECTRONICS TO NFPA 79 SPECIFICIATIONS
- LOW VOLTAGE CONTROL CIRCUIT 120 OR 24 VAC
- SAFETY STOP/EMERGENCY STOP MUSHROOM BUTTONS
- OVERLOAD PROTECTION
- QUIET, INTEGRATED HYDRAULIC SYSTEM
- SEALED SPHERICAL ROLLER BEARINGS @ MAIN POINTS
- NON-LUBE MINIMUM MAINTENANCE TECHNOLOGY
- HEAVY GEAR DRIVE WITH STRONG TOOTH PROFILE
OPTIONS AVAILABLE - PRICE ON REQUEST
- 6W SET PIPE OR PROFILE
- ADJUSTABLE CHANNEL BEAM
- 4-WAY HYDRAULIC GUIDE ROLL ADJUSTMENT
Power: 230 (3-Phase)
