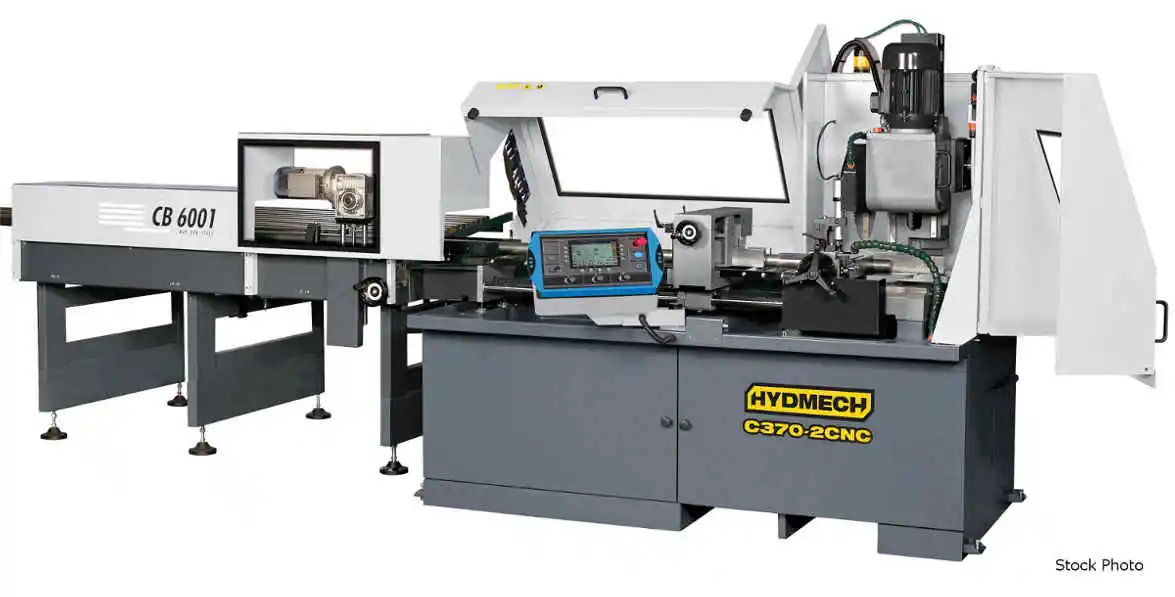

NEW HYDMECH C370-2CNC

HYDMECH (NEW) MODEL C370-2CNC AUTOMATIC
COLUMN COLD SAW

CAPACITY - 90 DEGREES - HOLLOW
- 4.75" ROUND, 4.25" SQUARE, 7" X 4" RECTANGLE
CAPACITY - 45 DEGREES - LEFT/RIGHT - HOLLOW
- 4.5" ROUND, 4" SQUARE, 4.75" X 4" RECTANGLE
CAPACITY - 60 DEGREES - LEFT - HOLLOW
- 4.5" ROUND, 3.5" SQUARE, 3.5" X 3.5" RECTANGLE

CAPACITY - 90 DEGREES - SOLID
- 4.75" ROUND, 4.25" SQUARE, 7" X 4" RECTANGLE
CAPACITY - 45 DEGREES - LEFT/RIGHT - SOLID
- 2.75" ROUND, 2.75" SQUARE, 2.75" X 4" RECTANGLE
CAPACITY - 60 DEGREES - LEFT - SOLID
- 2" ROUND, 2" SQUARE, 2" X 4" RECTANGLE

14.5" BLADE SIZE - MAXIMUM
13.78" BLADE SIZE - MINIMUM
7.5 HP BLADE DRIVE
480 VOLTS, 3 PHASE
10" REMNANT LENGTH
15 - 150 RPM BLADE SPEEDS

STANDARD MACHINE FEATURES
- AUTOMATIC OPERATION WITH SEMI-AUTO MODE
- MEP 50 CONTROLLER
- AUTOMATIC MULTI-INDEXING UP TO 40" IN 1 STROKE
- AUTOMATIC KERF COMPENSATION
- POWERED BY BALL SCREW AND STEPPER MOTOR

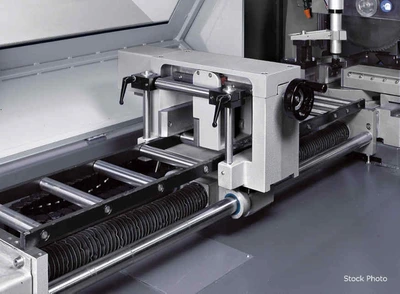

- SHUTTLE FEED CARRIAGE WITH SIDE MOVEMENT
- ELECTRO MECHANIC CYLINDER CONTROLS SAW HEAD

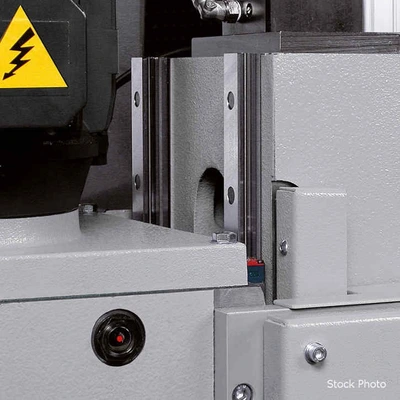

- ROBUST SAW HEAD MOVES ON ADJUSTABLE DUAL
PRECISION LINEAR RAILS
- MITERS 45 DEGREES LEFT RIGHT, 60 DEG LEFT
- BLADE DRIVE COUPLED TO SAW HEAD
- VARIABLE SPEED DRIVE 15-150 RPM
- VERTICAL PNEUMATIC VISE
- EXTENDED JAWS ALLOW FOR SHORT REMNANT
- PNEUMATIC VISE SLIDES ON DOVETAIL
- ENCLOSED STEEL BASE WITH CHIP DRAWER
- COOLANT TANK IN BASE
- REPLACEABLE BLADE BRUSH
- CONTROL PANEL WITH EMERGENCY STOP
- PROGRAMMING CONSOLE STORES UP TO 32 JOBS
- DIGITAL DISPLAY FOR MACHINE DIAGNOSTICS
- FLOOD COOLANT WITH ELECTRICAL COOLANT PUMP
- 1 BLADE INCLUDED (370 X 3 X 32 Z=200)

OPTIONS AVAILABLE - PRICE ON REQUEST

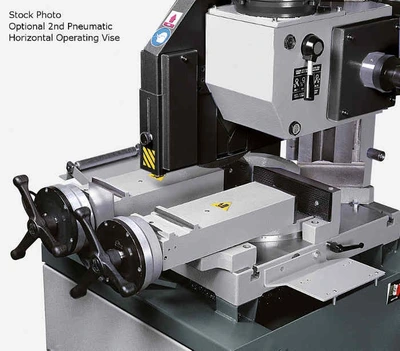

- 2ND PNEUMATIC HORIZONTAL OPERATING VISE
- MIST LUBRICATION SYSTEM
- AUTOMATIC INCLINE LOADING TABLE

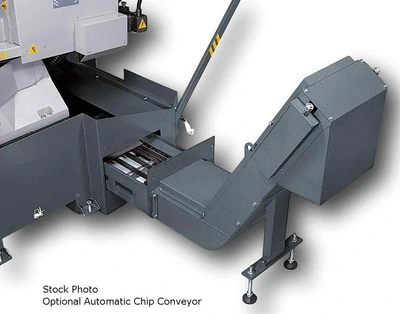

- AUTOMATIC CHIP CONVEYOR
- 6.2" SHORT REMNANT
- POWER TRANSFORMER FOR 208 OR 240 VOLTS
Power: 480 (3-Phase)
