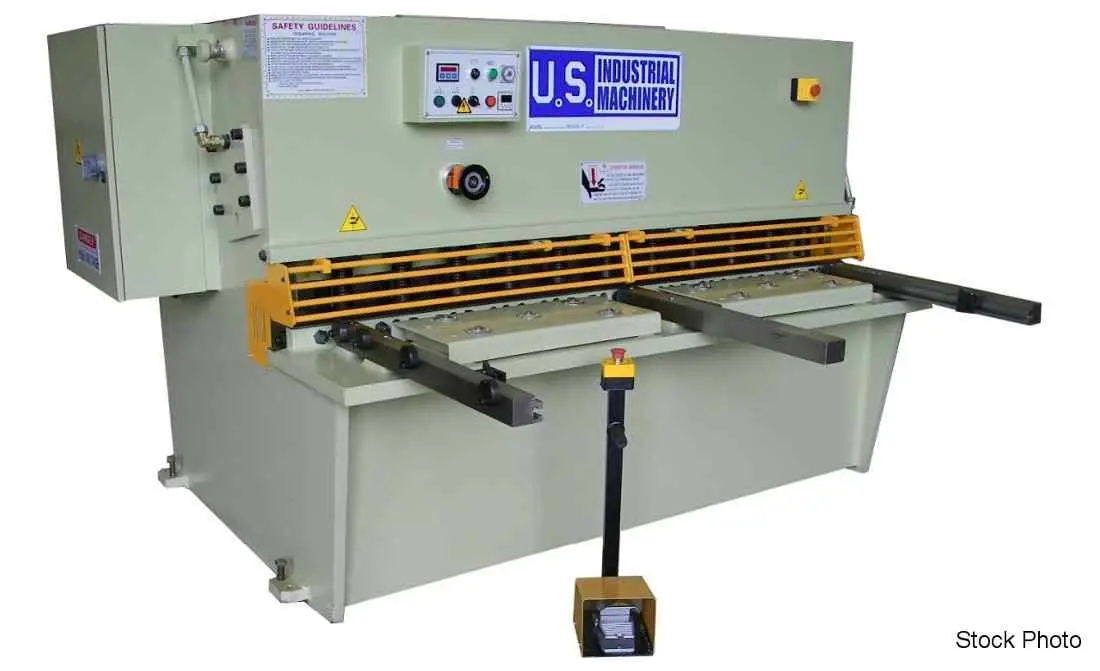

NEW US INDUSTRIAL US625

US INDUSTRIAL (NEW) MODEL US625 6' X 1/4"
HYDRAULIC SQUARING SHEAR

SPECIFICATIONS
- 78.5" SHEET SIZE
- 1/4" MILD STEEL @ 65,000 PSI SHEARING CAPACITY
- 1/8" STAINLESS STEEL @ 95,000 PSI SHEARING CAP
- 1 DEGREE 30' SHEAR ANGLE
- 18 STROKES PER MINUTE - NO LOAD
- 4.7" THROAT DEPTH
- 0.75" - 36" BACK GAUGE ADJUSTMENT RANGE
- 45 GALLON HYDRAULIC OIL CAPACITY
- 15 HP MAIN MOTOR, 220 OR 440 VOLTS, 3 PHASE

EQUIPPED WITH
- 39" SQUARING ARM WITH INLAID SCALE
- HIGH CARBON, HIGH CHROME SHEAR BLADES
- BALL TRANSFERS ON EACH TABLE SEGMENT
- MANUAL QUICK CHANGE BLADE GAP ADJUSTMENT
- STROKE COUNTER
- FRONT-OPERATED POWER BACK GAUGE WITH DRO
- BLADE GUARD, MICRO SWITCH PROTECTED
- HYDRAULIC, ELECTRICAL OVERLOAD PROTECTION
- AUTOMATIC SWING-UP ON BACK GAUGE
- 3 BOLT-ON TABLE SEGMENTS
- HOLD-DOWNS FACED WITH ANTI-MAR NEOPRENE
- SWING BEAM DESIGN
- PRESSURE SENSING HOLDDOWNS
- ELECTRIC STROKE ADJUSTMENT
- OPERATOR CONTROL CONSOLE
- SHADOW LINE WITH LED LIGHTING
- LOW NOISE GEAR PUMP
- SUPPORT ARMS
- 6CrW2Si BLADES FOR CUTTING MILD CARBON STEEL

OPTIONS INCLUDED
- MATERIAL DROP/SUPPORT CHUTE

OPTIONS AVAILABLE - PRICE ON REQUEST
- 3-AXIS CNC PROGRAMMABLE BACK GAUGE
TOUCH SCREEN OPERATED
CONTROLS BG DEPTH, BLADE GAP STROKE LENGTH
200 PROGRAM STORAGE CAPACITY-20 STEPS/PROGRAM
OPERATES IN MANUAL OR AUTOMATIC MODE
- PNEUMATIC SHEET SUPPORT MATERIAL DROP CHUTE
- 6, 8 OR 10 FOOT SQUARING ARM WITH INLAID SCALE
- Cr12MoV BLADES FOR CUTTING 1/8" THICK STAINLESS
- 48" BACK GAUGE - NO SWING UP
- TRAINING

HYDRAULIC OIL IS NOT INCLUDED
Power: 220/440 (3-Phase)
