NEW US INDUSTRIAL USHB155-10CNC

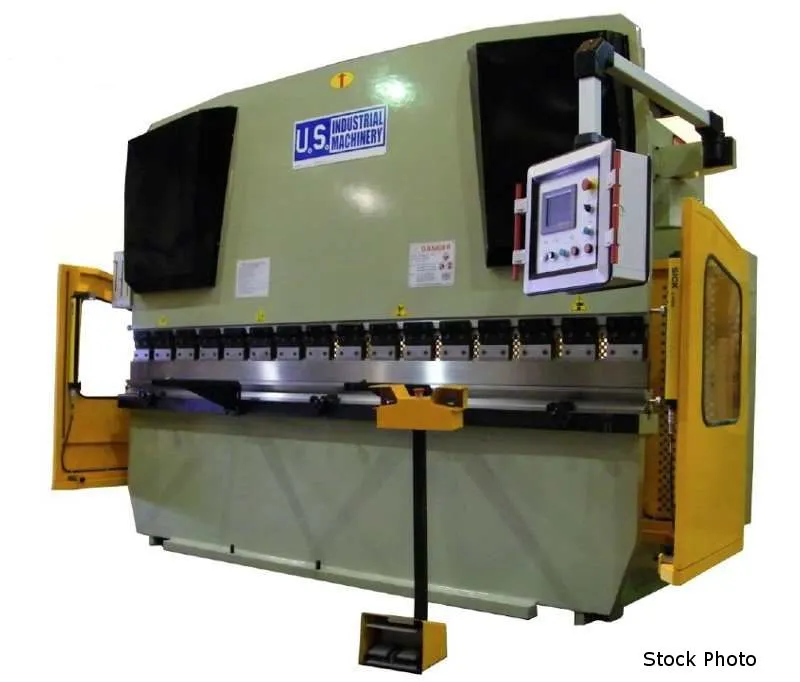

US INDUSTRIAL (NEW) MODEL USHB155-10CNC
HYDRAULIC PRESS BRAKE

155 TON WORKING PRESSURE
125.9" WORKING TABLE
106.2" BETWEEN HOUSING
12.5" THROAT DEPTH
2.75" STROKE ADJUSTMENT OF RAM
5.9" RAM TRAVEL
16.3" OPEN HEIGHT
2.4"/SECOND RAPID RAM TRAVEL SPEED
2.0"/SECOND RAPID RAM RETREAT SPEED
79 GALLONS HYDRAULIC OIL CAPACITY
15 HP MOTOR

STANDARD EQUIPMENT
- 2-AXIS CNC BACK GAUGE
- 2 GB COMPACT FLASH CARD CAN HOLD THOUSANDS OF
PROGRAMS AND ALLOWS 10 BENDS/PROGRAM
- RAM DEFLECTION ADJUSTMENT
- MECHANICAL RAM DEPTH CONTROL
- MASSIVE TORSION BAR FOR PARALLELISM
- FORGED HEAVY-DUTY CYLINDER CYLINDER BODY
- 3-SPEED RAM
- RAPID APPROACH, BENDING CYCLE AND RAPID RETREAT
- BOTTOM TIME DELAY
- ALL STEEL CONSTRUCTION
- INCHING, SINGLE CYCLE CONTINUOUS OPERATION
- FREE GOOSENECK PUNCH AND DIE*

OPTIONS INCLUDED
- SICK 4000 LIGHT CURTAIN SYSTEM

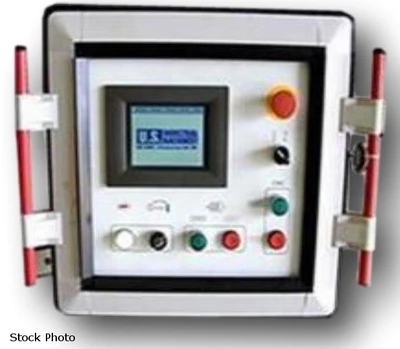

- CNC 2-AXIS COLOR GRAPHIC CONTROL

OPTIONS AVAILABLE - PRICE ON REQUEST
- LED SAFETY GUARDING
- THIRD AXIS
- CNC CONTROLLED MECHANICAL AUTO CROWN
- SERVO BACK GAUGE
- TRAINING

PRICE DOES NOT INCLUDE HYDRAULIC OIL

*SPECIAL NOTE
GOOSENECK PUNCH MULTI-OPENING DIE INCLUDED ARE
GENERAL PURPOSE TOOLS TO BE USED FOR TRAINING ONLY
PRECISION TOOLING SHOULD BE PURCHASED TO MEET YOUR
SPECIFIC NEEDS. PUNCH IS SEGMENTED, AND IT IS UP
TO THE CUSTOMER TO CALIBRATE THESE IF THEY WANT TO
USE THEM FOR A PARTICULAR PURPOSE. THERE IS NO
WARRANTY ON THESE ITEMS.
