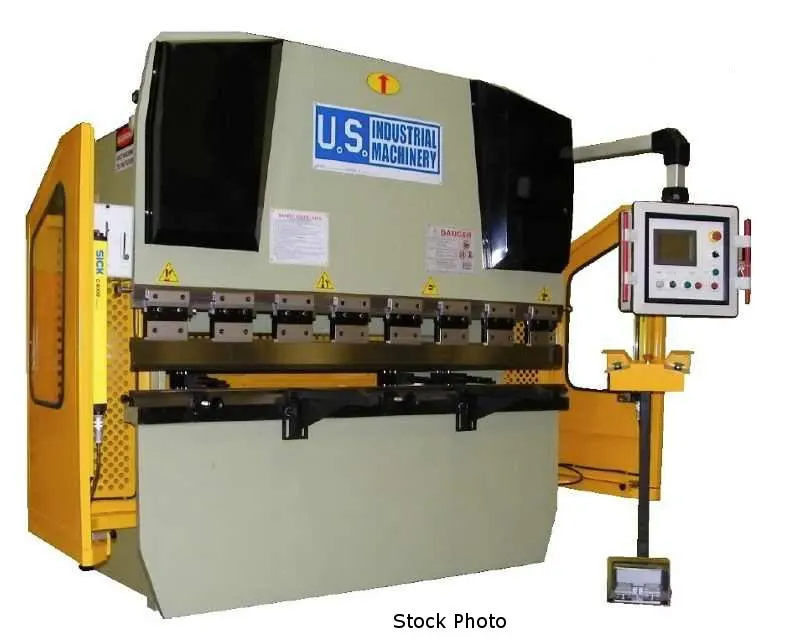

NEW US INDUSTRIAL USHB44-6CNC

US INDUSTRIAL (NEW) MODEL USHB44-6CNC HYDRAULIC
PRESS BRAKE

44 TON WORKING PRESSURE
78.7" WORKING TABLE LENGTH
63.7" BETWEEN HOUSINGS
7.8" THROAT
1.96" RAM STROKE ADJUSTMENT
3.93" RAM TRAVEL
12.5" OPEN HEIGHT
2.4"/SEC RAPID RAM TRAVEL SPEED
2.0"/SEC RAPID RAM RETREAT SPEED
24" BACK GAUGE TRAVEL
36 GALLON HYDRAULIC OIL CAPACITY
7.5 HP

STANDARD EQUIPMENT
- 2-AXIS CNC CONTROL
- 2 GB COMPACT FLASH CARD CAN HOLD THOUSANDS
OF PROGRAMS AND ALLOWS 10 BENDS/PROGRAM
- RAM DEFLECTION ADJUSTMENT
- MECHANICAL RAM DEPTH CONTROL
- MASSIVE TORSION BAR FOR PARALLELISM
- FORGED HEAVY-DUTY CYLINDER CYLINDER BODY
- 3 SPEED RAM
- RAPID-APPROACH BENDING CYCLE AND RAPID RETREAT
- BOTTOM TIME DELAY
- ALL STEEL CONSTRUCTION
- INCHING, SINGLE CYCLE CONTINUOUS OPERATION
- RAM TAKES STANDARD AMERICAN TANG TOOLING
- RAM TOOL CLAMPS WITH SPACE FOR DEEP BOX BENDING
- BED HAS SLOT FOR STANDARD AMERICAN TANG TOOLING
- BED ALSO HOLDS TOOLING WITH CAPTURE CLAMPS
- FREE GOOSENECK PUNCH AND MULTI-OPENING DIE*

OPTIONS INCLUDED
- SICK 4000 LIGHT CURTAIN SYSTEM

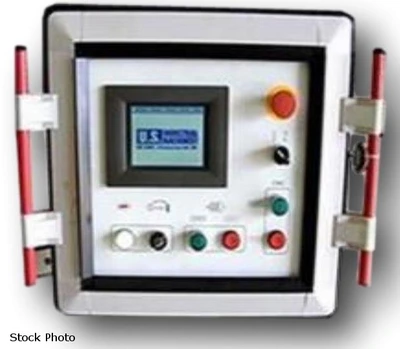

- CNC 2-AXIS COLOR GRAPHIC CONTROL
CONTROLS BEND ANGLE AND BACK GAUGE POSITION
6" LED TOUCH SCREEN
CODE AND GRAPHIC PROGRAMMING
10 BENDS PER PROGRAM/CROSS SECTION
TOOL LIBRARY
METRIC OR INCH
AUTO BEND SEQUENCE
AUTO RETRACT OF BACK GAUGE
SPREAD LENGTH
INTERFERENCE BEND ALERT
CALCULATED BEND ALLOWANCE
PROGRAMMABLE RAM DWELL
STORES THOUSANDS OF PROGRAMS WITH USB PORT
ETHERNET AND RS232 FOR PROGRAM BACKUP

OPTIONS AVAILABLE - PRICE ON REQUEST
- FIESSLER AKAS II LASER GUARDING
- PILZ PSENvip LED SAFETY GUARDING
- THIRD AXIS (BACK GAUGE HEIGHT)
- CNC CONTROLLED MECHANICAL AUTO CROWN
- HIGH-SPEED SERVO BACK GAUGE
- TRAINING

PRICE DOES NOT INCLUDE HYDRAULIC OIL

*SPECIAL NOTE
GOOSENECK PUNCH MULTI-OPENING DIE INCLUDED ARE
GENERAL PURPOSE TOOLS TO BE USED FOR TRAINING ONLY
PRECISION TOOLING SHOULD BE PURCHASED TO MEET YOUR
SPECIFIC NEEDS. PUNCH IS SEGMENTED, AND IT IS UP
TO THE CUSTOMER TO CALIBRATE THESE IF THEY WANT TO
USE THEM FOR A PARTICULAR PURPOSE. THERE IS NO
WARRANTY ON THESE ITEMS.
