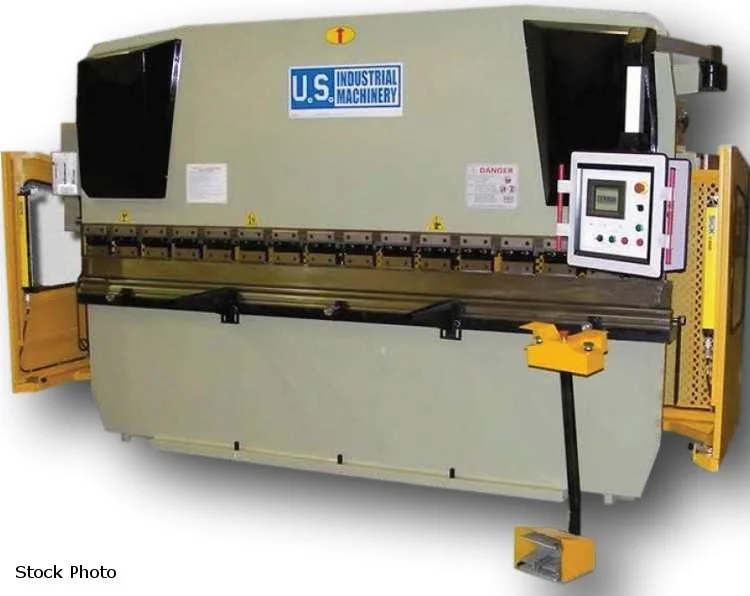

NEW US INDUSTRIAL USHB88-10CNC

US INDUSTRIAL (NEW) MODEL USHB88-10CNC HYDRAULIC
PRESS BRAKE

88 TONS BENDING FORCE
125.9" OVERALL BENDING LENGTH
106.2" DISTANCE BETWEEN HOUSINGS
9.8" THROAT DEPTH
1.96" STROKE ADJUSTMENT OF RAM
3.93" RAM TRAVEL
13.7" OPEN HEIGHT
144"/MIN Y-AXIS RAPID APPROACH SPEED
120"/MIN Y-AXIS RAPID RETURN SPEED
24" X-AXIS BACKGAUGE TRAVEL (POWERED)
10 HP MOTOR
79 GALLONS HYDRAULIC OIL CAPACITY

STANDARD EQUIPMENT
- RAM DEFLECTION ADJUSTMENT
- MECHANICAL RAM DEPTH CONTROL
- MASSIVE TORSION BAR FOR PARALLELISM
- FORGED HEAVY-DUTY CYLINDER CYLINDER BODY
- 3 SPEED RAM
- RAPID APPROACH, BENDING CYCLE AND RAPID RETREAT
- BOTTOM TIME DELAY
- ALL STEEL CONSTRUCTION
- INCHING, SINGLE CYCLE CONTINUOUS OPERATION
- BOX-CLAMP UPPER TOOL HOLDERS FOR DEEP BOX BENDS
- GOOSENECK PUNCH AND MULTI-V DIE INCLUDED*
GOOD FOR FORMING TO 90 DEGREES IN 10GA MILD STEEL

OPTIONS INCLUDED
- SICK 4000 LIGHT CURTAIN SYSTEM

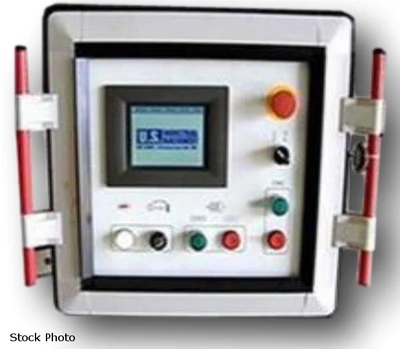

- 2-AXIS CNC COLOR GRAPHIC CONTROL
6" LCD TOUCHSCREEN WITH CODE/GRAPHIC PROGRAMMING,
ALLOWING 10 BENDS PER PROGRAM/CROSS SECTION,
AUTO BACKGAUGE RETRACT, SPREAD LENGTH, RAM DWELL,
INTERFERENCE BEND ALERT, CALCULATED BEND ALLOWANCE

OPTIONS AVAILABLE - PRICE ON REQUEST
- LASER SAFETY GUARDING
- THIRD AXIS
- CNC CONTROLLED MECHANICAL AUTO CROWN
- SERVO BACKGAUGE
- FACTORY TRAINING
- CE CERTIFIED ELECTRICS

PRICE DOES NOT INCLUDE HYDRAULIC OIL

*SPECIAL NOTE ON TOOLING
GOOSENECK PUNCH MULTI-OPENING DIE INCLUDED ARE
GENERAL PURPOSE TOOLS TO BE USED FOR TRAINING
ONLY. PRECISION TOOLING SHOULD BE PURCHASED TO
MEET YOUR SPECIFIC NEEDS. PUNCH IS SEGMENTED,
AND IT IS UP TO THE CUSTOMER TO CALIBRATE THESE
IF THEY WANT TO USE THEM FOR A PARTICULAR
PURPOSE. THERE IS NO WARRANTY ON THESE ITEMS.
Power: 240/480 (3-Phase)
