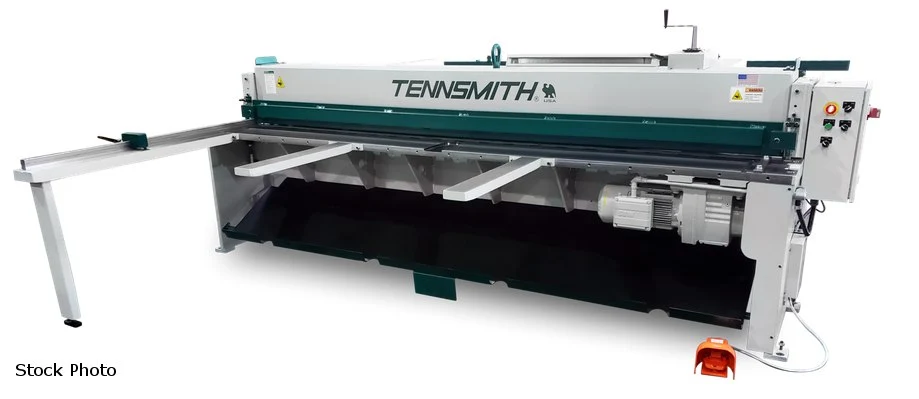

NEW TENNSMITH LM1012

TENNSMITH (NEW) MODEL LM1012 MECHANICAL SHEAR

MAXIMUM SHEARING CAPACITY
- 12 GAUGE MILD STEEL
- 16 GAUGE STAINLESS STEEL
121" MAXIMUM CUTTING LENGTH
30" BACKGAUGE RANGE
35 STROKES PER MINUTE
16 HOLD DOWNS
230/460 VOLT, 3 PHASE, 60 HZ, 7.5 HP MOTOR

FEATURES
- 2X BACKGAUGE SYSTEM ALLOWS THE OPERATOR TO
MOVE THE BACKSTOP FROM 0 TO 30" IN APPROXIMATELY 2
SECONDS WITH 2 ROTATIONS OF THE HANDLE
- 4-EDGE, HIGH-CARBON, HIGH-CHROMIUM (HCHC) TOP
AND BOTTOM BLADES
- INDEPENDENT, SELF-LEVELING HOLD-DOWN FEET
WITH NEOPRENE INSERTS
- SINGLE, CONTINUOUS, AND JOG STROKE CYCLES
- MOTOR REVERSE SWITCH
- PRECISION-MACHINED TABLE WITH
HAND WELL
DUAL INCH/METRIC INLAID BED SCALES
NON-METALLIC GIBS

OPTIONS AVAILABLE - PRICE ON REQUEST
- DIGITAL READOUT
- 5' SQUARING ARM
- 10' SQUARING ARM
- FRONT SUPPORT ARMS
- LIGHT BEAM AND PROTRACTOR ATTACHMENTS
- PERFORMANCE PACKAGE (FRONT OR REAR RETURN)
5' SQUARING ARM
2 FRONT SUPPORT ARMS
AIR-OPERATED SHEET SUPPORT SYSTEM
