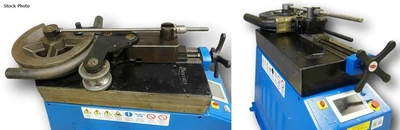

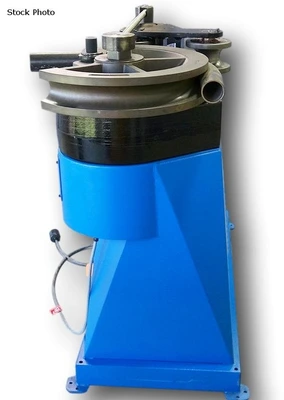

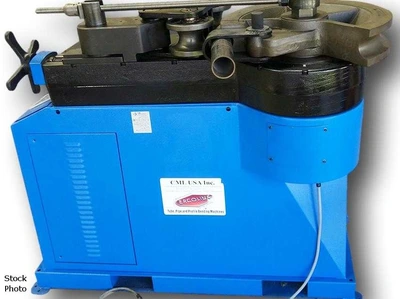

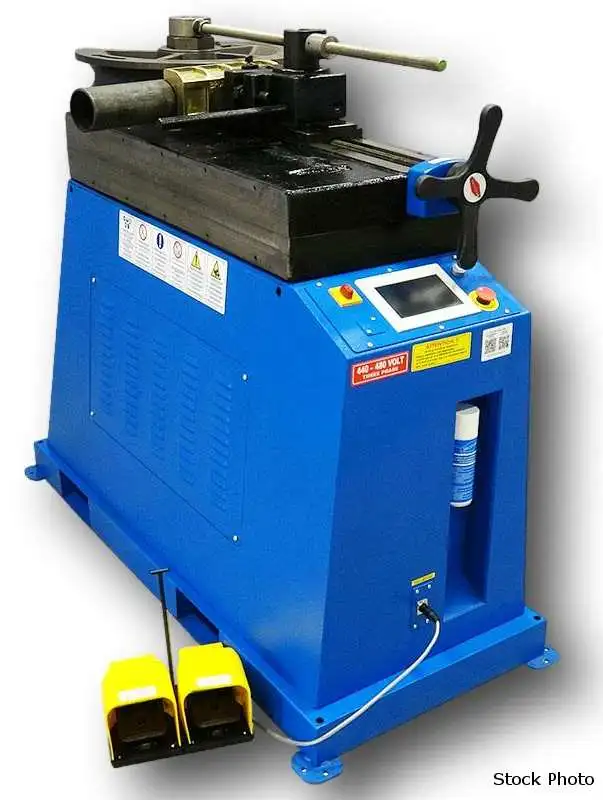

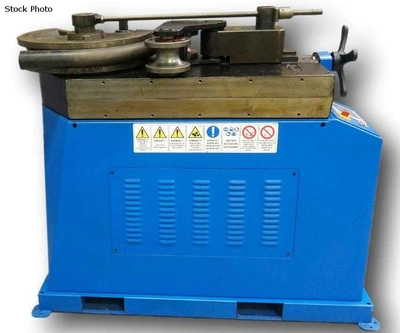

NEW ERCOLINA TB130 TOP BENDER
Overview
Specifications
| Dimensions | 34 X 34 X 47 | 34 X 34 X 47 |
|---|---|---|
| Weight | 1,330 | 1,330 |
ERCOLINA (NEW) TB130 TOP BENDER-TUBE AND PIPE
CAPACITIES BASED ON MILD GRADE MATERIALS
1/4" OUTSIDE DIAMETER - MINIMUM
5" TUBE OUTSIDE DIAMETER - MAXIMUM
4" SCH. 40 PIPE CAPACITY - MAXIMUM
2D CLR - MINIMUM
27.5" CLR - MAXIMUM
0-210 DEGREES ANGLE RANGE
0.75 RPM BENDING SPEED - VARIABLE TO
TOUCH SCREEN PROGRAMMING
UNLIMITED STORAGE WITH USB
12 BENDS WITHIN EACH PROGRAM
220 OR 480V 3 PH VOLTAGE REQUIREMENT
3.5 HP @ 480V MOTOR
FEATURES
- BEND ANY ANGLE TO 180 DEGREES WITH
INDEPENDENT MATERIAL SPRING BACK
COMPENSATION FOR EACH BEND
- IDEAL FOR PRODUCING CONSISTENT QUALITY
BENDS IN LARGE DIAMETER PIPE, TUBE, SQUARES,
RECTANGLES, SOLIDS AND OTHER PROFILES

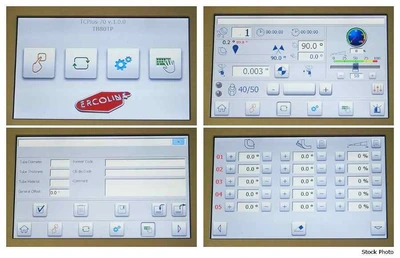

- TOUCH SCREEN CONTROL OFFERS EASY ACCESS
TO AUTO AND MANUAL OPERATING MODES,
PROGRAMMING (INCH AND METRIC) SYSTEM
DIAGNOSTICS AND MULTIPLE LANGUAGE CAPABILITY
- PATENTED QUICK-CHANGE TOOLING SYSTEM WITH
MULTIPLE RADII AVAILABLE
- DIGITAL DISPLAY OF BEND ANGLE
- SWING-AWAY COUNTERBENDING DIE VISE
FOR EASY MATERIAL HANDLING
- HEAVY-DUTY STEEL GEAR CASE
- NO HYDRAULIC COMPONENTS
OPTIONS AVAILABLE - PRICE ON REQUEST
- TUBE AND PIPE TOOLING KITS
- ROLLER COUNTERBENDING DIE
- SPRAY LUBRICANT
- LARGE SQUARE TOOLING
- EASY PART LAYOUT SOFTWARE
Power: 220 OR 480 (3-Phase)
