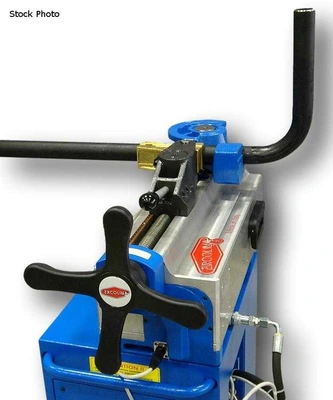

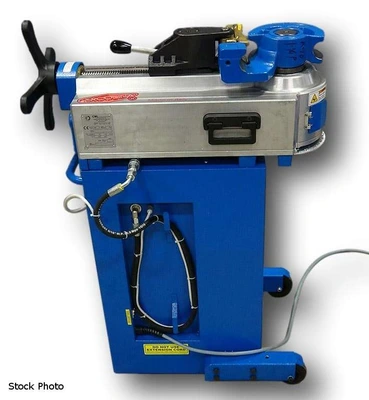

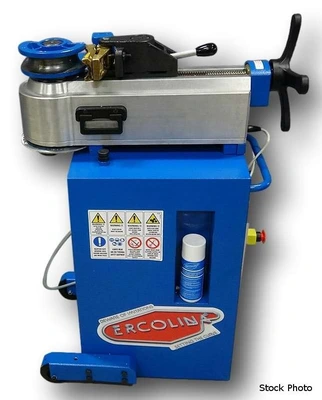

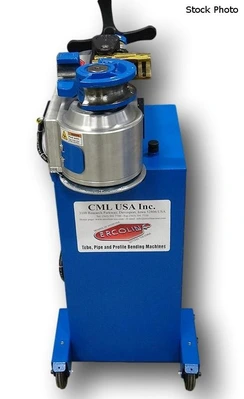

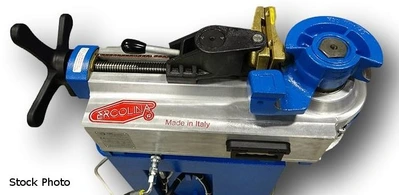

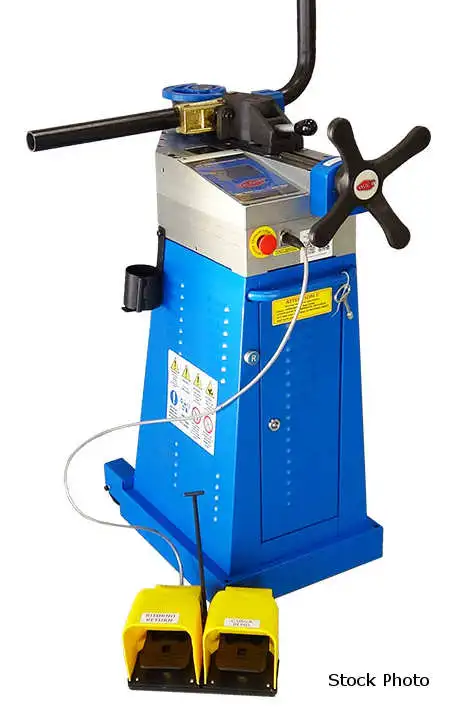

NEW ERCOLINA SB48-TC SUPERBENDER

ERCOLINA (NEW) SB48-TC SUPER BENDER ROTARY DRAW BENDING MACHINE

CAPACITIES BASED ON MILD GRADE MATERIALS
1/4" TO 2" OUTSIDE DIAMETER
1-1/2" SCH 40 PIPE CAPACITY
2D TO 8-7/8" CENTERLINE RADIUS
0-210 DEGREE BENDS
VARIABLE BENDING SPEED
TOUCH SCREEN PROGRAMMING
AVAILABLE MATERIAL POSITIONING TABLE
2 HP 50-60 HZ "BRUSHLESS" MOTOR

FEATURES
- EASY-TO-READ TOUCH SCREEN CONTROL DISPLAYS
MACHINE POSITION, STATUS, ALARM FUNCTIONS AND
ON ONE SCREEN FOR GREAT CONVENIENCE
TOUCH SCREEN INDICATED BEND ANGLE, SPRINGBACK
AND BEND SPEED FOR EACH ANGLE WITHIN THE PROGRAM
- PATENTED SWING AWAY COUNTER BEND DIE VISE OFFERS
EASY LOADING AND UNLOADING OF WORK PIECE, MONITORED
ELECTRICONICALLY FOR GREAT ACCURACY
AUTOMATICALLY MONITORS AND ADJUSTS BENDING SPEED
THROUGHOUT BEND CYCLE PROVIDING MAXIMUM TORQUE
AND PROTECTING MACHINE COMPONENTS
- QUICK-CHANGE TOOLING SYSTEM WITH MULTIPLE
RADII AVAILABLE
- RIGHT OR LEFT HAND BENDING AVAILABLE WITH
VISE ACCESSORY
- AUTOMATICALLY STOPS AT DESIRED BEND ANGLE TO END CYCLE
- UNLIMITED PROGRAM STORAGE FOR QUICK RECALL
- USE CONTROL PANEL OR FOOT PEDAL TO INITATE END AND
RETURN FUNCTIONS
- COUNTERBENDING DIE POSITION MONITORED ELECTRONICALLY FOR
ACCURACY AND REPEATABILITY
- ACCEPTS ERCOLINA A40-P TWO AXIS POSITIONING TABLE FOR
AND SEQUENTIAL BENDS
- NO HYDRAULIC COMPONENTS
- CLASSIC ERCOLINA TOP BENDER DESIGN REDUCES FLOOR SPACE
REQUIREMENT AND STORES EASILY TO SAVE SHOP FLOOR SPACE.
Power: 110 (Single)
