| Dimensions | 48 X 60 X 80 | 48 X 60 X 80 |
| Weight | 8,400 | 8,400 |

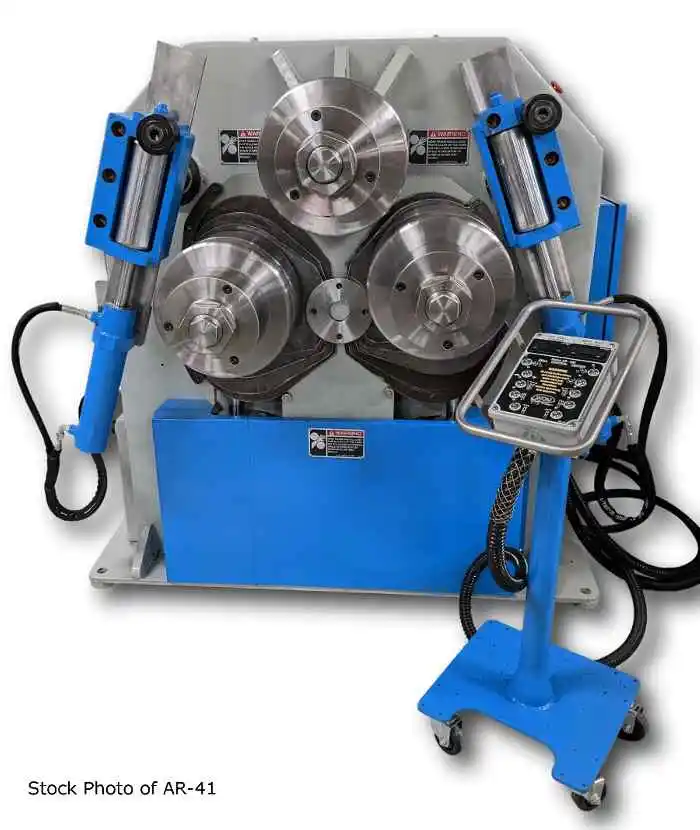

WALDEMAR (NEW) WDM AR-51 HYDRAULIC ANGLE ROLL
WITH 6-WAY POWER ADJUSTABLE GUIDE ROLLS
20 HP, 3 PHASE MOTOR
15" ROLL DIAMETER
55 TONS BENDING PRESSURE
6" MAIN SHAFT DIAMETER
0-24 FPM ROLLING SPEED
MINIMUM DIAMETER - CAPACITY
50" ANGLE LEG OUT 5" X 5" X 1/2"
46" ANGLE LEG IN 4" X 4" X 1/2"
38" FLAT ON FLAT 1-3/4" X 8"
44" FLAT ON EDGE 1" X 5"
32" SQUARE BAR 3"
60" TEE LEG IN ST5WF X 30#
50" TEE LEG OUT ST5WF X 30#
36" ROUND BAR 3-1/4"
46" SCH 40 PIPE 4"
46" SCH 80 PIPE 3-1/2"
46" SCH 120 PIPE 3-1/2"
40" SCH XXH STEEL PIPE 3"
78" ROUND TUBE 7" X 11 GA
100" SQUARE TUBE 4" X 3/16"
80" RECTANGLE TUBE 5" X 2" X 1/4"
70" CHANNEL FLANGE OUT C10 X 15.3#
70" CHANNEL FLANGE IN C10 X 15.3#
48" I-BEAM ON WEB W10 X 19"
72" I-BEAM ON FLANGE S6 X 12"
FEATURES
- AR-520 CONTROL
- 6-WAY HYDRAULIC GUIDE ROLL ADJUSTMENT
- ALLOY STEEL SHAFTS AND ARBORS
- TOTAL HYDRAULIC OPERATION
- INSTANT START-STOP-REVERSE
- 1 SET UNIVERSAL DIES, ROLLS
- ANGLE LEG IN AND OUT
- TEE BAR LEG IN AND OUT
- FLATS ON EDGE AND ON FLAT
- SQUARE AND SMALL ROUNDS
- ACCURATELY MACHINED AND HARDENED DIES
- 3 ROLL DRIVE
- ELECTRONICS TO NFPA 79 SPECIFICIATIONS
- LOW VOLTAGE CONTROL CIRCUIT 120 OR 24 VAC
- SAFETY STOP/EMERGENCY STOP MUSHROOM BUTTONS
- OVERLOAD PROTECTION
- QUIET, INTEGRATED HYDRAULIC SYSTEM
- SEALED SPHERICAL ROLLER BEARINGS @ MAIN POINTS
- NON-LUBE MINIMUM MAINTENANCE TECHNOLOGY
- HEAVY GEAR DRIVE WITH STRONG TOOTH PROFILE
OPTIONS AVAILABLE - PRICE ON REQUEST
- 10W SET PIPE OR PROFILE
- ADJUSTABLE CHANNEL BEAM
- BEAM ON FLANGE ATTACHMENT
Power: 230 (3-Phase)
