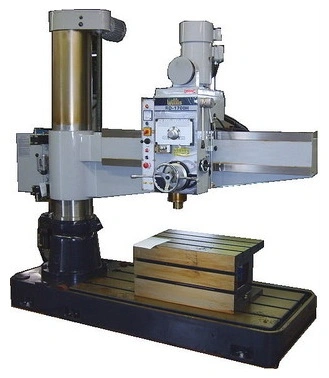

WILLIS MACHINERY (NEW) MODEL RD1700H RADIAL DRILL

2-3/8" STEEL DRILLING
2-3/4" CAST IRON DRILLING
10" SPINDLE STROKE
MT5 SPINDLE TAPER
30 - 1500 RPM SPINDLE SPEEDS - 12 SPEEDS
0.004"- 0.024" IPR SPINDLE FEEDS - 6 STEPS
11-7/8" COLUMN DIAMETER
65" SPINDLE CENTER TO COLUMN - MAXIMUM
14" SPINDLE CENTER TO COLUMN - MINIMUM
51" HORIZONTAL TRAVEL OF HEADSTOCK
48-1/2" BASE TO SPINDLE - MAXIMUM
21-1/4" BASE TO SPINDLE - MINIIMUM
51" ARM
27" VERTICAL ARM TRAVEL
36" HORIZONTAL DRILL HEAD TRAVEL
22" X 32" X 16" TABLE
7.5 HP MAIN MOTOR
2 HP ARM ELEVATION MOTOR
1/8 HP COOLANT PUMP

HARDENED GROUND STEEL GEARS RUN IN AN OIL BATH
SPINDLE QUILL MADE FROM HARDENED, GROUND ALLOY
SPINDLE RETURN TENSION ADJUSTABLE BY RETURN SPRING
DOUBLE WALL COLUMN FOR MAXIMUM RIGIDITY
POWER FEED RATES CAN BE CHANGED WHILE SPINDLE RUNS
LIMIT SWITCHES TO PREVENT OVER TRAVEL
SEPARATE MOTOR FOR RAISING ARM - SAFETY NUT
LIMIT SWITCHES PREVENT ARM OVER TRAVEL
HARDENED STEEL WEAR STRIP FOR TOP OF ARM WAYS
FLOOD COOLANT WITH SUMP IN MACHINE BASE
BOX TABLE WITH T-SLOTS ON TOP AND SIDE SURFACE
FLOURESCENT WORK LIGHT
HYDRAULIC CLAMPING FOR DRILL HEAD ARM ROTATION
TOOLBOX, TOOLS AND OPERATOR/PARTS MANUAL

ONE BOX TABLE IS STANDARD WITH EACH DRILL
- 20" X 16" X 14"
- 26" X 20" X 16"
- 32" X 22" X 16"
- TABLES HAVE SIDE CLAMPING AND GROUND SURFACES
- ADDITIONAL H BOX TABLES ARE AVAILABLE
PRICE ON REQUEST
