NEW WILLIS MACHINERY RD-1100
Overview
Specifications
| Dimensions | 79 X 39 X 88 | 79 X 39 X 88 |
|---|---|---|
| Weight | 4,630 | 4,630 |

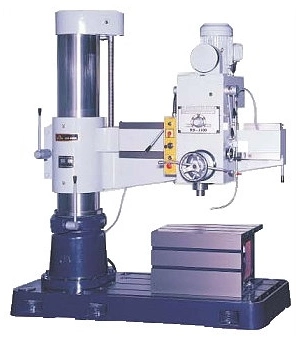

WILLIS MACHINERY (NEW) MODEL RD-1100 RADIAL DRILL
1-3/4" STEEL DRILLING
2-1/8" CAST IRON DRILLING
1" STEEL TAPPING
1-1/4" CAST IRON TAPPING
3-3/8" STEEL BORING
4-3/4" CAST IRON BORING
9-7/8" SPINDLE STROKE
MT4 SPINDLE TAPER
44 - 1500 RPM SPINDLE SPEEDS - 12 SPEEDS
0.002"- 0.006" IPR SPINDLE FEEDS - 6 STEPS
11-7/8" COLUMN DIAMETER
45" SPINDLE CENTER TO COLUMN - MAXIMUM
13" SPINDLE CENTER TO COLUMN - MINIMUM
32" HORIZONTAL TRAVEL OF HEADSTOCK
48-1/2" BASE TO SPINDLE - MAXIMUM
21-1/4" BASE TO SPINDLE - MINIIMUM
45" ARM
27" VERTICAL ARM TRAVEL
20" X 25" X 17" TABLE
5 HP MAIN MOTOR
2 HP ARM ELEVATION MOTOR
1/8 HP COOLANT PUMP
45" ARM
HARDENED GROUND STEEL GEARS RUN IN AN OIL BATH
SPINDLE QUILL MADE FROM HARDENED, GROUND ALLOY
SPINDLE RETURN TENSION ADJUSTABLE BY RETURN SPRING
DOUBLE WALL COLUMN FOR MAXIMUM RIGIDITY
POWER FEED RATES CAN BE CHANGED WHILE SPINDLE RUNS
LIMIT SWITCHES TO PREVENT OVER TRAVEL
SEPARATE MOTOR FOR RAISING ARM - SAFETY NUT
LIMIT SWITCHES PREVENT ARM OVER TRAVEL
HARDENED STEEL WEAR STRIP FOR TOP OF ARM WAYS
FLOOD COOLANT WITH SUMP IN MACHINE BASE
BOX TABLE WITH T-SLOTS ON TOP AND SIDE SURFACE
FLOURESCENT WORK LIGHT
TOOLBOX, TOOLS AND OPERATOR/PARTS MANUAL
ONE BOX TABLE IS STANDARD WITH EACH DRILL
- 20" X 16" X 14"
- 26" X 20" X 16"
- 32" X 22" X 16"
- TABLES HAVE SIDE CLAMPING AND GROUND SURFACES
- ADDITIONAL H BOX TABLES ARE AVAILABE
PRICE ON REQUEST
