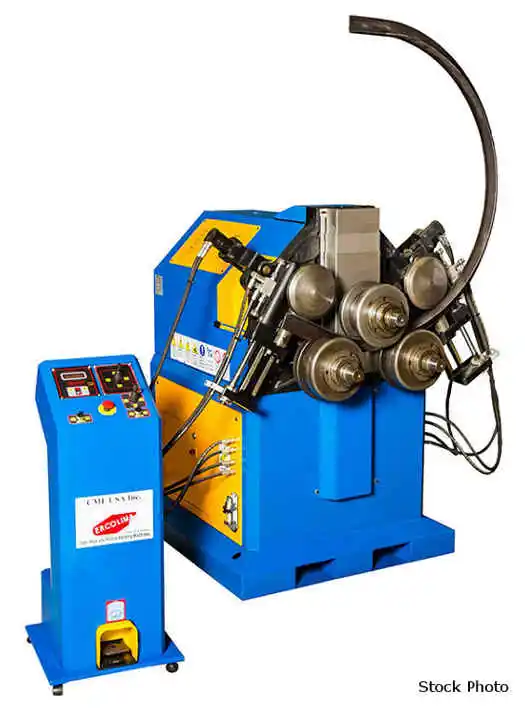

NEW ERCOLINA CE70H3-RLI

ERCOLINA (NEW) MODEL CE70HE-RLI ANGLE ROLL WITH HYDRAULIC 3-AXIS TWIST CORRECTORS

2-3/4" ROLL SHAFT DIAMETER
16 TON HYDRAULIC CENTER ROLL POSITIONING
3" SCH 40 PIPE CAPACITY
3" X 3" X 3/8" ANGLE CAPACITY

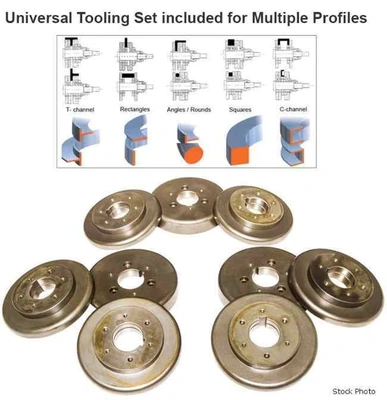

9.5" OD UNIVERSAL TOOLING
NC TOUCHPAD PROGRAMMING
8 PROGRAMS
8 RPM SHAFT SPEED
15" BETWEEN SHAFTS
35 CM3 SECTION MODULUS
220 OR 440 VOLTS, 3 PHASE

FEATURES
- FORGED ROLL SHAFTS PRECISION GROUND FITTED
FOR MAXIMUM PERFORMANCE MINIMAL DEFLECTION
- HEAVY-DUTY STRUCTURE AND RIGID COMPONENTS FOR HIGH SECTION MODULUS RATING
- REINFORCED ENGINEERED MAINFRAME DESIGN

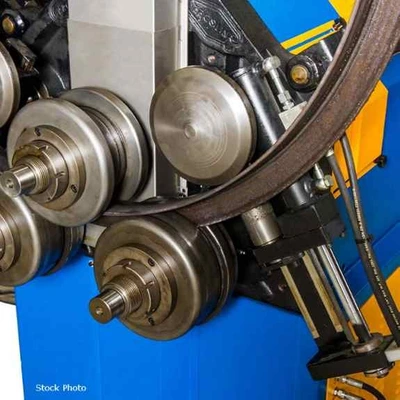

- 3-AXIS HYDRAULIC ANTI-TWIST SYSTEM FOR ANGLE IRON "LEG-IN" APPLICATION
- SIMULTANEOUS DOWNFEED AND ROLL MOVEMENT MINIZES DEFORMINATION

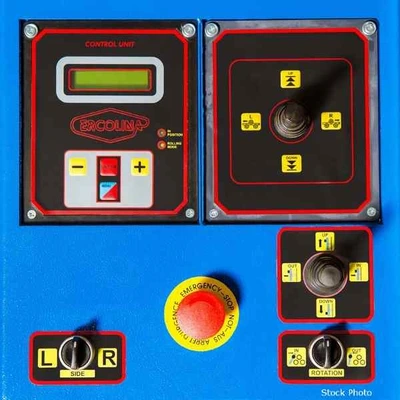

- PROGRAMMABLE TOUCHPAD CONTROLS WITH DIGITAL CENTER ROLL POSITIONING DISPLAY
- MEMORY STORAGE WITH 8 PROGRAMS
- REMOTE CONTROL PENDANT WITH LOW VOLTAGE CONTROLS AND FOOT PEDAL SWITCH
- THREADED ROLL SHAFTS WITH MICROMETRIC FLANGE ADJUSTMENT HELPS ELIMINATE SPACER USAGE
- INLINE DIRECT DRIVE ROLL SHAFT SYSTEM WITH MOTOR AND BRAKE ON EACH SHAFT

ALL CAPACITIES ARE BASED ON MILD GRADE MATERIALS
- HEAVY WALL AND HIGH TENSILE REDUCE CAPACITY

OPTIONS AVAILABLE - PRICE ON REQUEST
- PIPE AND TUBE TOOLING
- MODULAR TOOLING SET
- LARGE SPIRAL ACCESSORY
- RADIUS AND DEGREE MEASURING KIT
- SPRAY LUBRICANT
Power: 220/440 (3-Phase)
