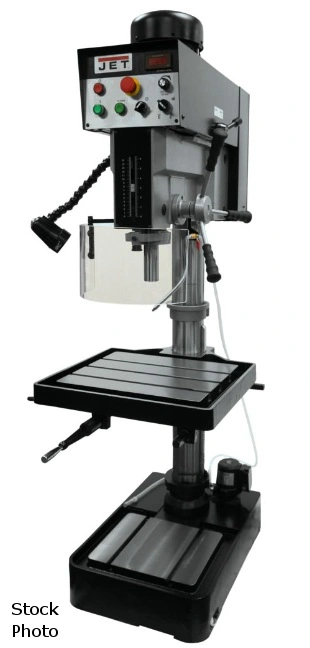

NEW JET JDP-20EVST-230

JET (NEW) MODEL JDP-20EVST-230V ELECTRONIC
VARIABLE SPEED DRILL PRESS WITH TAPPING

20" DRILLS TO CENTER OF CIRCLE
1-1/2" CAST IRON DRILLING CAPACITY
1-3/8" MILD STEEL DRILLING CAPACITY
7/8" CAST IRON TAPPING CAPACITY
3/4" MILD STEEL TAPPING CAPACITY
10-7/16" DISTANCE FROM SPINDLE TO COLUMN
65 - 2000 RPM SPINDLE SPEEDS
4-1/2" COLUMN DIAMETER
MT-3 SPINDLE TAPER
6" SPINDLE TRAVEL
44-1/2" FROM SPINDLE TO BASE
30-1/4" FROM SPINDLE TO TABLE
22" X 18-3/4" TABLE
20" TABLE TRAVEL
THREE 5/8" T-SLOTS
7-7/16" T-SLOT CENTERS
154 LB WORK TABLE WEIGHT CAPACITY
27" X 19" BASE
TWO 5/8" BASE SLOTS
2 HP MOTOR, 230 VOLT, 3 PHASE

STANDARD FEATURES
- HEAVY-DUTY STEEL COLUMN
- HEAVY-DUTY CASTED HEAD
- LARGE PRECISION GROUND T-SLOT PRODUCTION TABLE
- LATEST AC INVERTER VARIABLE SPEED TECHNOLOGY
- CSA COOLANT SYSTEM
- SPINDLE SUPPORTED BY HIGH QUALITY BALL BEARINGS
- CSA/CUS CERTIFIED
- LED MACHINE LAMP
- SPINDLE GUARD
- SPINDLE SUPPORTED BY HIGH QUALITY BALL BEARINGS
- HIGH TORQUE AT ALL SPEEDS - FORWARD AND REVERSE
- CONTINUOUS SPEED ADJUSTMENT WHILE IN OPERATION
- FRONT MOUNTED LED SPINDLE RPM READOUT
- FORWARD AND REVERSE FOR TAPPING
- FRONT-MOUNTED POSITIVE CONTROL DEPTH STOP
- LARGE HAND GRIPS
Power: 230 (3-Phase)
