| Dimensions | 38 X 48 X 42 | 38 X 48 X 42 |
| Weight | 2,000 | 2,000 |

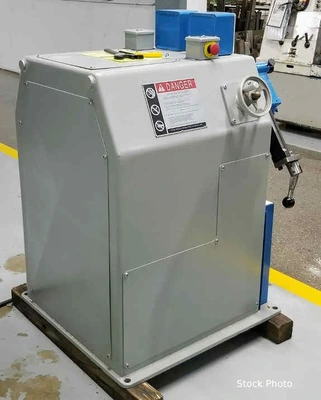

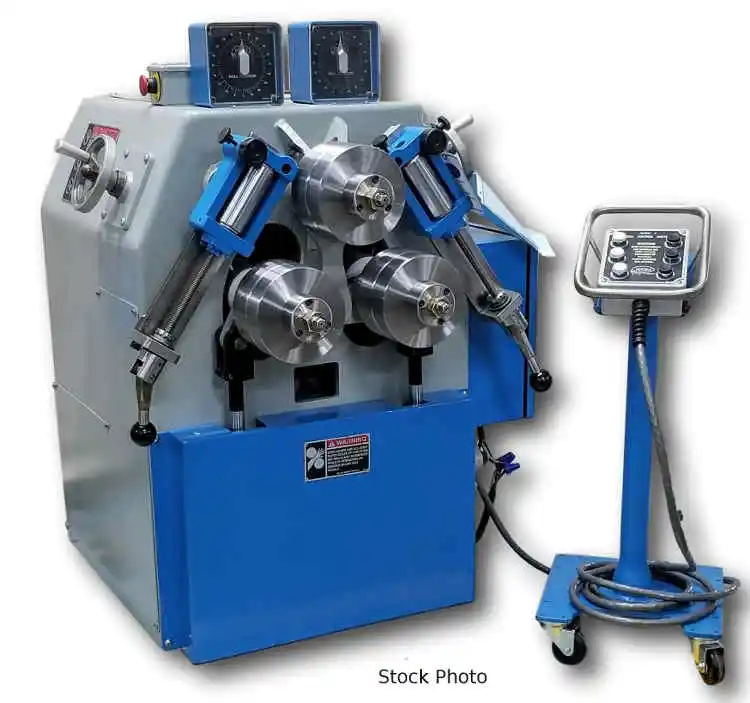

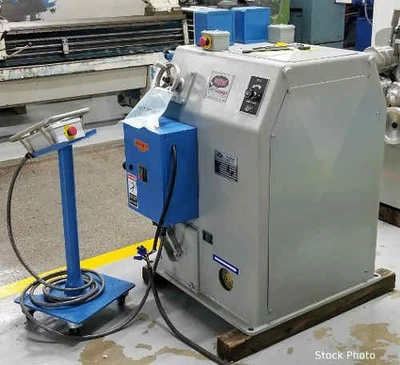

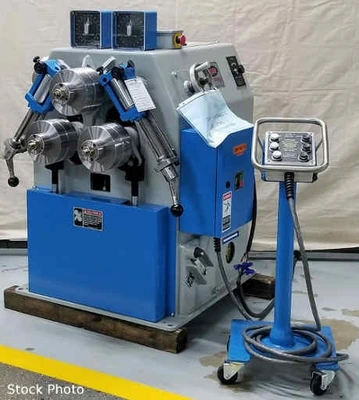

WALDEMAR (NEW) MODEL WDM AR-22 HYD. ANGLE ROLL
5 HP, 3 PHASE TECF MOTOR
7" ROLLING DIAMETER
15 TONS BENDING PRESSURE
1.88" MAIN SHAFT DIAMETER
0-22 FPM ROLLING SPEED
MINIMUM DIAMETER - CAPACITY
26" ANGLE LEG OUT 2" X 2" X 1/4"
22" ANGLE LEG IN 2" X 2" X 3/16"
22" FLAT ON FLAT 3/4" X 3-1/2" X 6"
20" FLAT ON EDGE 3/8" X 2-1/4"
16" SQUARE BAR 1-1/4"
20" TEE LEG IN 2" X 1-1/2" X 1/4"
22" TEE LEG OUT 2" X 2" X 1/4"
14" ROUND BAR 1-3/8"
16" SCH 40 PIPE 1-1/2"
16" SCH 80 PIPE 1-1/4"
16" SCH 120 PIPE 1-1/4"
16" SCH XXH STEEL PIPE 1"
24" ROUND TUBE 2-3/8" X 14 GA
22" SQUARE TUBE 1-3/4 X 10 GA
18" RECTANGLE TUBE 2" X 1" X 11 GA
18" CHANNEL FLANGE OUT C3 X 4.1#
22" CHANNEL FLANGE IN C3 X 4.1#
FEATURES

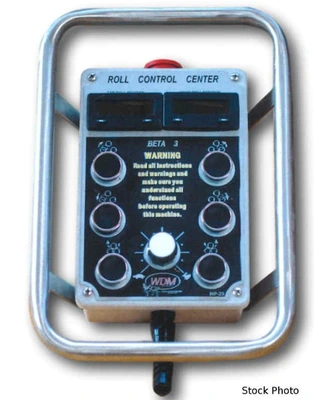

- BETA 3 CONTROL
- ALLOY STEEL SHAFTS AND ARBORS
- TOTAL HYDRAULIC OPERATION
- INSTANT START-STOP-REVERSE
- 1 SET UNIVERSAL DIES, ROLLS
ANGLE LEG IN AND OUT
TEE BAR LEG IN AND OUT
FLATS ON EDGE AND ON FLAT
SQUARE AND SMALL ROUNDS
- ACCURATELY MACHINED AND HARDENED DIES
- 3 ROLL DRIVE
- ELECTRONICS TO NFPA 79 SPECIFICIATIONS
- LOW VOLTAGE CONTROL CIRCUIT 120 OR 24 VAC
- SAFETY STOP/EMERGENCY STOP MUSHROOM BUTTONS
- OVERLOAD PROTECTION
- QUIET, INTEGRATED HYDRAULIC SYSTEM
- SEALED SPHERICAL ROLLER BEARINGS @ MAIN POINTS
- NON-LUBE MINIMUM MAINTENANCE TECHNOLOGY
- HEAVY GEAR DRIVE WITH STRONG TOOTH PROFILE
OPTIONS AVAILABLE - PRICE ON REQUEST
- 5W SET PIPE OR PROFILE
- ADJUSTABLE CHANNEL BEAM
- 4-WAY HYDRAULIC GUIDE ROLL ADJUSTMENT
Power: 230
