| Dimensions | 48 X 50 X 58 | 48 X 50 X 58 |
| Weight | 6,700 | 6,700 |

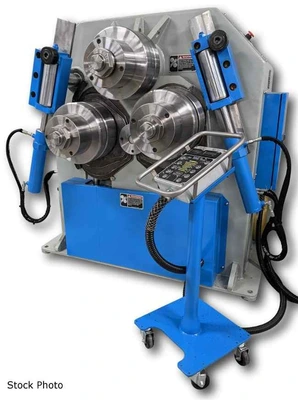

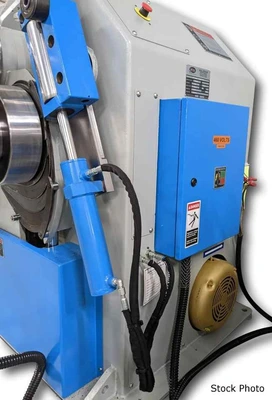

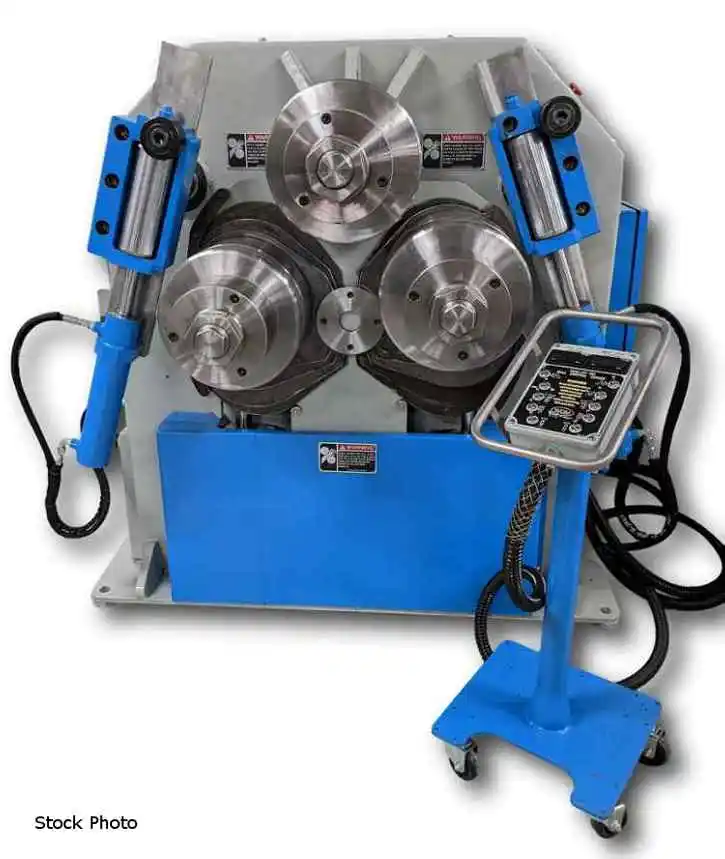

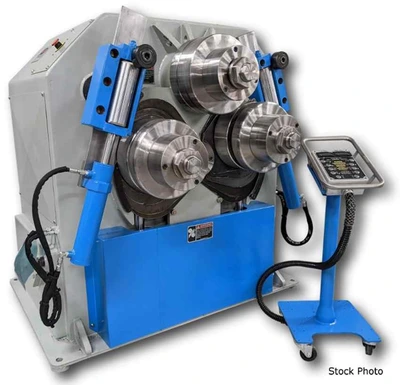

WALDEMAR (NEW) MODEL WDM AR-41 HYD. ANGLE ROLL
WITH 4-WAY POWER ADJUSTABLE GUIDE ROLLS
15 HP, 3 PHASE MOTOR
12-1/2" ROLL DIAMETER
40 TONS BENDING PRESSURE
5" MAIN SHAFT DIAMETER
0-22 FPM ROLLING SPEED
MINIMUM DIAMETER - CAPACITY
42" ANGLE LEG OUT 4" X 4" X 1/2"
36" ANGLE LEG IN 4" X 4" X 3/8"
22" FLAT ON FLAT 1-1/4" X 6"
40" FLAT ON EDGE 7/8" X 4"
34" SQUARE BAR 2-1/2"
40" TEE LEG IN T4 X 13.5"
40" TEE LEG OUT WT X 12 LBS
30" ROUND BAR 3"
34" SCH 40 PIPE 3"
36" SCH 80 PIPE 3"
30" SCH 120 PIPE 2-1/2"
30" SCH XXH STEEL PIPE 2-1/2"
55" ROUND TUBE 5" X 12 GA
60" SQUARE TUBE 3" X 3/16"
52" RECTANGLE TUBE 4" X 1.5" X 11 GA
36" CHANNEL FLANGE OUT C7 X 14.75"
36" CHANNEL FLANGE IN C7 X 14.75"
40" I-BEAM ON WEB W4 X 13"
48" I-BEAM ON FLANGE S4 X 7.7"
FEATURES

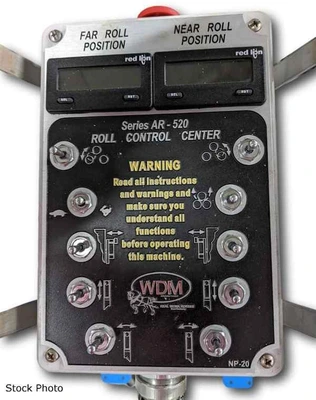

- AR-520 CONTROL
- 6-WAY HYDRAULIC GUIDE ROLL ADJUSTMENT
- ALLOY STEEL SHAFTS AND ARBORS
- TOTAL HYDRAULIC OPERATION
- INSTANT START-STOP-REVERSE
- 1 SET UNIVERSAL DIES, ROLLS
ANGLE LEG IN AND OUT
TEE BAR LEG IN AND OUT
FLATS ON EDGE AND ON FLAT
SQUARE AND SMALL ROUNDS
- ACCURATELY MACHINED AND HARDENED DIES
- 3-ROLL DRIVE
- ELECTRONICS TO NFPA 79 SPECIFICIATION
- LOW VOLTAGE CONTROL CIRCUIT 120 OR 24 VAC
- SAFETY STOP/EMERGENCY STOP MUSHROOM BUTTONS
- OVERLOAD PROTECTION

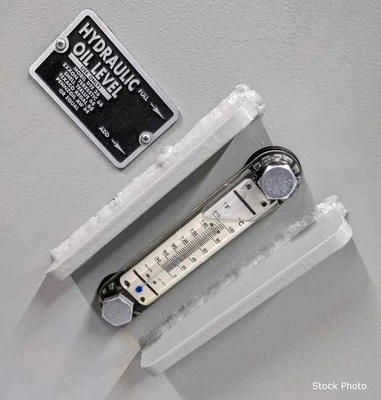

- QUIET, INTEGRATED HYDRAULIC SYSTEM
- SEALED SPHERICAL ROLLER BEARINGS @ MAIN POINTS
- NON-LUBE MINIMUM MAINTENANCE TECHNOLOGY
- HEAVY GEAR DRIVE WITH STRONG TOOTH PROFILE
OPTIONS AVAILABLE - PRICE ON REQUEST
- 9W SET PIPE OR PROFILE
- ADJUSTABLE CHANNEL BEAM
- BEAM ON FLANGE ATTACHMENT
Power: 230 (3-Phase)
