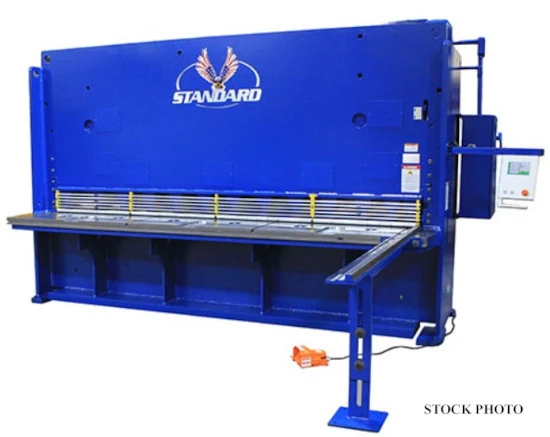

NEW STANDARD AS500-10

STANDARD (NEW) MODEL AS500-10 SQUARING SHEAR

1/2" X 10' CAPACITY MILD STEEL
3/8" X 10' CAPACITY STAINLESS STEEL
90 TON SHEARING
36" BACKGAUGE TRAVEL
11 HOLD DOWNS
99 TONS
3" BORE

SIMPLE GO-TO FUNCTION
PLC TOUCH SCREEN CONTROL
- 50 JOBS WITH 5 CUTS PER JOB
- PROGRAMMABLE X (BACKSTOP) RETRACT
- MANUAL AND PROGRAMMABLE FUNCTIONS
36" HEAVY-DUTY BACKGAUGE
- +/- 0.005 BACKSTOP REPEATABILITY
- MANUAL EASY SWING-AWAY BACKSTOP
INF. VARIABLE QUICK-CHANGE BLADE GAP ADJUSTMENT
INF. VARIABLE SIDE ADJUSTABLE MANUAL SYSTEM
HEAVY-DUTY PRECISION-MACHINED TABLE
- MULTIPLE LARGE HAND SLOTS FOR PART HANDLING
- T-SLOTS FOR SETTING STOPS AND FRONT GAUGING
- 4' SQUARING ARM WITH PRECISION SCALE
2' OFF TABLE ON RIGHT SIDE
