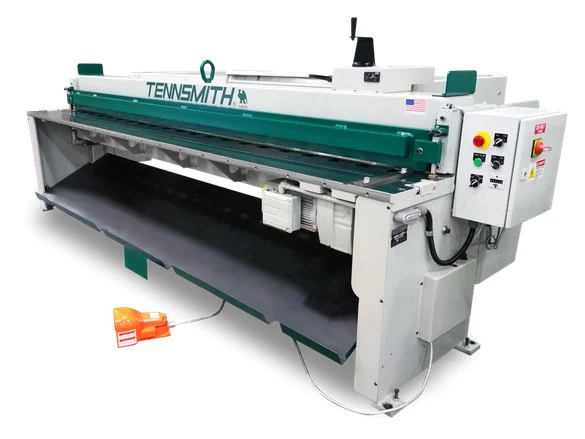

NEW TENNSMITH MSE1016-F

TENNSMITH (NEW) MODEL MSE1016-F MECHANICAL SHEAR

MAXIMUM SHEARING CAPACITY
- 16 GAUGE MILD STEEL
- 22 GAUGE STAINLESS STEEL
- 121" MAXIMUM CUTTING LENGTH
- 30" BACK GAUGE RANGE
- 35 STROKES PER MINUTE
- SOLID BAR HOLDDOWNS
- 230/460 VOLT, 3 PHASE, 60 HZ, 3 HP MOTOR

PACKAGES INCLUDED
F - FRONT RETURN SHEET SUPPORT SYSTEM
- PERFORMANCE
5' SQUARING ARM
2 FRONT SUPPORT ARMS
AIR-OPERATED SHEET SUPPORT SYSTEM
PARTS COUNTER

STANDARD FEATURES
- 30" FRONT-OPERATED 2X-F BACK GAUGE SYSTEM
- 4-EDGE, HIGH-CARBON, HIGH-CHROME BLADES
- SELF-LEVELING HOLD DOWN BAR W/NEOPRENE INSERT
- SINGLE, CONTINUOUS AND JOG STROKE CYCLES
- MOTOR REVERSE SWITCH
- PRECISION-MACHINED TABLE
- DUAL INCH/METRIC INLAID BED SCALES
- NON-METALLIC GIBS

OPTIONS AVAILABLE - PRICE ON REQUEST
- SQUARING ARM, FIVE FOOT W/DUAL INLAID INCH/METRIC SCALE
- SQUARING ARM, TEN FOOT W/DUAL INLAID INCH/METRIC SCALE
- ADDITIONAL FLIP-UP STOPS FOR SQUARING ARM (EACH)
- FRONT SUPPORT ARMS, PAIR
- PROTRACTOR ATTACHMENT
- DIGITAL READOUT FOR 2X BACK-GAUGE SYSTEM (DRO)
- STROKE COUNTER - ELECTRO-MECHANICAL
REPLACEMENT BLADES
- MSE 1016, HIGH CARBON HIGH CHROME, 4 EDGE PER SET
- SINGLE PHASE 220V ELECTRICS
- MSE SERIES WIRED FOR CSA CANADIAN ELECTRIC STANDARD

**3 YEAR FACTORY WARRANTY
Power: 230/460 (3-Phase)
