| Dimensions | 99 X 79 X 90 | 99 X 79 X 90 |
| Weight | 3,400 | 3,400 |

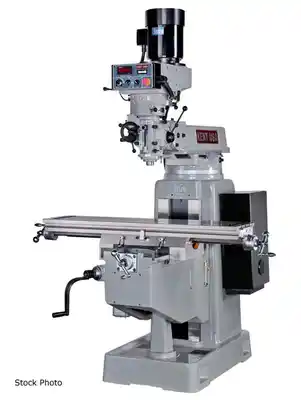

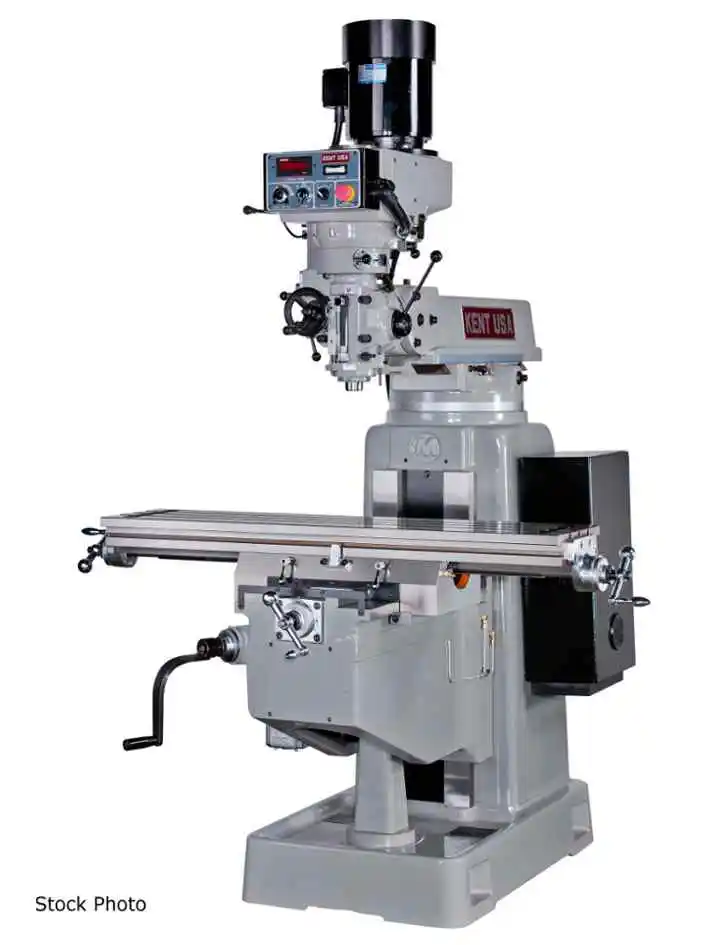

KENT USA (NEW) MODEL KTM-4VKF-E MILLING MACHINE
12" x 50" TABLE
33" TABLE TRAVEL (X AXIS)
17.5" SADDLE TRAVEL (Y AXIS)
17.515500" KNEE TRAVEL (Z AXIS)
5.5" QUILL TRAVEL
22" RAM TRAVEL
50-550-4500 RPM SPINDLE SPEEDS (2-RANGE, HI/LO)
R-8 SPINDLE TAPER
3.375" QUILL DIAMETER
0.0015", 0.003", 0.006" IN/REV QUILL FEED RATE
0.75" MANUAL DRILLING CAPACITY
0.37" POWER DRILLING CAPACITY
6" DIAMETER BORING CAPACITY
2.0 CUBIC INCH/MINUTE MILLING CAPACITY
850 LBS (CENTERED) MAXIMUM WORK LOAD
5" - 27" SPINDLE CENTER TO COLUMN
3 HP, 220 VOLT 3 PHASE, 60 HZ, 10 AMP
FEATURES
- AC-FREQUENCY DRIVE HEAD WITH DIGITAL RPM
DISPLAY AND ANALOG LOAD METER
- AUTOMATIC SPINDLE DIRECTION REVERSAL WHEN
SWITCHING BETWEEN HIGH AND LOW SPEED GEAR RANGES
- AUTOMATIC CENTRALIZED LUBICATION SYSTEM WITH
METER CHECK-VALVES
- 1 PHASE OR 3-PHASE POWER WITHOUT CONVERTER
- HARDENED AND GROUND (HRC-52) TABLE SURFACE AND
ALL SLIDE WAYS
- SOLID BOX WAYS ON SADDLE AND COLUMN
OPTIONAL AVAILABLE - PRICE ON REQUEST
- DIGITAL READOUT SYSTEM
- TABLE (X-AXIS) POWER FEED
- SADDEL (Y-AXIS) POWER FEED
- KNEE (Z-AXIS) POWER FEED
- AIR POWER DRAWBAR
- FLOOD COOLANT SYSTEM
- CHIP PAN
- RISER BLOCK
- RUSTLICK COOLANT
- ANGLE-LOCK VISE
- 440 VOLT (REQUIRES 5A)
