NEW STANDARD AS250-12

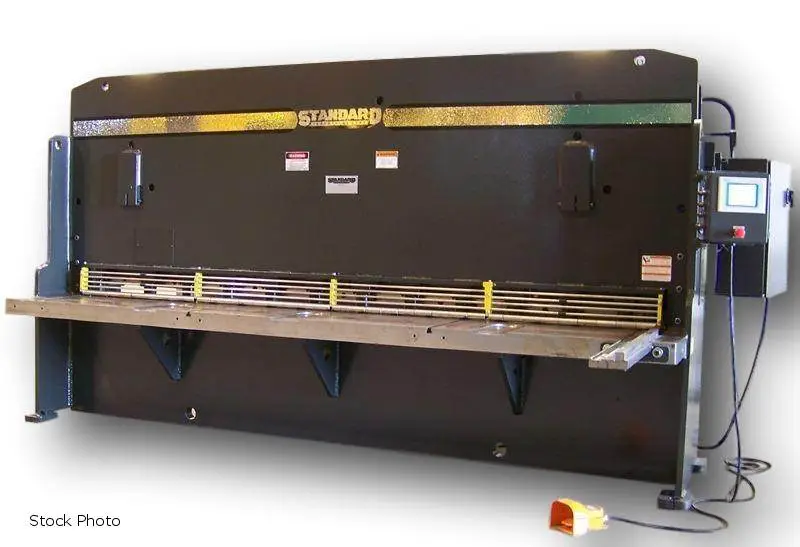

STANDARD (NEW) MODEL AS250-12 SQUARING SHEAR

1/4" X 12' CAPACITY MILD STEEL
10 GA X 12' CAPACITY STAINLESS STEEL
36 TON SHEARING
36" BACKGAUGE TRAVEL
13 HOLD DOWNS
36 TONS
2" BORE

FEATURES
- SIMPLE GO-TO FUNCTION
- PLC TOUCH SCREEN CONTROL
50 JOBS WITH 5 CUTS PER JOB
PROGRAMMABLE X (BACKSTOP) RETRACT
MANUAL AND PROGRAMMABLE FUNCTIONS
- 36" HEAVY-DUTY BACKGAUGE
+/- 0.005 BACKSTOP REPEATABILITY
MANUAL EASY SWING-AWAY BACKSTOP
- INF. VARIABLE QUICK-CHANGE BLADE GAP ADJUSTMENT
- INF. VARIABLE SIDE ADJUSTABLE MANUAL SYSTEM
- HEAVY-DUTY PRECISION-MACHINED TABLE
MULTIPLE LARGE HAND SLOTS FOR PART HANDLING
T-SLOTS FOR SETTING STOPS AND FRONT GAUGING
4' SQUARING ARM WITH PRECISION SCALE
2' OFF TABLE ON RIGHT SIDE
Power: 230-460
