| Dimensions | 154 X 48 X 60 | 154 X 48 X 60 |
| Weight | 7,100 | 7,100 |

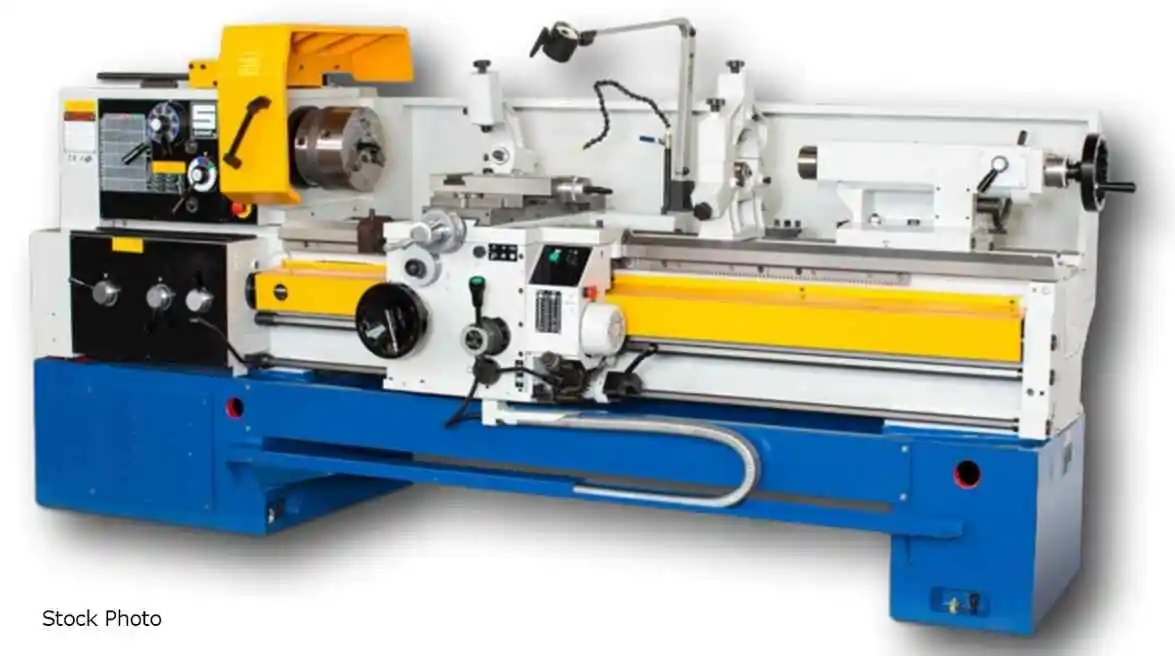

SUMMIT (NEW) MODEL 16-3-80 ENGINE LATHE
18" SWING OVER BED
9-1/2" SWING OVER CROSS SLIDE
26" SWING OVER GAP
15" LENGTH OF GAP
8-3/8" IN FRONT OF FACE PLATE
10 HP MAIN MOTOR
1/4 HP COOLANT PUMP

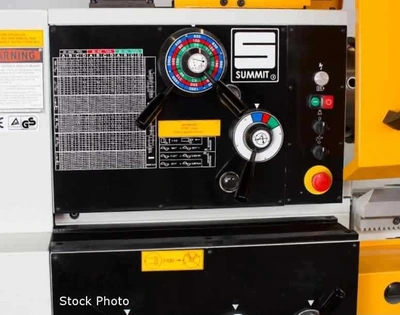

HEADSTOCK
- 24 20-2000 PRM SPINDLE SPEEDS
- 3" HOLE THROUGH SPINDLE
QUICK-CHANGE GEARBOX
- 64 THREADS PER INCH 1/4 - 60
- 64 METRIC THREADS 0.5 - 120
- 120 LONGITUINDAL FEEDS 0.00185-0.4447
- 120 CROSS FEEDS 0.0007 - 0.2224
- 120 METRIC FEEDS .039 - 12
STANDARD EQUIPMENT
- HEAVY RIBBED CAST BED AND BASE
- HARDENED AND PRECISION GROUND WAYS

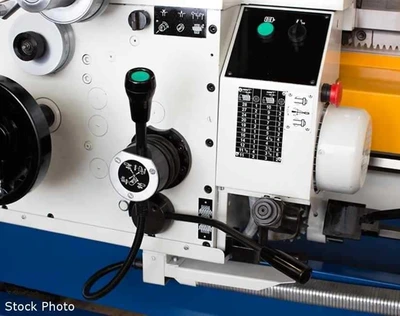

- FEED REVERSING AT THE APRON
- FORCED LUBRICATION TO THE HEADSTOCK,
CARRIAGE AND BEDWAYS
- D1-8 CAMLOCK SPINDLE NOSE
- CROSSFEED AND THREADING SAFETY INTERLOCK
- INCH-METRIC THREADING
- REMOVABLE GAP
- PULLOUT TYPE CLIP PAN
- DUAL HEADSTOCK AND APRON SPINDLE CONTROL LEVERS
- FULL-LENGTH SPLASH GUARD
- RAPID TRAVERSE ON CARRIAGE (4-WAY JOYSTICK)
- DIAMETRAL AND MODULE THREAD CAPABILITY
ACCESSORIES INCLUDED
- THREAD DIAL

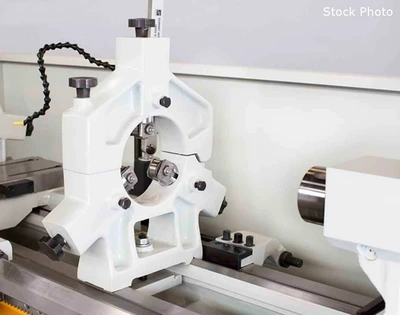

- STEADY REST
- FOLLOW REST
- COOLANT SYSTEM
- CARRIAGE STOP
- TAPER ATTACHMENT

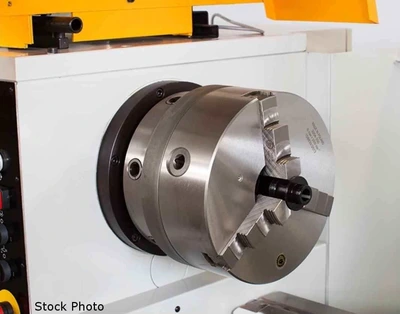

- 10" 3-JAW CHUCK
- WORK LIGHT
- SERVICE WRENCHES
OPTION AVAILABLE - PRICE ON REQUEST
- 12" STEEL BODY 3 JAW PERCISION CHUCK WITH
2-PIECE REVERSIBLE JAWS IN LIEU OF STANDARD
- QUICK-CHANGE TOOL POST WITH HOLDERS
- DIGITAL READOUT
- OTHER OPTIONS AVAILABLE
Power: 220/440 (3-Phase)
