| Dimensions | 114 X 48 X 60 | 114 X 48 X 60 |
| Weight | 6,200 | 6,200 |

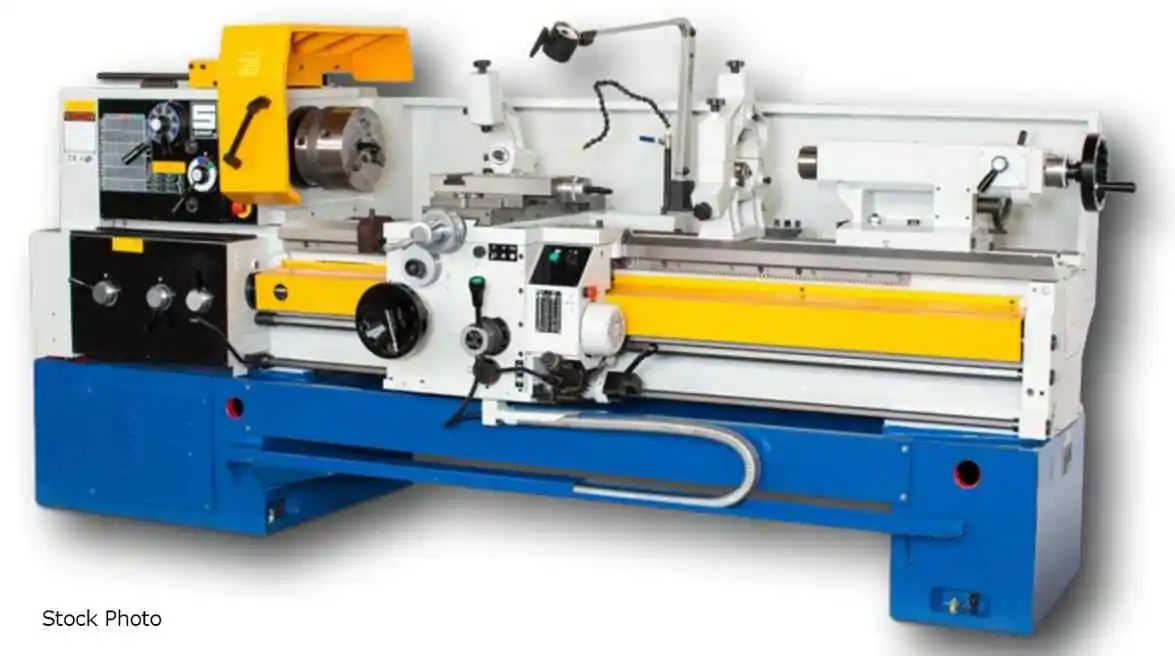

SUMMIT (NEW) MODEL 16-3-40 ENGINE LATHE
18" SWING OVER BED
9-1/2" SWING OVER CROSS SLIDE
26" SWING OVER GAP
15" LENGTH OF GAP
8-3/8" IN FRONT OF FACE PLATE
WORKPIECE WEIGHTS
- 350 LBS AT THE HEADSTOCK
- LBS BETWEEN CHUCK AND TAILSTOCK
- 3,000 LBS BETWEEN CHUCK AND TAILSTOCK
W/ STEADY REST

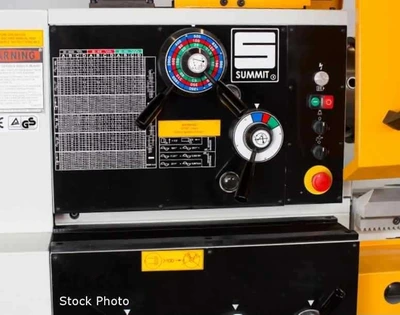

HEADSTOCK
- 3" HOLE THROUGH SPINDLE
- 21 SPINDLE SPEEDS 20-2000 RPM
- D1-8 CAMLOCK SPINDLE NOSE
- #6 MT TAPER HEADSTOCK CENTER
QUICK CHANGE GEARBOX
- 64 THREADS PER INCH .25 - 60
- 64 METRIC THREADS 0.5 - 120
- 64 MODULE THREADS RANGE .125"-30"
- DIAMETRICAL PITCH RANGE 1-240
- 124 LONGITUINDAL FEEDS 0.00145-0.44474
- 56 CROSS FEEDS 0.0007 - 0.22237
- 2" LEADSCREW DIAMETER RANGE (2 TPI)
- 1" FEED ROD DIAMETER

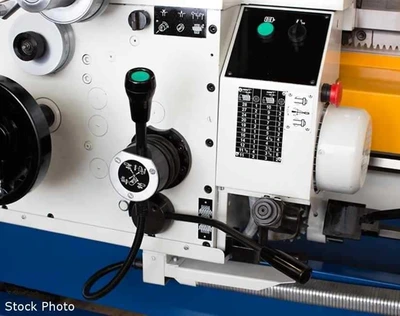

CARRIAGE AND APRON
- 12 1/2" CROSS SLIDE TRAVEL
- 5 3/8" COMPOUND REST TRAVEL
- .020 GRADUATION OF APRON HANDWHEEL
- .002 (DIR READ) GRADUATION OF CROSS SLIDE
HANDWHEEL
TAILSTOCK
- 9 1/2" TRAVEL OF SPINDLE BARREL
- 3 1/2" DIAMETER OF SPINDLE BARREL
- #5 MT TAPER OF CENTER
- 1:1, 4:1 TWO SPEED
BED
- 15 3/4" WIDTH OF BED
- 16 7/8" DEPTH OF BED
- 42-48 (ROCKWELL C) HARDNESS OF BED
TAPER ATTACHMENT
- +/- 10 DEGREES OF TAPER
- 15 3/4" MAX TURNINNG LENGTH PER SETTING
10 HP MAIN MOTOR
1/4 HP COOLANT PUMP
STANDARD EQUIPMENT
- HEAVY RIBBED CAST BED AND BASE
- HARDENED AND PRECISION GROUND WAYS
- FEED REVERSING AT THE APRON
- FORCED LUBE TO HEADSTOCK, CARRIAGE AND BEDWAYS
- D1-8 CAMLOCK SPINDLE NOSE
- CROSSFEED AND THREADING SAFETY INTERLOCK
- INCH-METRIC THREADING
- REMOVEABLE GAP
- PULLOUT TYPE CHIP PAN
- DUAL HEADSTOCK AND APRON SPINDLE CONTROL LEVERS
- FULL-LENGTH SPLASH GUARD
- RAPID TRAVERSE ON CARRIAGE (4-WAY JOYSTICK)
- DIAMETRAL AND MODULE THREAD CAPABILITY
INCLUDED ACCESORIES
- THREAD DIAL

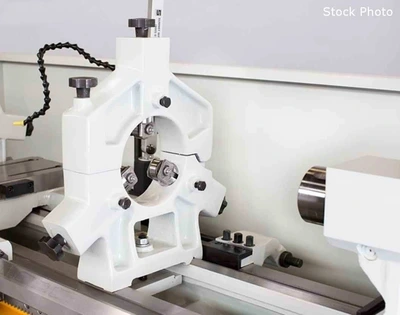

- STEADY REST
- FOLLOW REST
- COOLANT SYSTEM
- CARRIAGE STOP
- TAPER ATTACHMENT

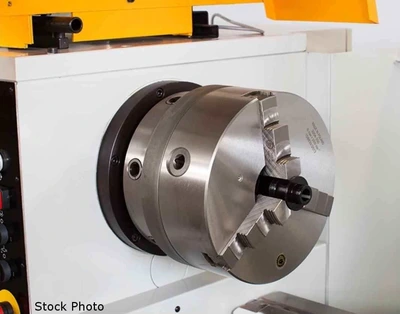

- 10" 3-JAW CHUCK
- WORK LIGHT
- SERVICE WRENCHES
OPTIONS AVAILABLE - PRICE ON REQUEST
- 12" STEEL BODY 3 JAW PRECISION CHUCK WITH
2-PIECE REVERSIBLE JAWS IN LIEU OF STANDARD
- QUICK-CHANGE TOOL POST WITH HOLDERS
- DIGITAL READOUT
Power: 220/440 (3-Phase)
