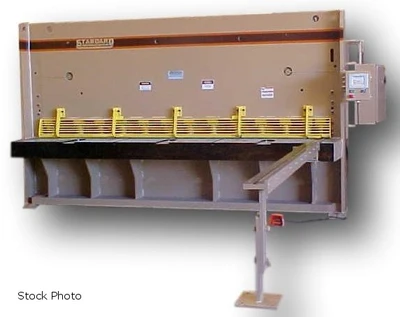

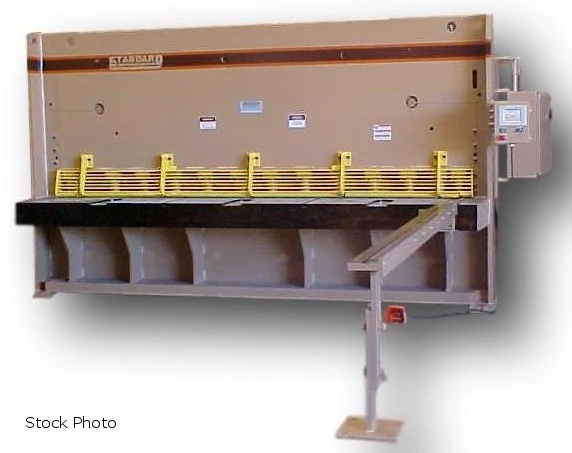

NEW STANDARD AS500-12

STANDARD (NEW) MODEL AS500-10 SQUARING SHEAR

1/2" X 12' CAPACITY MILD STEEL
3/8" X 12' CAPACITY STAINLESS STEEL
90 TON SHEARING
0.375" PER FOOT RAKE
36" BACKGAUGE TRAVEL
13 HOLD DOWN CYLINDERS
- 117 TONS OF HOLD DOWN FORCE
- 3" BORE
1" X 4" X 148" BLADE
8 SPM FOR FULL WIDTH CUT
24 SPM FOR 12" WIDE CUT
99 IPM RAM SPEED - DOWN
179 IPM RAM SPEED - UP
40 HP

FEATURES
- PRECISION GUILLOTINE DRIVE
- CYBLEC SHEAR CONTROL
200 JOB PROGRAMMABILITY
X RETRACT
PROGRAMMABLE DEPTHS
- 36" HEAVY-DUTY BACKGAUGE
MANUAL SWING-AWAY BACKSTOP
- AUTOMATIC BLADE POSITIONING WITH INFINITELY
VARIABLE QUICK-CHANGE BLADE GAP ADJUSTMENT
- 80,000 PSI
- HEAVY-DUTY BALL TRANSFERS IN TABLE
- 4' SQUARING ARM WITH SCALE
- (3) HAND SLOTS IN THE TABLE
- (2) T-SLOTS IN SHEAR TABLE
- COMPONENTS AVAILABLE FROM LOCAL SUPPLIERS
- 5-YEAR PARTS WARRANTY
- 5-YEAR LIMITED ON-SITE LABOR WARRANTY
- LIFETIME TELEPHONE SUPPORT AT NO CHARGE

OPTIONS AVAILABLE - PRICE ON REQUEST
- 4', 8' AND 12' SQUARING ARMS
- ADDITIONAL T-SLOTS
- ADDITIONAL HAND SLOTS
- 2', 3' AND 4' SUPPORT ARMS
- 48" TRAVEL BACKGAUGE (IN LIEU OF 36")
- POWER SWING-AWAY BACKGAUGE WITH 48" TRAVEL
- AUTOMATIC LUBRICATION SYSTEM
- POWER RAKE ADJUSTMENT
- LOW END OF RAKE ON LEFT SIDE (INSTEAD OF RIGHT)
- HIGH-CARBON, HI-CHROME BLADES
(IN LIEU OF STANDARD BLADES)
- HOLD-DOWN CYLINDERS WITH IMPACT PADS
- EXTRA HOLD-DOWN CYLINDER FOR OPPOSITE SIDE
- INDEPENDENT HOLD-DOWN ACTUATION
- CNC SQUARE GAUGE / FRONT GAUGE SYSTEMS
- SHEET SUPPORT SYSTEMS
- CONVEYORS
- STACKERS
- OIL COOLER
- HIGH SPEED SYSTEMS
- SAFETY SYSTEMS
- COMPLIANCE OPTIONS
- EXTENDED WARRANTY SERVICE
- START UP / TRAINING / MAINTENANCE SERVICE
- PAINT COLOR
