| Dimensions | 89 X 81 X 72 | 89 X 81 X 72 |
| Weight | 3,500 | 3,500 |

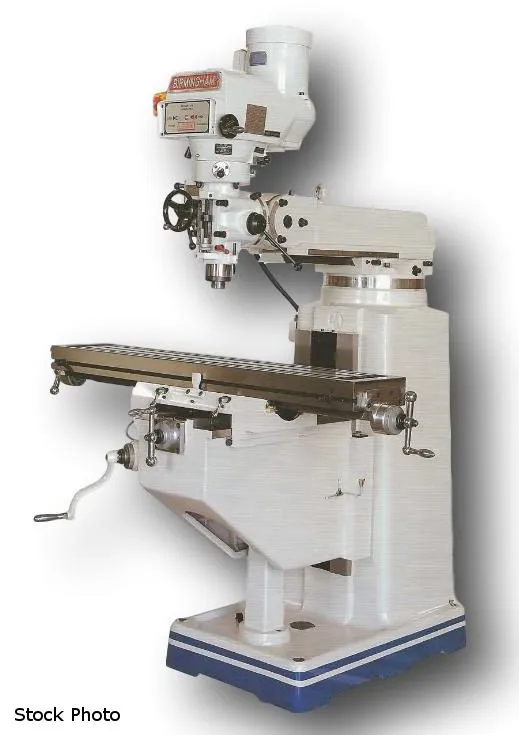

BIRMINGHAM (NEW) MODEL BPS-1054 STEP PULLEY
MILLING MACHINE
10" X 54" TABLE
800 LBS TABLE LOAD CAPACITY
5/8" X 3" TABLE T-SLOTS
LONGITUDINAL TRAVEL
- 38" BY HAND
- 34-1/4" WITH POWER FEED
18" CROSS TRAVEL
18" VERTICAL TRAVEL
18" RAM TRAVEL
0.0015" 0.003" 0.006"/REV QUILL FEED SPEEDS
5" QUILL TRAVEL
R8 SPINDLE TAPER
3-3/8" QUILL DIAMETER
16 SPINDLE SPEEDS 90 - 5600 RPM
90 DEGREE HEAD SWIVEL - LEFT AND RIGHT
45 DEGREE HEAD TILTING - FRONT BACK
360 DEGREE RAM TURRET SWIVEL
3 HP, 220 OR 440 VOLTS, 3 PHASE
STANDARD EQUIPMENT
- TOOL BOX
- FRONT CHIP GUARD
- REAR CHIP GUARD
- DRAW BAR
- ONE-SHOT LUBRICATION
STANDARD FEATURES
- CAST IRON FRAME
- BOX WAYS ON Y AXIS AND Z COLUMN
- HARDENED AND GROUND WAYS AND TABLE
- GROUND WORK TABLE T-SLOTS
OPTIONS AVAILABLE - PRICE ON REQUEST
- 2 HP, 1 PHASE, 220 VOLT, 8 SPINDLE SPEED MOTOR
- COOLANT SYSTEM
- POWER FEED FOR X, Y, Z
- HALOGEN WORKLIGHT
- ELECTRIC CONTROL BOX
- CUTTER HOLDER
- VISE
- CLAMPING KIT SET
- DIGITAL READOUT
- BASE COOLANT DROP PAN
- POWER AIR DRAW BAR UNIT
- NMTB # 30 SPINDLE
MADE IN CHINA
Power: (3-Phase)
