NEW SUMMIT 30-6-200 BIG HOLE

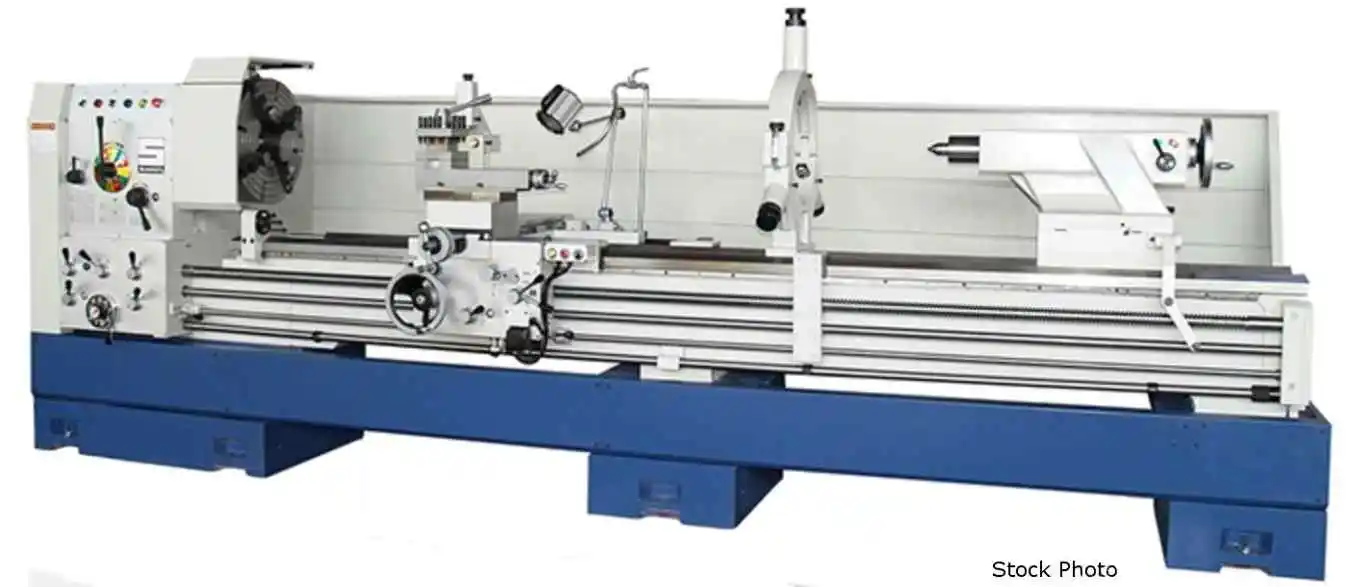

SUMMIT (NEW) 30-6-200 BIG HOLE ENGINE LATHE

30" SWING OVER BED
22" SWING OVER CROSS SLIDE
39" SWING OVER GAP
6.1" HOLE THROUGH SPINDLE
12 - 800 RPM SPINDLE SPEED
D1 -11 SPINDLE NOSE
18" WIDTH OF BED
20 HP MAIN MOTOR

STANDARD EQUIPMENT
- ELECTRIC SPINDLE BRAKE FOR PRECISE CONTROL
- CAST IRON CONSTRUCTION PROVIDES A SOLID
FOUNDATION FOR VIBRATION ABSORPTION RIGIDITY
- HARDENED AND PRECISION GROUND BEDWAYS FOR
LONG LASTING ACCURACY
- QUICK CHANGE GEARBOX WILL CUT AMERICAN (INCH),
METRIC AND MODULE PITCH THREADS
- RAPID TRAVERSE ON CARRIAGE (4 WAYS)
- 2-SPEED TAILSTOCK FOR FASTER SETUPS
- HUGE 6" AND 9" SPINDLE BORES FOR MAXIMUM
WORKPIECE FLEXIBIILITY

ACCESSORIES INCLUDED
- STEADY REST
- TAPER ATTACHMENT

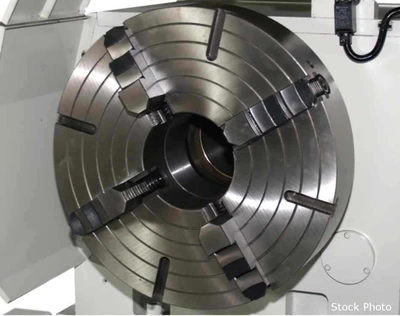

- 16" 3-JAW CHUCK
- 20" 4-JAW CHUCK
- FOLLOW REST
- FULL-LENGTH SPLASH GUARD
- WORK LIGHT
- TWO-SPEED TAILSTOCK
- COOLANT SYSTEM

OPTIONS AVAILABLE - PRICE ON REQEUST
- QUICK CHANGE TOOL POST WITH HOLDER
- REAR FLANGE TO MOUNT ADDITIONAL CHUCK
- ELECTRONIC 2 AXIS DIGITAL READOUT INSTALLED
- 28" STEEL BODY HEAVY DUTY 4 JAW CHUCK
WITH 7.5" BORE
- 25" STEEL BODY 3 JAW PRECISION CHUCK WITH
9.9" BORE
- 20" STEEL BODY 3 JAW PRECISION CHUCK WITH
7.5" BORE
- 15-3/4" STEEL BODY 4 JAW CHUCK WITH 6.5" BORE
Power: (3-Phase)
