NEW SUMMIT 30-6-120 BIG HOLE

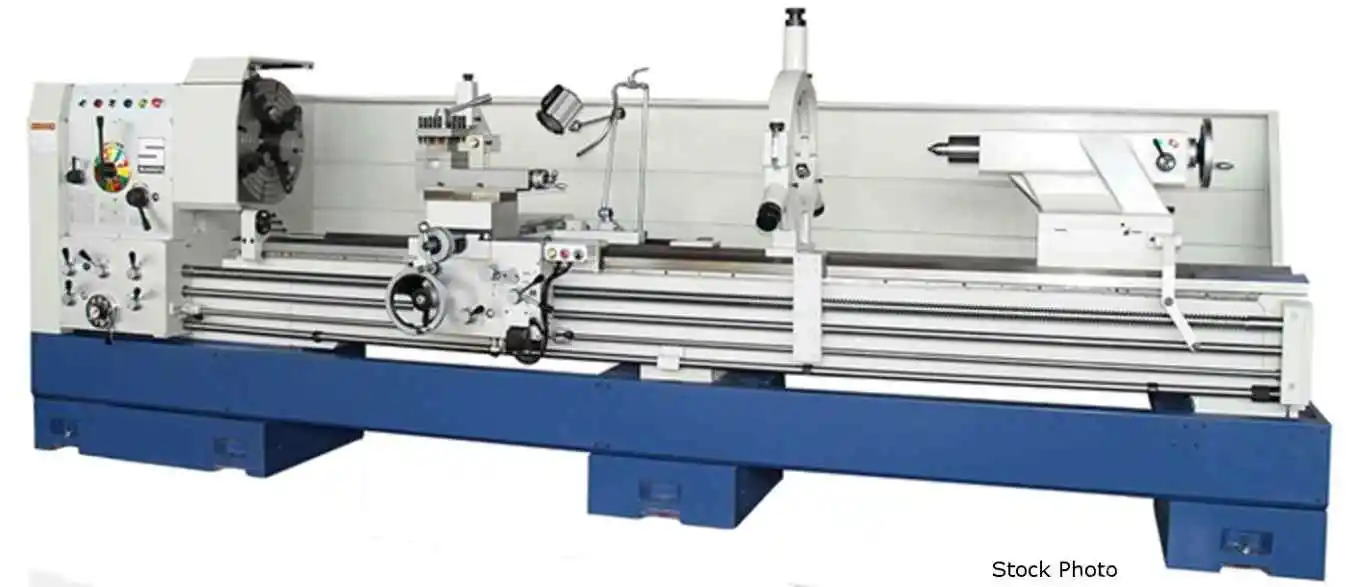

SUMMIT (NEW) 30-6-120 BIG HOLE ENGINE LATHE

30" SWING OVER BED
22" SWING OVER CROSS SLIDE
39" SWING OVER GAP
6.1" SPINDLE BORE
13-800 RPM RANGE
D1-11 SPINDLE NOSE
18" WIDTH OF BED
20 HP MAIN MOTOR

STANDARD FEATURES
- ELECTRIC SPINDLE BRAKE FOR PRECISE CONTROL
- CAST IRON CONSTRUCTION PROVIDES A SOLID
FOUNDATION FOR VIBRATION ABSORPTION RIGIDTY

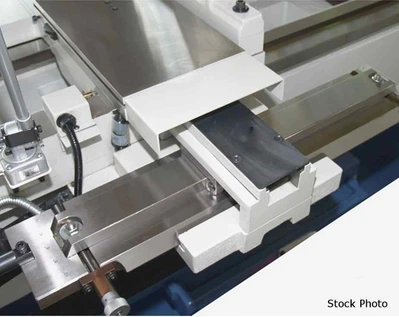

- HARDENED AND PRECISION GROUND BEDWAYS FOR LONG-
LASTING ACCURACY
- QUICK CHANGE GEARBOX WILL CUT AMERICAN (INCH),
METRIC AND MODULE PITCH THREADS
- RAPID TRAVERSE ON CARRIAGE (4 WAY)
- 2-SPEED TAILSTOCK FOR FASTER SETUPS
- HUGE 6" AND 9" SPINDLE BORES FOR MAXIMUM
WORKPIECE FLEXIBILITY

ACCESSORIES INCLUDED
- STEADY REST
- TAPER ATTACHMENT
- 16" 3-JAW CHUCK
- FOLLOW REST
- FULL-LENGTH SPLASH GUARD

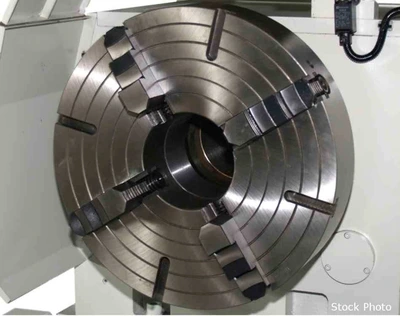

- 20" 4 JAW CHUCK
- WORK LIGHT
- TWO-SPEED TAILSTOCK
- COOLANT SYSTEM

OPTIONS AVAILABLE - PRICE ON REQUEST
- QUICK-CHANGE TOOL POST WITH HOLDERS
- REAR FLANGE TO MOUNT ADDITIONAL CHUCK
- ELECTRONIC 2 AXIS DIGITAL READOUT INSTALLED
- 28" STEEL BODY HEAVY DUTY 4 JAW CHUCK WITH
7.5" BORE
- 25" STEEL BODY 3 JAW PRECISION CHUCK WITH
9.9" BORE
- 20" STEEL BODY 3 JAW PRECISION CHUCK WITH
7.5" BORE
- 15-3/4" STEEL BODY 4 JAW CHUCK WITH 6.5" BORE
Power: 220/440 (3-Phase)
