| Dimensions | 78 X 36 X 54 | 78 X 36 X 54 |
| Weight | 2,491 | 2,491 |

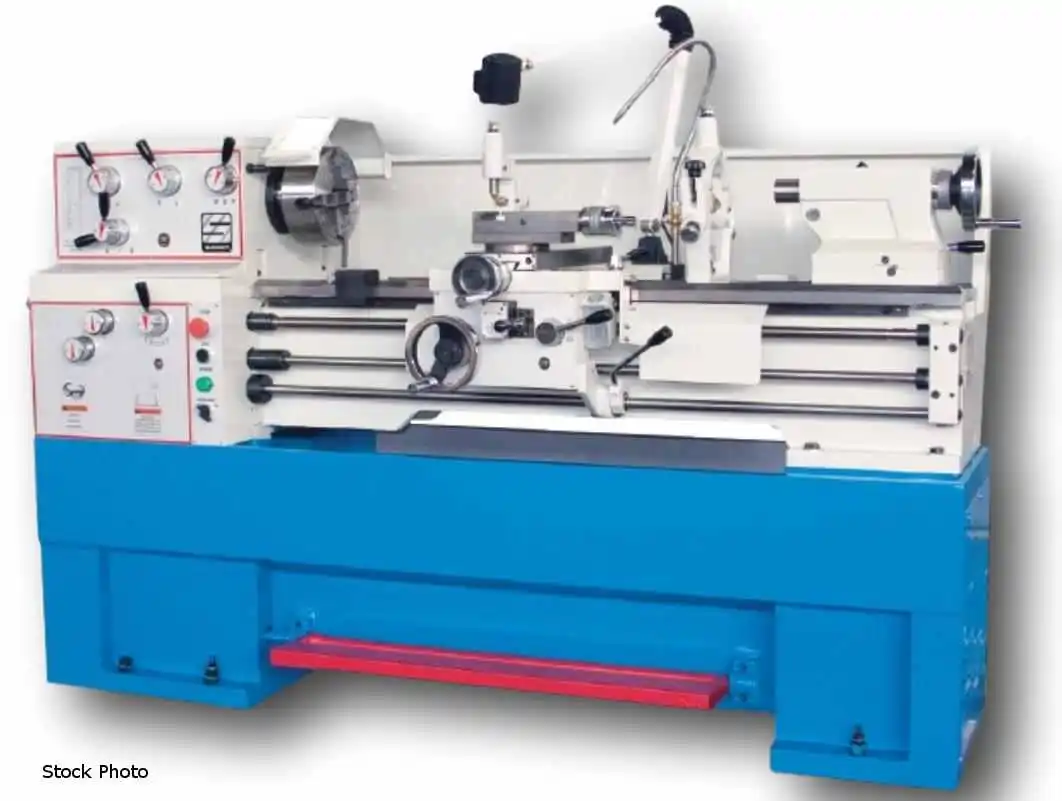

SUMMIT (NEW) MODEL 1440D ENGINE LATHE
14" SWING OVER BED
8-1/4" SWING OVER CROSS SLIDE
20" SWING OVER GAP
9-1/4" LENGTH OF GAP
HEADSTOCK
- 1-1/2" HOLE THROUGH SPINDLE

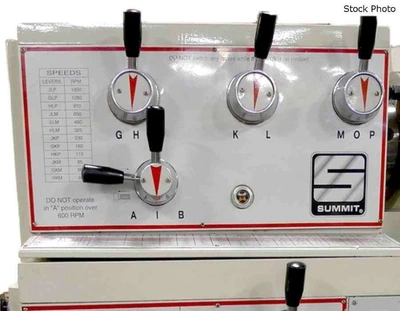

- 12 SPINDLE SPEEDS 40-1800 RPM
QUICK CHANGE GEARBOX
- 40 THREADS PER INCH 4 - 112 TPI
- 24 METRIC THREADS 0.45-75 TPI
- 40 LONGITUDINAL FEEDS .0011-.0271 IPR
- 40 CROSS FEEDS .0003-.0090 IPR
4 HP SPINDLE MOTOR
1/8 HP COOLANT PUMP
STANDARD EQUIPMENT
- HEAVY RIBBED CAST BED
- HARDENED AND PRECISION GROUND WAYS
- FORCED LUBE TO HEADSTOCK, CARRIAGE BEDWAYS
- CROSSFEED AND THREADING SAFETY INTERLOCK
- FULL LENGTH SPLASH GUARD
- INCH-METRIC THREADING
- REMOVABLE GAP
- D1-4 CAMLOCK SPINDLE NOSE
ACCESSORIES INCLUDED
- THREAD DIAL

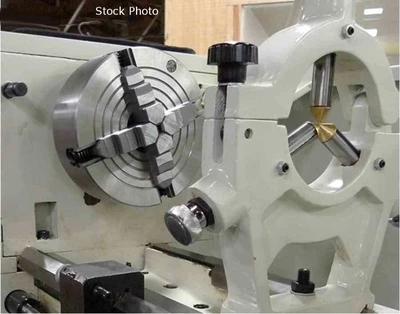

- STEADY REST
- FOLLOW REST
- COOLANT SYSTEM
- MICROMETER CARRIAGE STOP
- TAPER ATTACHMENT
- 8" 3-JAW CHUCK WITH 2 PIECE JAWS
- 8" 4-JAW CHUCK
- 4-WAY SQUARE TOOL POST
- 12" FACEPLATE
- WORK LIGHT
OPTIONS AVAILABLE - PRICE ON REQUEST
- ALORIS QUICK CHANGE TOOL POST WITH HOLDERS
- 8" SETTRU STEEL BODY 3-JAW CHUCK WITH TOP 2-
PIECE JAWS
- FAGOR 2 AXIS DIGITAL READOUT INSTALLED
- LEVER OPERATED 5C COLLECT CLOSER INSTALLED
Power: 220/440 (3-Phase)
