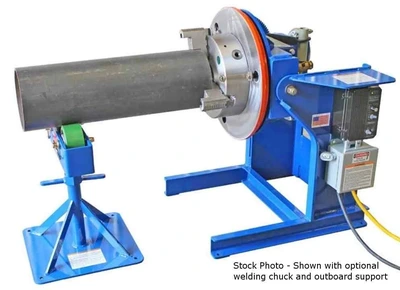

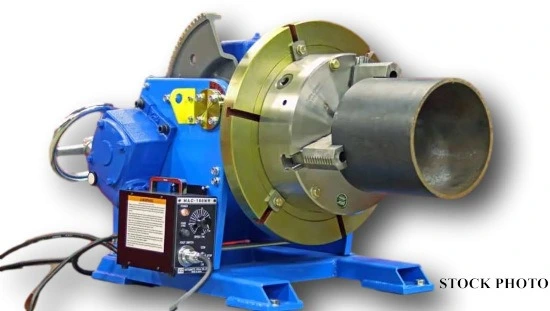

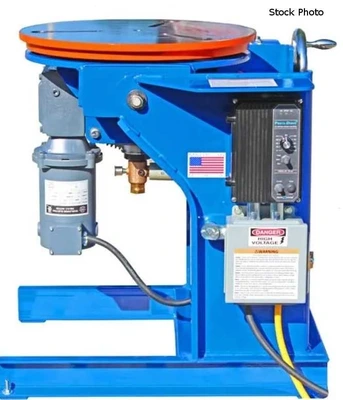

ALL-FAB (NEW) MODEL MAC PS-3F-2.5-A WELDING POSITIONER W/GATOR MT12 CHUCK

MAXIMUM LOAD CAPACITY
- 990 LBS WITH TABLE FLAT HORIZONTAL

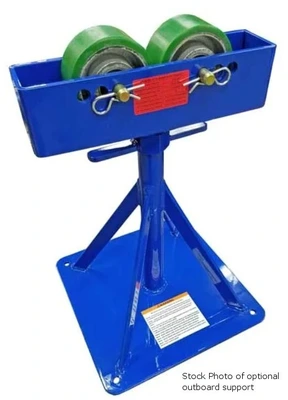

- 650 LBS MAXIMUM LOAD CAPACITY USING OUTBOARD ROLLER SUPPORT
MAXIMUM LOAD CAPACITY TABLE TILTED 90 DEGREES VERTICAL POSITION (CENTER OF GRAVITY LOAD HEIGHT
FROM TABLE)
- 650 LBS RATING @4 CG LOAD HEIGHT FROM TABLE
- 437 LBS RATING @ 8" CG LOAD HEIGHT FROM TABLE
- 329 LBS RATING @ 12" CG LOAD HEIGHT FROM TABLE
- 264 LBS RATING @ 16" CG LOAD HEIGHT FROM TABLE
- 220 LBS RATING @ 20" CG LOAD HEIGHT FROM TABLE

MAXIMUM ROTATION LOAD TORQUE - 1250 INCH-POUND
- 500 LBS RATING @ 2.5' CG KIAD ECCENTRICITY FROM AXIS
- 250 LBS RATING @ 5' CG KIAD ECCENTRICITY FROM AXIS
- 156 LBS RATING @ 8" CG LOAD ECCENTRICITY FROM AXIS
TABLE DIAMETER 18 INCHES W/CENTERING GROOVES 6 TEE SLOTS
VARIABLE ROTATION SPEED 0.2 TO 2.5 RPM

ROTATION
- 1/4 HP DC VARIABLE SPEED
- 0.2 TO 2.5 RPM VARIABLE SPEED RANGE
- SPEED ACCURACY - 2 PERECENT OF BASE SPEED
- ROTATION DRIVE - FULLY ENCLOSED LUBRICATION SELF-LOCKING WORM GEAR

TILT
- 90 DEGREES FORWARD
- MANUAL TILT TORQUE
- 7" DIAMETER HAND WHEEL HAND WHEEL W/SELF-LOCKING WORM GEAR

TABLE
- 18" DIAMETER ROUND WITH CENTERING GROOVES
- 6 TEE SLOTS AT 60 DEGREES
- 7/16" TEE NUT SIZE
- 4.21" INHERENT OVERHAND
- 500 AMPS THRU SPRING LOADED MECHANICAL GROUND

- 115 VOLT, SINGLE PHASE PRIMARY INPUT POWER

CONTROLS
- EXTERNAL CONTROL BOX WITH POWER ON INDICATOR LIGHT FOOT CONTROL RECEPTACLE
- 1-TURN POTENTIOMETER SPEED CONTROL
- FWD/STOP/REVERSE SWITCH WITH DIRECTIONAL CONTROL
- 5 AMP MOTOR FUSE - OVERLOAD PROTECTION
- DYNAMIC BRAKING - BRINGS TABLE ROTATION TO A QUICK TROP
- FOOT SWITCH - REMOTE START/STOP WITH 22' OF CABLE

OPTIONS AVAILABLE - PRICE ON REQUEST

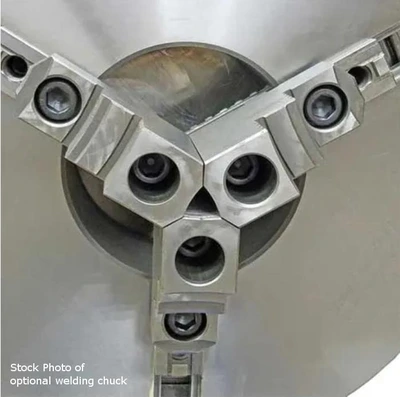

- MAC WP-4000 WELDING CHUCK
Power: 115 (Single)
