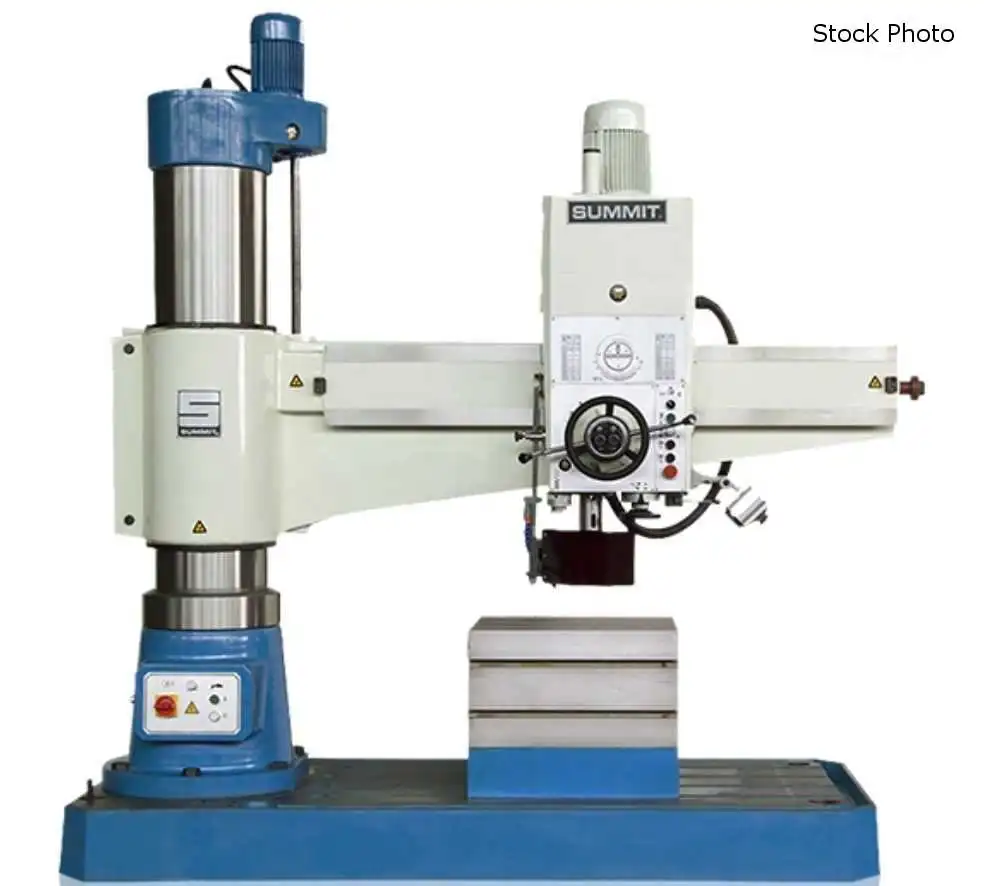

NEW SUMMIT RD6315 RADIAL DRILL

SUMMIT (NEW) MODEL RD6315 RADIAL DRILL

2.25" DRILLING CAPACITY
7.5 HP SPINDLE MOTOR
14.5" - 63" SPINDLE AXIS TO COLUMN
15.375" COLUMN DIAMETER
MT 5 SPINDLE TAPER
11.75" SPINDLE TRAVEL
12 SPINDLE SPEEDS
30 - 1580 RPM SPINDLE SPEED RANGE
12 SPINDLE FEEDS
0.023-.0.44 IPR RANGE OF FEEDS
48.5" HORIZ TRAVERSE OF SPINDLE HEAD ON ARM
2 HP ARM ELEVATING MOTOR
1 HP HYD CLAMPING MOTOR-HEAD ARM
0.1 HP COOLANT PUMP MOTOR
29.5" X 19.75" X 15.75" PLAIN BOX TABLE

STANDARD EQUIPMENT
- CENTRALIZED CONTROLS
- GEARS AND SHAFTS HARDENED AND GROUND
- PRESSURIZED PUMP LUBRICATION
- HEAD AND ARM MOVEMENT ADJUSTABLE, ANTI-FRICTION
PRECISION BEARINGS
- SAFETY LIMIT SWITCHES FOR RAISING, LOWERING,
LOCKING AND RESET
- LEVELING SCREWS IN BASE
- HYDRAULIC CLAMPING
- LARGE T-SLOTTED BASE
- ADJUSTABLE CLUTCH ON FEED OF THE SPINDLE WITH
AUTOMACTIC DEPTH STOP
- OIL SIGHT WINDOW
- PRECISION SPINDLE AND QUILL UNIT MADE OF CHROME
NICKLE STEEL, HARDENED AND GROUND
- SPINDLE MOUNTED ON TWO ANTI-FRICTION BEARINGS
- BUILT-IN COOLANT PUMP AND PLUMBING
- HARDENED AND PRECISION GROUND WAYS
- HEAD TRAVERSE ON ROLLER GIBS
- PLAIN BOX TABLE

OPTIONS AVAILABLE - PRICE ON REQUEST
- PLAIN BOX TABLE
- TILTING BOX TABLE
Power: 220/440 (3-Phase)
