| Dimensions | 81 X 41 X 93 | 81 X 41 X 93 |
| Weight | 5,896 | 5,896 |

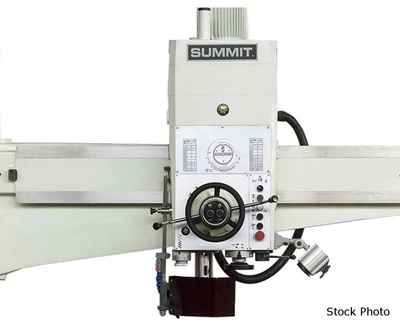

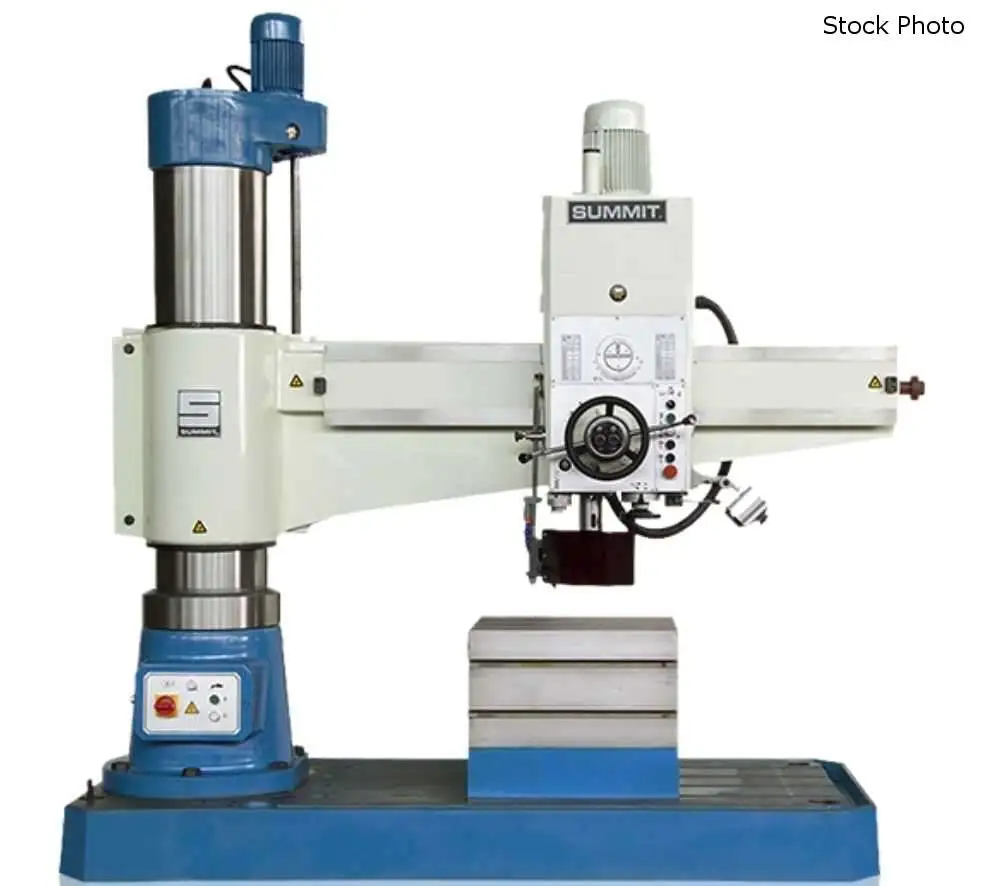

SUMMIT (NEW) MODEL RD4312 RADIAL DRILL
1.75" DRILLING CAPACITY
3 HP SPINDLE MOTOR
14" - 43.25" SPINDLE AXIS TO COLUMN
12" COLUMN DIAMETER
MT 4 SPINDLE TAPER
8.624" SPINDLE TRAVEL
9 SPINDLE SPEEDS
49 - 1524 RPM SPINDLE SPEED RANGE
3 SPINDLE FEEDS
0.03 - .0137" IPR RANGE OF FEEDS
29.75" HORIZ TRAVERSE OF SPINDLE HEAD ON ARM
2 HP ARM ELEVATING MOTOR
0.1 HP COOLANT PUMP MOTOR
STANDARD EQUIPMENT
- CENTRALIZED CONTROLS
- GEARS AND SHAFTS HARDENED AND GROUND
- PRESSURIZED PUMP LUBRICATION
- HEAD ARM MOVEMENT ADJUSTABLE, ANTI-FRICTION,
PRECISION BEARINGS
- SAFETY LIMIT SWITCHES FOR RAISING, LOWERING,
LOCKING AND RESET
- LEVELING SCREWS IN BASE
- HYDRAULIC CLAMPING
- LARGE T-SLOTTED BASE
- ADJUSTABLE CLUTCH ON FEED OF THE SPINDLE WITH
AUTOMATIC DEPTH STOP
- OIL SIGHT WINDOW
- PRECISION SPINDLE AND QUILL UNIT MADE OF
CHROME NICKEL STEEL, HARDENED AND GROUND
- SPINDLE MOUNTED ON TWO ANIT-FRICTION BEARINGS
- BUILT-IN COOLANT PUMP AND PLUMBING
- HARDENED AND PRECISION GROUND WAYS
- HEAD TRAVERSE ON ROLLER GIBS
OPTIONS AVAILABLE - PRICE ON REQUEST
- PLAIN BOX TABLE
- TILTING BOX TABLE
