| Dimensions | 55 X 31 X 77 | 55 X 31 X 77 |
| Weight | 2,843 | 2,843 |

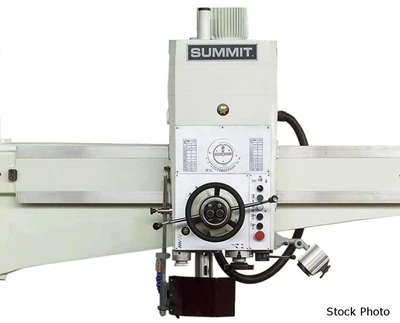

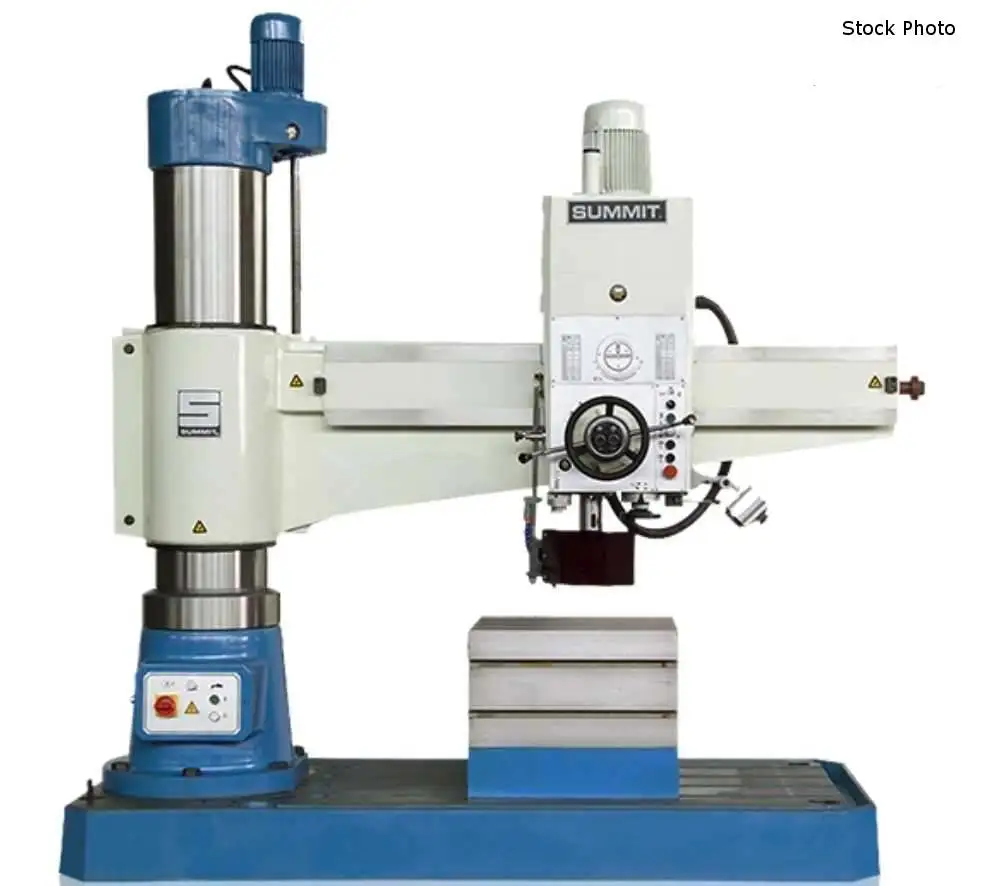

SUMMIT (NEW) MODEL RD2808 RADIAL DRILL
1.50" DRILLING CAPACITY
2 HP SPINDLE MOTOR
7.5" - 28" SPINDLE AXIS TO COLUMN
8" COLUMN DIAMETER
MT 4 SPINDLE TAPER
8.25" SPINDLE TRAVEL
6 SPINDLE SPEEDS
88 - 1500 RPM SPINDLE SPEED RANGE
3 SPINDLE FEEDS
.003" - .0052" - .009" IPR RANGE OF FEEDS
20.5" HORIZ TRAVERSE OF SPINDLE HEAD ON ARM
1 HP ARM ELEVATING MOTOR
0.1 HP COOLANT PUMP MOTOR
STANDARD EQUIPMENT
- CENTRALIZED CONTROLS
- GEARS AND SHAFTS HARDENED AND GROUND
- PRESSURIZED PUMP LUBRICATION
- HEAD AND ARM MOVEMENT ADJUSTABLE,
ANTI-FRICTION PRECISION BEARINGS
- SAFETY LIMIT SWITCHES FOR RAISING, LOWERING,
LOCKING AND RESET
- LEVELING SCREWS IN BASE
- MANUAL CLAMPING
- LARGE T-SLOTTED BASE
- ADJUSTABLE CLUTCH ON FEED OF THE SPINDLE
WITH AUTOMATIC DEPTH STOP
- OIL SIGHT WINDOW
- PRECISION SPINDLE AND QUILL UNIT MADE OF
CHROME NICKLE STEEL, HARDENED AND GROUND
- SPINDLE MOUNTED ON TWO ANTI-FRICTION BEARINGS
- BUILT-IN COOLANT PUMP AND PLUMBING
- HARDENED AND PRECISION GROUND WAYS
- HEAD TRAVERSE ON ROLLER GIBS
OPTIONS AVALABLE - PRICE ON REQUEST
- PLAIN BOX TABLE
- TIMING BOX TABLE
