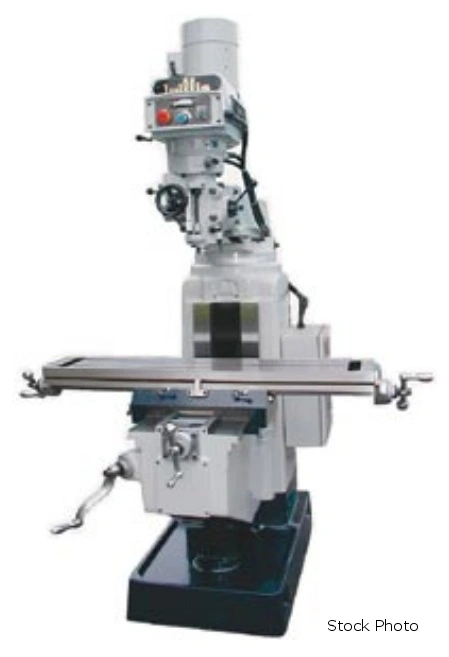

NEW WILLIS MACHINERY 1050II

WILLIS MACHINERY (NEW) MODEL 1050II CONVENTIONAL
KNEE MILL

50" X 10" TABLE
34" X 17" MANUAL TRAVELS LONGITUDINAL/CROSS
18" VERTICAL KNEE TRAVEL
5/8" T-SLOTS (3)
21" RAM TRAVEL
360 DEGREE RAM SWIVEL
3-3/8" QUILL DIAMETER
5" QUILL TRAVEL
3 HP SPINDLE MOTOR
60 - 4200 SPINDLE SPEEDS - VARIABLE
R-8 SPINDLE TAPER
BOX WAYS FOR KNEE AND COLUMN
0.0032, 0.0017 0.0053 IPR QUILL POWER FEED RATES
90-0-90 DEGREES HEAD TILTING-LEFT TO RIGHT
45-0-45 DEGREES HEAD TILTING-FRONT TO BACK
3" TO 20" SPINDLE NOSE TO TABLE
3" TO 24" CENTER OF SPINDLE TO COLUMN FACE
4-1/8" GROUND WAY SURFACE WIDTH
21" SADDLE WIDTH
15-1/2" KNEE WIDTH
20-1/4" KNEE HEIGHT
1100 LBS MAX WORK PIECE WEIGHT

MEEHANITE CASTINGS
HARDENED AND GROUND TABLE SURFACE
HARDENED AND GROUND WAYS WITH TURCITE
CLASS 7 PRECISION SPINDLE BEARINGS
CHROME PLATED GROUND QUILL
METERED VALVE LUBRICATION SYSTEM
DYNAMICALLY BALANCED VS PULLEY
DOUBLE NUTS ON LEADSCREWS FOR MINIMAL BACKLASH
DOUBLE LOCKS ON ALL AXES
RUBBER WAY COVERS
TOOLBOX AND TOOLS
OPERATOR'S MANUAL

OPTIONS AVAILABLE - PRICE ON REQUEST
- LONGITUDINAL POWER FEED
- LONGITUDINAL FEED MOTOR
- TABLE RISING MOTOR
- 1/8 HP COOLANT PUMP
