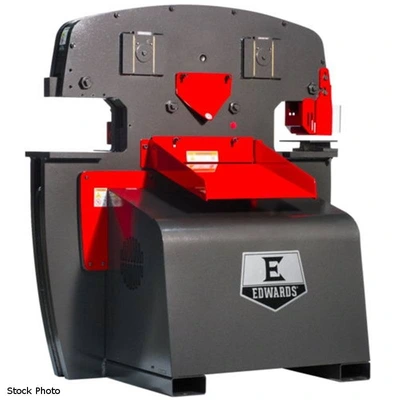

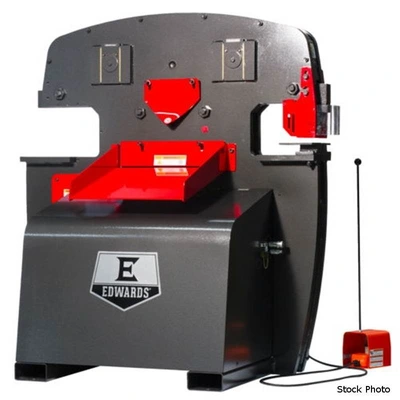

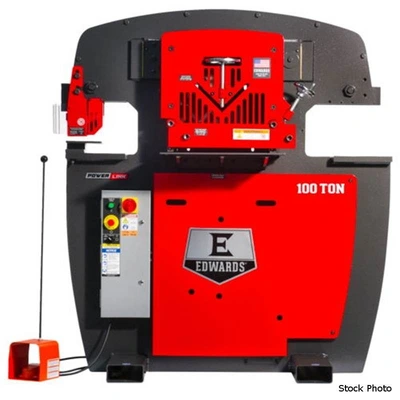

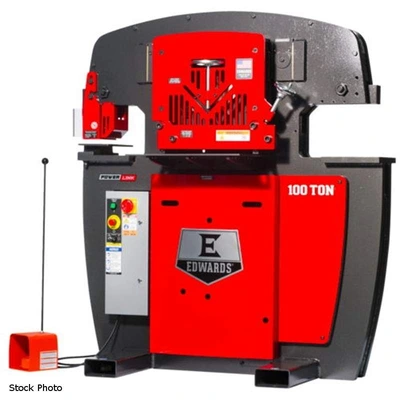

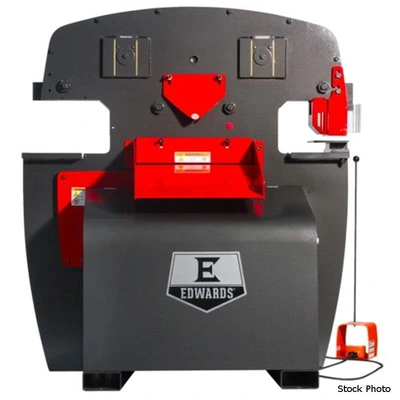

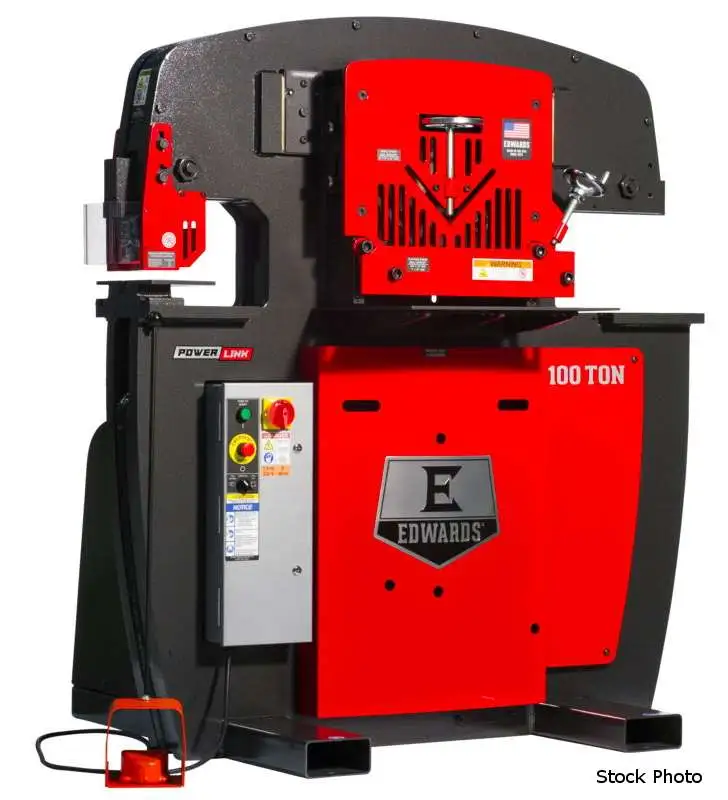

NEW EDWARDS IW100-3P230-A 100-TON

EDWARDS (NEW) MODEL IW100-3P230-A 100-TON
IRONWORKER WITH 4 STATIONS W/POWERLINK

PUNCH
- 1-1/16" DIA. MAX CAPACITY IN 1" PLATE
- 39-1/16" WORK HEIGHT

FLAT BAR SHEAR
- 3/4" X 14" MAXIMUM WIDTH
- 1" X 10" MAXIMUM THICKNESS
- 1-1/4" MAXIMUM ROUND
- 1-1/4" MAXIMUM SQUARE
- 37" WORK HEIGHT

ANGLE SHEAR
- 6" X 6" X 1/2" MAXIMUM SIZE
- 43-15/16" WORK HEIGHT

OPEN STATION
- 14-3/4" THROAT DEPTH
- 8-3/4" OPEN HEIGHT
- 6-15/16" SHUT HEIGHT
- 1-13/16" STROKE
- 37" WORK HEIGHT

GENERAL SPECIFICATONS
- 100 TON RATED CAPACITY
- 11" THROAT DEPTH
- 8-3/4" OPEN HEIGHT
- 6-15/16" SHUT HEIGHT
- 1-13/16" STROKE
- 7.5 HP, 3 PHASE ELECTRIC MOTOR
- 230 VOLTS
- 1765 RPM
- 22 AMP
- 10-1/2 GPM - 2 STAGE HYDRAULIC PUMP SIZE
- 3,500 PSI VALVE PRESSURE
- 17 GALLON RESERVOIR
- 3-1/2" RAM CYLINDER

STANDARD FEATURES
- ELECTRIC STROKE CONTROL
- ELECTRIC FOOT PEDAL
- PEDESTAL DIE TABLE
- AUXILIARY M12 POWER PORT
- POWERLINK

ELECTRIC MOTOR OPTIONS - PRICE ON REQUEST
- 5 HP, 1 PHASE, 208/230 VOLT 1725 RPM, 23 AMP
- 7.5 HP, 3 PHASE, 460 VOLT, 1765 RPM, 11 AMP
- 7.5 HP, 3 PHASE, 575 VOLT, 1770 RPM, 8 AMP
- 7.5 HP, 1 PHASE, 230 VOLT, 1765 RPM, 36 AMP
REQUIRED FOR 1 PHASE HYDRAULIC ACCESSORY PACK

OPTIONS AVAILABLE - PRICE ON REQUEST
- HYDRAULIC ACCESSORY PACKAGE
- ACCESSORY LIGHT
- AUTO CUT
- ANGLE NOTCHER 3" X 3" X 1/4"
- BRAKE W/4-WAY DIE 1/16" 1/8" 3/16" 1/4"
- COPER NOTCHER
- MULTI SHEAR
- PIPE NOTCHER HOUSING
- QUICK-CHANGE PUNCH COUPLING
- ROD SHEAR HOUSING
1/4", 3/8", 1/2", 5/8", 3/4", 1"
Power: 230 (3-Phase)
