| Dimensions | 154X 48 X 67 | 154X 48 X 67 |
| Weight | 8,100 | 8,100 |

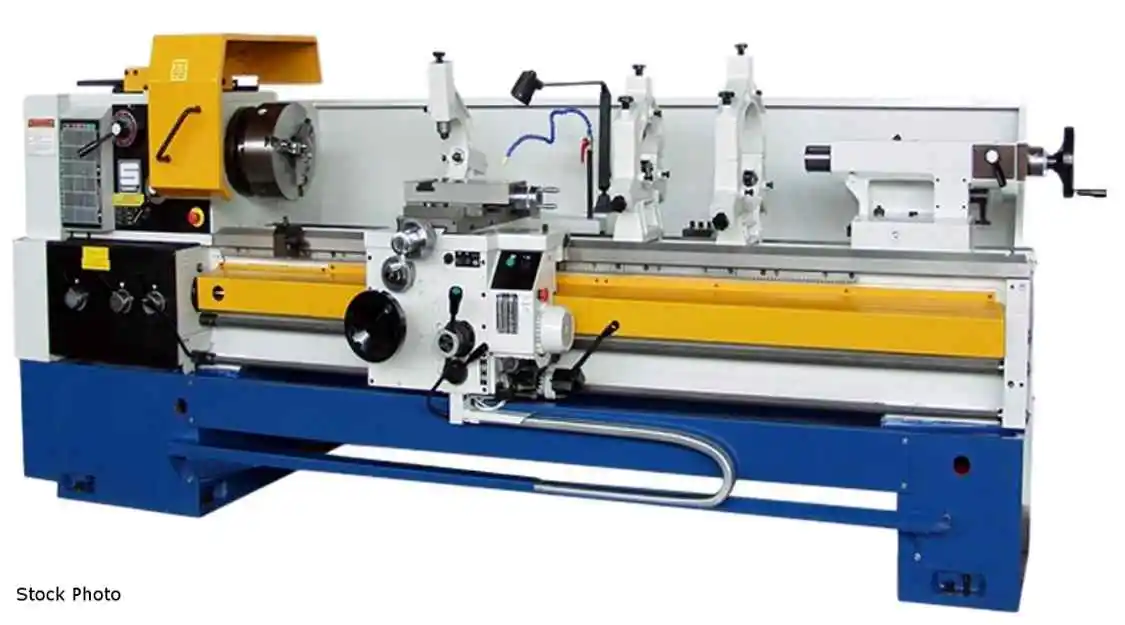

SUMMIT (NEW) MODEL 24-4-80 ENGINE LATHE
CAPACITIES
- 25" SWING OVER BED
- 17" SWING OVER CROSS SLIDE
- 33" SWING OVER GAP
- 15" GAP
- 8-3/8" GAP IN FRONT OF FACEPLATE

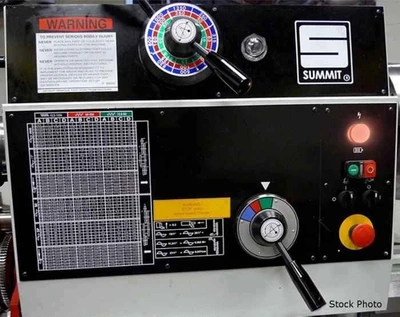

HEADSTOCK
- 4 1/8" HOLE THROUGH SPINDLE
- 21 SPINDLE SPEEDS 20-1250 RPM
QUICK CHANGE GEARBOX
- 64 THREADS PER INCH .25 - 60 TPI
- 64 METRIC THREADS .50 - 120 IPR
- 124 LONGITUDINAL FEEDS .00145-.44474 IPR
- 124 CROSS FEEDS .0007-.22237 IPR
15 HP MOTOR
1/4 HP COOLANT PUMP MOTOR
STANDARD EQUIPMENT
- HEAVY RIBBED CAST BED AND BASE
- HARDENED PRECISION-GROUND EXTRA-WIDE BEDWAYS
- FORCED LUBRICATION TO HEADSTOCK, CARRIAGE,
AND BEDWAYS
- D1-8 CAMLOCK SPINDLE NOSE
- PULLOUT TYPE CHIP PAN
- CROSSFEED AND THREADING SAFETY INTERLOCK
- DIAMETRAL AND MODULE THREAD CAPABILITY
- INCH-METRIC THREADING
- REMOVABLE GAP
- FEED REVERSING AT THE APRON
- SINGLE LEVER "JOYSTICK" CONTROL FOR FEEDS AND
4-WAY RAPID TRAVERSE
- DUAL HEADSTOCK AND APRON SPINDLE CONTROL LEVERS
- FULL LENGTH SPLASH GUARD
- TWO SPEED TAILSTOCK
ACCESSORIES INCLUDED
- THREAD DIAL
- STANDARD STEADY REST WITH ROLLERS
- EXTRA-CAPACITY STEADY REST WITH ROLLERS
- FOLLOW REST
- COOLANT SYSTEM
- CARRIAGE STOP
- TAPER ATTACHMENT
- RAPID TRAVERSE ON CARRIAGE (4-WAY JOYSTICK)
- HALOGEN WORK LIGHT
- 12" 3-JAW CHUCK WITH 2 PIECE JAW
- WRENCHES AND SPANNERS
- REDUCING SLEEVE AND DEAD CENTER
OPTIONS AVAILABLE - PRICE ON REQUEST
- 12" STEEL BODY
- 3-JAW PRECISION CHUCK W/2-PIECE REVERSIBLE JAWS
- QUICK CHANGE TOOL POST WITH HOLDERS
- DIGITAL READOUT
Power: 220/440 (3-Phase)
