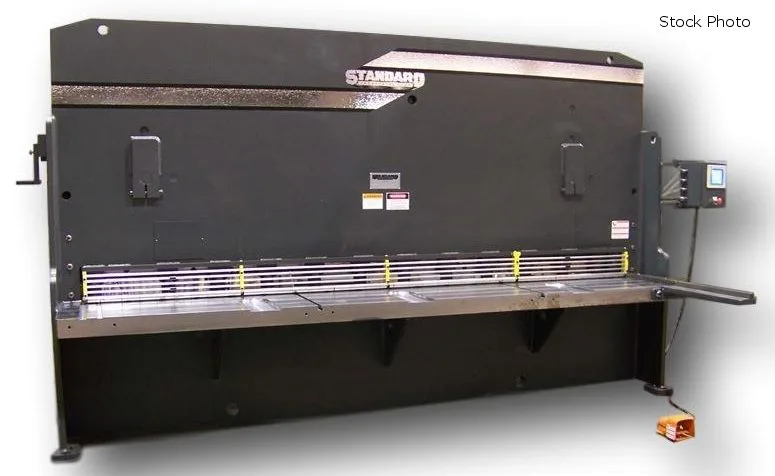

NEW STANDARD AS375-12

STANDARD (NEW) MODEL AS-375-12 SQUARING SHEAR

3/8" X 12' CAPACITY MILD STEEL
60 TON SHEARING
0.4 INCHES PER FOOT RAKE
13 HOLD DOWN CYLINDERS
- 48 TONS OF HOLD DOWN FORCE
- 2" BORE
1" X 3" X 148" BLADE
9 SPM FOR FULL WIDTH CUT
30 SPM FOR 12" WIDE CUT
125 IPM RAM SPEED - DOWN
178 IPM RAM SPEED - UP
30 HP

FEATURES
- PRECISION GUILLOTINE DRIVE
- CYBLEC SHEAR CONTROL
200 JOB PROGRAMMABILITY
X RETRACT
PROGRAMMABLE DEPTHS
- 36" HEAVY-DUTY BACKGAUGE
MANUAL SWING-AWAY BACKSTOP
- MANUAL, SIDE-ADJUSTABLE, QUICK-CHANGE BLADE GAP
ADJUSTMENT
- 80,000 PSI
- 4' SQUARING ARM WITH SCALE
- (3) HAND SLOTS IN THE TABLE
- (2) T-SLOTS IN SHEAR TABLE
- T-SLOT ACROSS FRONT EDGE OF SHEAR TABLE
- COMPONENTS AVAILABLE FROM LOCAL SUPPLIERS
- 5-YEAR PARTS WARRANTY
- 5-YEAR LIMITED ON-SITE LABOR WARRANTY
- LIFETIME TELEPHONE SUPPORT AT NO CHARGE

OPTIONS AVAILABLE - PRICE ON REQUEST
- 4', 8' AND 12' SQUARING ARMS
- HEAVY-DUTY BALL TRANSFERS
- 2', 3' AND 4' SUPPORT ARMS
- 48" TRAVEL BACKGAUGE (IN LIEU OF 36")
- HIGH-CARBON, HI-CHROME BLADES
(IN LIEU OF STANDARD BLADES)
- HOLD-DOWN CYLINDERS WITH IMPACT PADS
- PNEUMATIC SHEET SUPPORT SYSTEMS
- CONVEYORS
- STACKERS
- SAFETY SYSTEMS
- EXTENDED WARRANTY SERVICE
- START UP / TRAINING / MAINTENANCE SERVICE
Power: 230-480/3
