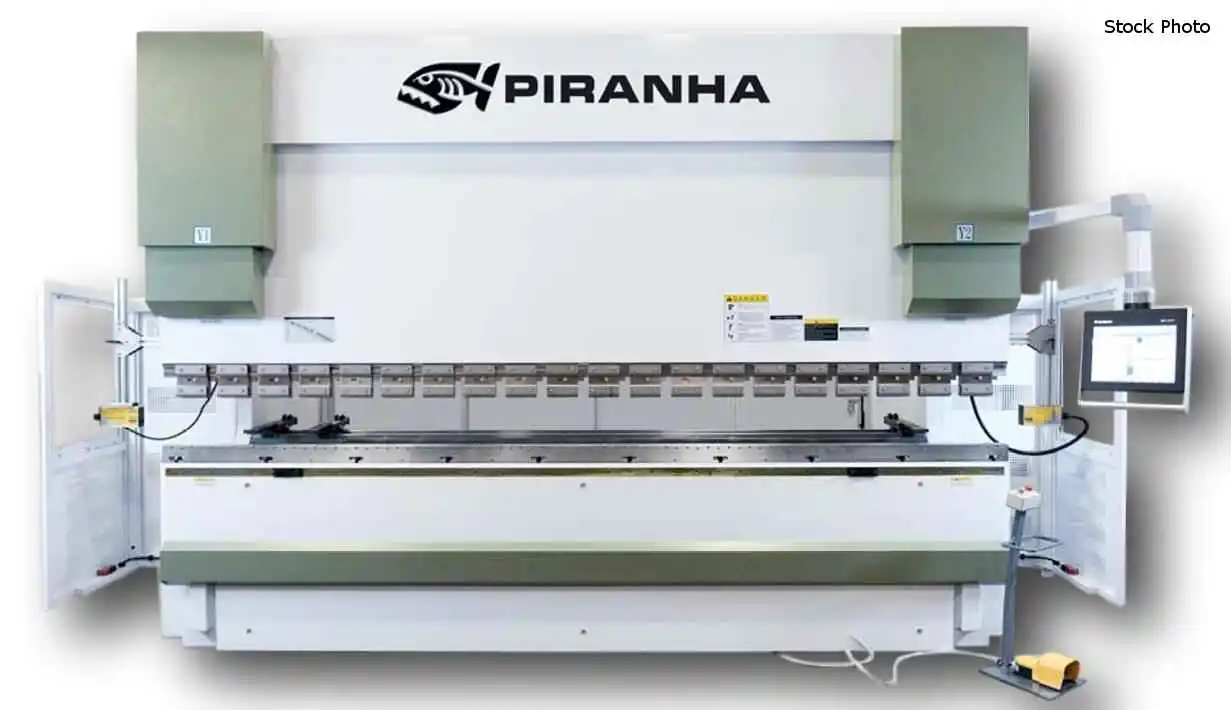

NEW PIRANHA 280-13

PIRANHA (NEW) MODEL 280-13 PREICSION CNC PRESS
BRAKE

280 TON CAPACITY
161.4" WORK TABLE
3.15" DIE RAIL HEIGHT
141.5" BETWEEN UPRIGHTS
8.5" RAM STROKE
17.7" MAX OPEN HEIGHT (W/DIE RAIL-W/O CLAMPS)
16.1" THROAT DEPTH
283"/M RAPID APPROACH SPEED
21"/M WORKING SPEED
248"/M RAM RETURN SPEED
0.0004" RAM REPEATABILITY
4-AXIS BACK GAUGE - POWERED X,R,Z1Z2
BACK GAUGE X-AXIS
- 19.7" STROKE
- 0-38.5" WORK PIECE SIZE
- 708 IPM MAX RUNNING SPEED
- 0.001" RE-POSITION
25 HP
135 GALLON OIL CAPACITY

STANDARD FEATURES
- DELEM DA-66T CNC CONTROL
- EUROPEAN DESIGN
- FULL STEEL PLATE WELDED STRUCTURE
- STRESS RELIEVED
- MACHINE IS ONE SET UP TO ASSURE PARALLELISM AND
VERTICALITY OF ALL MOUNTING SURFACES
- SAFETY SIDE DOOR GUARDS AND REAR SAFETY GATE
- MOVABLE FRONT SUPPORT ARMS
RAM
- Y1 AND Y2 AN BE PROGRAMMED SEPERATELY ALLOWING
FOR OFF CENTER LOADING OR CONE BENDING
- DWELL AT THE BOTTOM OF STROKE CAN HOLD THE WORK
PIECE CLAMPED UNDER PRESSURE AND CAN BE PROGRAMMED
TO ASSURE PRECISION BENDS
- SLOW SPEED RETURN, ALLOWS THE OPERATOR TO
CONTROL WORK PIECE AFTER THE BEND IS COMPLETED
HYDRAULIC SYSTEM
- ADVANCED CLOSED-LOOP ELECTRO-HYDRAULIC
SYNCHRONIZED SERVO-CONTROL SYSTEM
- HYDRAULIC SYSTEM FROM HOERBIGER, GERMANY
- HEIDENHAIN LINEAR SCALE AND POSITIONING SYSTEM,
WITH A HYDRAULIC BALANCING SYSTEM WHICH ALLOWS
PROCESSING OF FULL LENGTH WORK PIECE OR
SECTIONALIZED BENDING
- OVERLOAD PROTECTION
- SIGHT GLASS ON TANK FOR EASY OIL CHECKS
BACK GAUGE SYSTEM
- X-AXIS IS DRIVEN BY DIGITAL AC SERVO-MOTORS
WITH BALL SCREW AND LINEAR WAYS
- BACK GAUGE IS A BOX TUBE DESIGN FOR MECHANICAL
STRENGTH OF RIGIDITY
- FINGERS ARE DESIGNED TO INCREASE THE WORKING
RANGE OF BACK GAUGE
- INTEGRAL HYDRAULIC CROWNING SYSTEM BUILT INTO
THE BED, PROGRAMMED THROUGH THE DELEM CONTROL
- SPECIAL 3-PIECE DESIGN OF THE BED TO INCREASE
THE PRECISION
STANDARD TOOLING AND CONFIGURATION
- UPPER TOOL CLAMPING: EUROPEAN/AMERICAN
- LOWER DIE RAIL WITH STANDARD US TANG

OPTION AVAILABLE - PRICE ON REQUEST
- BACK GAUGE OPTIONS
X1 PRIME STROKE +/- 3.94" (REQUIRES DA-66T)
6 AXIS UPGRADE X1, X2, R1, R2, Z1, Z2
(REQUIRES DA-66T)
- THROAT DEPTH
*3.9" EXTRA THROAT DEPTH
*7.9" EXTRA THROAT DEPTH
- STROKE OPENING
*3.9" EXTRA STROKE/OPENING
*7.9" EXTRA STROKE/OPENING
*11.8" EXTRA STROKE/OPENING
*=WHEN SELECTING THIS OPTION, MACHINE
SPECIFICIATIONS SUCH AS HEIGHT, WEIGHT, AND
MATERIAL ENTRY HEIGHT WILL CHANGE FROM THE
STANDARD MACHINE SPECIFICATIONS.
- CLAMPING
REVERSIBLE EURO/AMERICAN FAST CLAMP UPGRADE
(20 REQUIRED)
- DELEM PROFILE T2D SOFTWARE DA-58T OR DA-66T
- DELEM PROFILE T3D SOFTWARE DA-66T
- DELEM OP-W-3DVISUALIZATION FOR CONTROL
