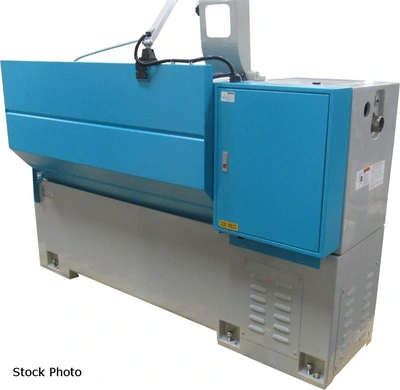

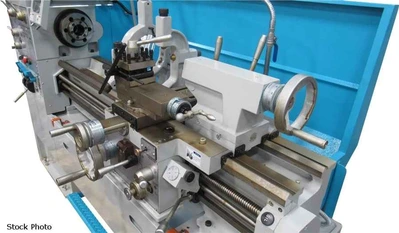

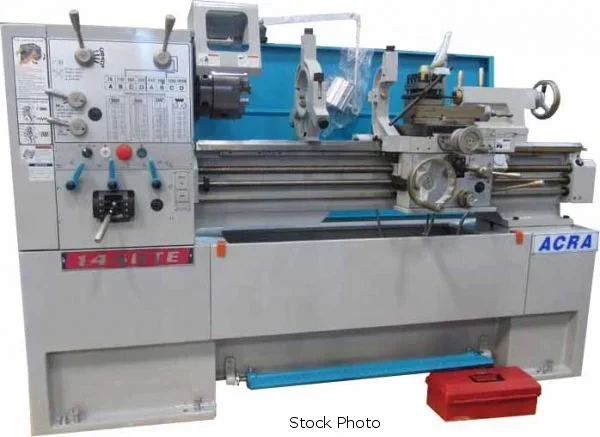

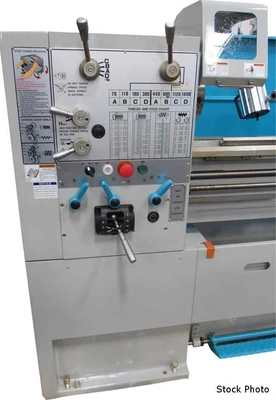

ACRA (NEW) MODEL 1440TE PRECISION ENGINE LATHE
14-3/16" SWING OVER BED
8-3/8" SWING OVER CROSS SLIDE
21" SWING IN GAP
4-1/2" GAP IN FRONT OF FACE PLATE
10-1/4" BED WIDTH
40" BETWEEN CENTERS
SPINDLE NOSE
- D1-6 SPINDLE NOSE
- 2-1/16" SPINDLE BORE
- MT#6 SPINDLE BORE TAPER
- 70-1800 SPINDLE RPM (8 SPEEDS)
TRAVELS
- 8-11/16" CROSS SLIDE TRAVEL
- 5-1/2" COMPOUND SLIDE TRAVEL
THREADS AND FEEDS
- 2-72 TPI (45) INCH THREADS
- .2-14 PITCH (39) METRIC THREADS
- .3-3.5 (18) MODULE THREADS
- 8-44 (21) DIAMETRICAL THREADS
- .002-.067 IPR LONGITUDINAL FEED
- .001-.034 IPR CROSS FEED
TAIL STOCK
- 2" QUILL DIAMETER
- 6" QUILL TRAVEL
- MT#4 QUILL TAPER
5 HP MOTOR
230/460 VOLT 3 PHASE
STANDARD EQUIPMENT
- 8" 3-JAW CHUCK
- 10" 4-JAW CHUCK
- STEADY/FOLLOW REST
- COOLANT SYSTEM
- HALOGEN LIGHT
- 4-WAY TOOL HOLDER
- FULL LENGTH SPLASH GUARD
- CHUCK GUARD
OPTIONS AVAILABLE - PRICE ON REQUEST
- FACE PLATE
- MICRO BED STOP
- TAPER ATTACHMENT ( INSTALLATION)
- LEVER TYPE 5C COLLET CLOSER JFK
- DIGITAL READOUTS-NEWALL, ACU-RITE,SONY, FAGOR
- DRO INSTALLATION
- IMPORT QUICK CHANGE TOOL HOLDER
- LIVE CENTER MT#4
Power: 230/460 (3-Phase)
