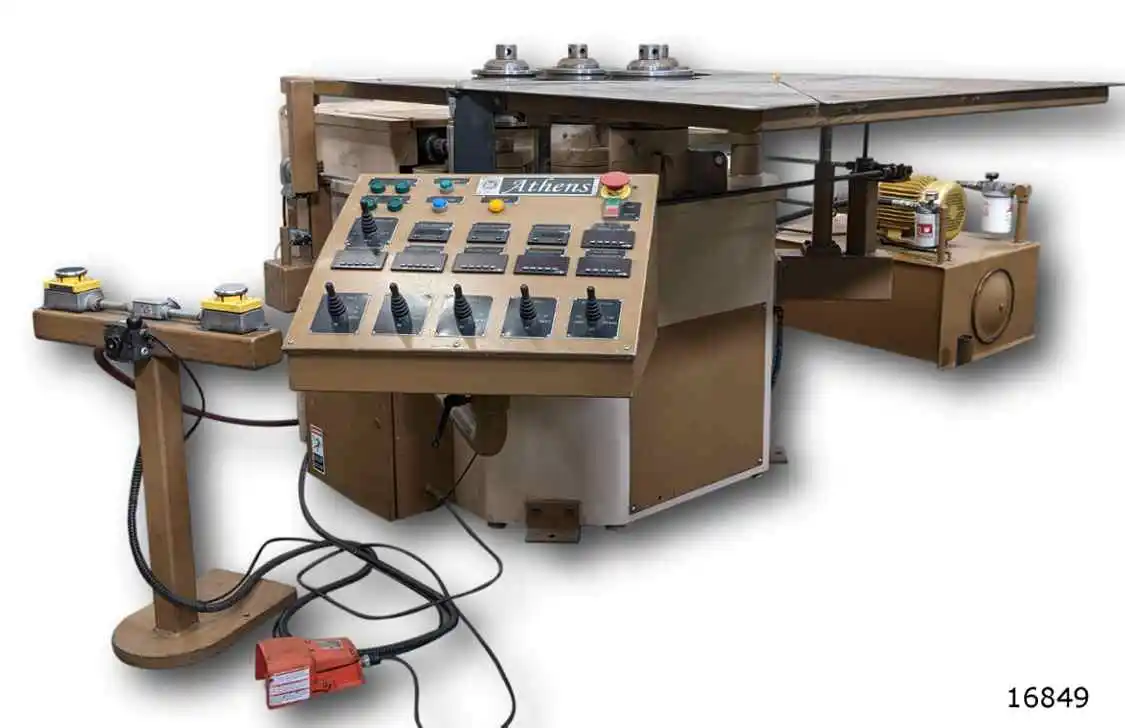

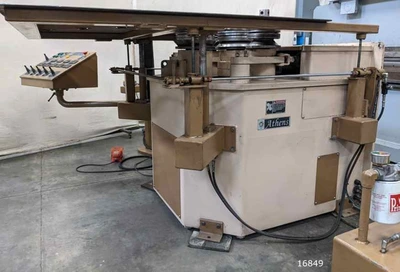

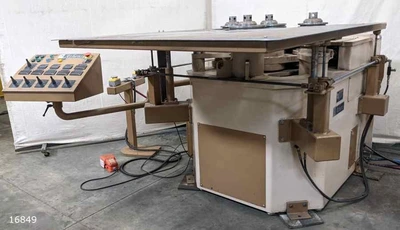

USED 2019 ATHENS AAR-34X

ATHENS (USED) MODEL AAR-34X 4-ROLL SECTION
BENDING ROLL WITH AUTO CYCLE

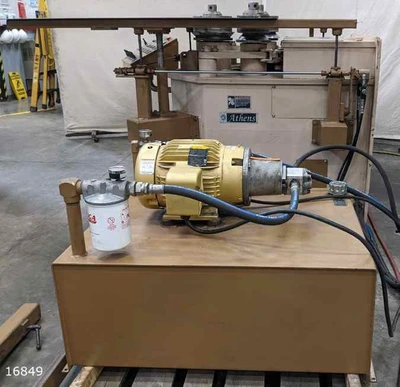

5 HP MOTOR
7.5" ROLL DIAMETER
15 TONS BENDING PRESSURE
2-1/2" MAIN SHAFT DIAMETER
0.38" SECTION MODULUS
MECHANICAL/SPUR DRIVE TYPE
MANUAL GUIDE ROLL ADJ
HORIZONTAL OR VERTICAL OPERATION

CAPACITY
- FLAT ON FLAT - 3/4" X 4 ; 5/8" X 6" - 15" DIA
- FLAT ON EDGE - 1/2" X 2-1/2" - 20" DIA
- SQUARE BAR - 1-3/8" X 1-3/8" - 16" DIA
- ROUND BAR - 1-1/2" - 15" DIA
- SCHEDULE 40 PIPE - 1-1/2" - 16" DIA
- SCHEDULE 80 PIPE - 1-1/2" - 16" DIA
- SCHEDULE 120 PIPE - 1-1/2" - 16" DIA
- SCHEDULE XXH STEEL PIPE - 1-1/4" - 16" DIA
- ROUND TUBE - 2-3/8" X 12 GA - 24" DIA
- SQUARE TUBE - 2" X 11 GA - 22" DIA
- RECTANGLE TUBE - 2" X 1-1/4" X 11 GA - 18" DIA
- CHANNEL - FLANGE OUT - C3 X 4.1# - 18" DIA
- CHANNEL - FLANGE IN - C3 X 4.1# - 18" DIA

OPTIONS INCLUDED
- SLIDING WAY COVER/HORIZONTAL POSITION CAPACITY

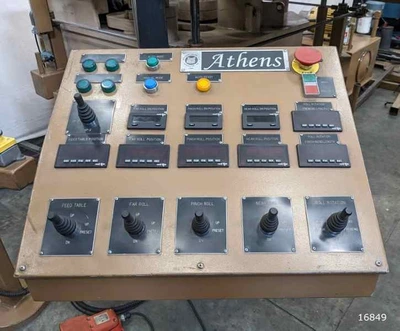

- 425-4 AUTO CONTROL
- SPECIAL DIES TO ROLL DRIP RING ON EDGE, CONICAL
AND FLAT
Power: 460 (3-Phase)
