| Dimensions | 71" X 72" X 112" | 71" X 72" X 112" |
| Weight | 10,500 | 10,500 |

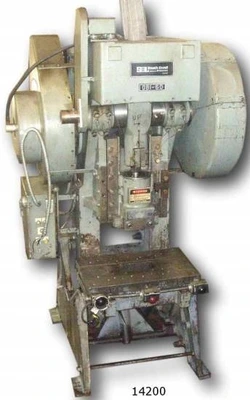

JOHNSON (USED) MODEL 60BC-AC OBI PUNCH PRESS
60 TON BACK GEARED
AIR CLUTCH AND BRAKE
4" STROKE
46 STROKES PER MINUTE
32" X 21" BED
16" X 11" BED OPENING
12-1/2" DIE SPACE
13-1/4" X 11-1/2" RAM
15-1/2" OPENING IN FRAME BACK
13-1/4" X 11-1/2" RAM FACE
3-1/2" RAM ADJUSTMENT
2-1/2" SHANK HOLE
32" X 21" X 3" BOLSTER
OPERATOR CONTROL STATION
KEY SELECTOR - OFF/ INCH / SINGLE / CONTINUOUS
MANUAL LUBRICATION
PARTS MANUAL
7-1/2 HP, 3 PHASE, 230/460 VOLTS
Power: 230/460 (3-Phase)
