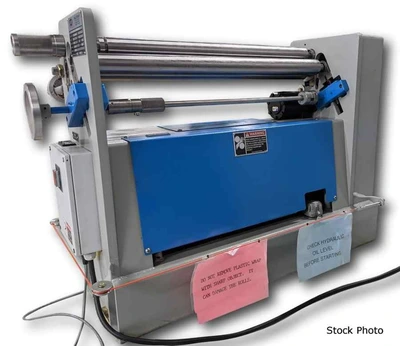

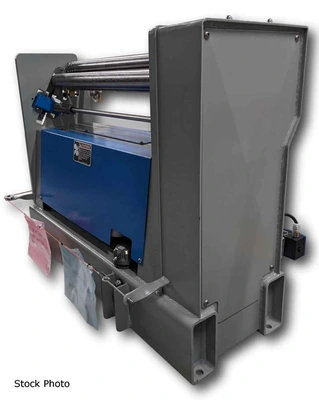

NEW WALDEMAR WDM B-2.6-48

WALDEMAR (NEW) MODEL WDM B-2.6-48
INITIAL PINCH SHEET BENDING ROLL

2.6" NOMINAL TOP ROLL DIAMETER
ROLLING CAPACITY
- 20 GAUGE MILD STEEL PLATE X 4' WIDE
- 10.4" DIAMETER
ELECTRONICS TO NFPA 79 SPECIFICATIONS
230 VOLT, 3 PHASE, 2 HP TEFC MOTOR
1045 STEEL ROLLS

FEATURES
- TOTAL HYDRAULIC OPERATION

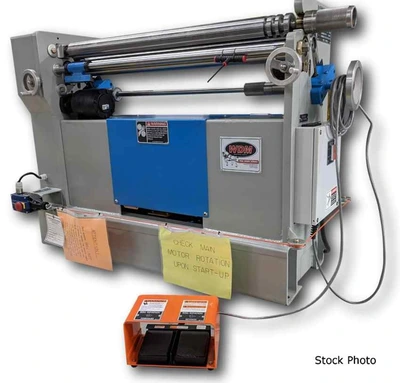

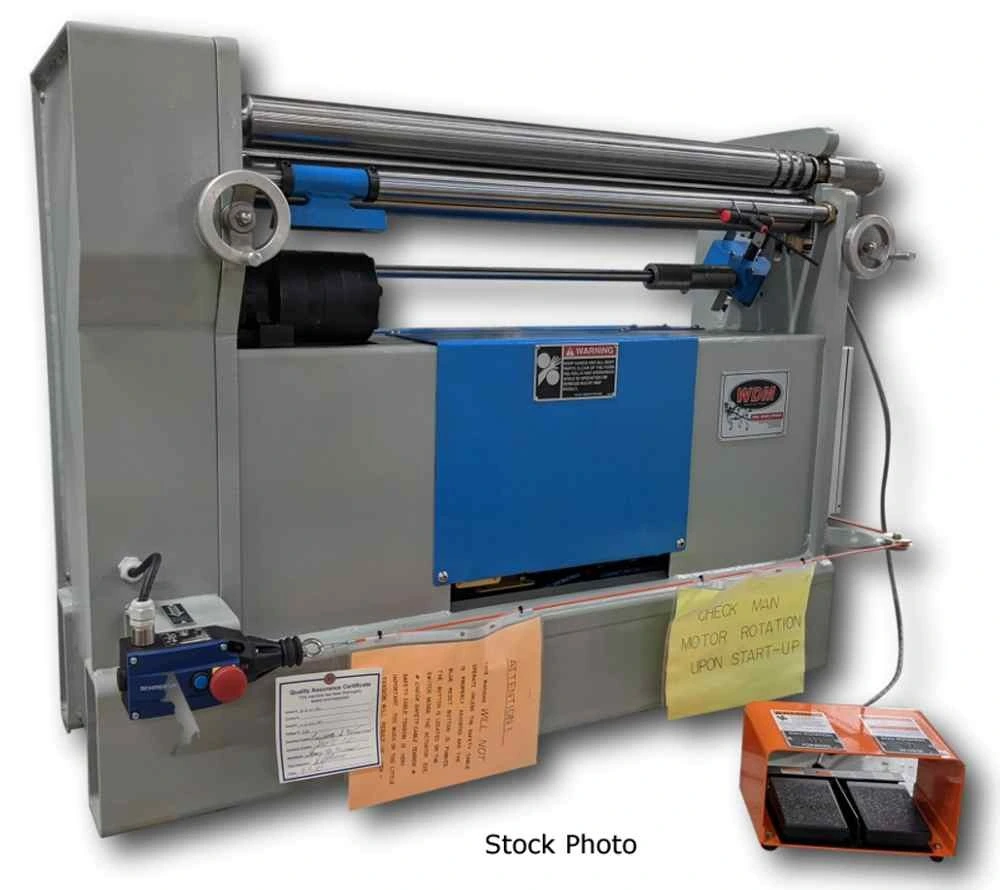

- FORWARD REVERSE FOOT PEDAL FOR ROLL ROTATION
- 2-ROLL DRIVE
- 120 VOLT CONTROL CIRCUIT
- PINCH ROLL STARTING GROOVE
- OVERLOAD PROTECTED
- QUIET HYDRAULIC SYSTEM
- SEALED SPHERICAL ROLLER BEARINGS ON ALL
MAIN POINTS
- MANUALLY OPERATED DROP END COLLAR WITH SWING-
OUT TOP ROLL

OPTIONS INCLUDED
- HARDENED AND POLISHED ROLLS
55-60 RC FLAME HARDENED 1045 MATERIAL
- CONE ATTACHMENT
- CIRCULAR GROOVES IN ROLLS FOR ROLLING RODS
OR SHEETS WITH WIRE EDGES 3/8", 1/2", AND 5/8"

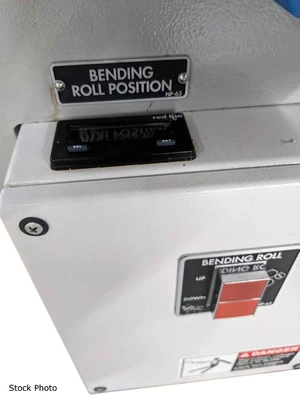

- ELECTRIC DRO
Power: 230 (3-Phase)
