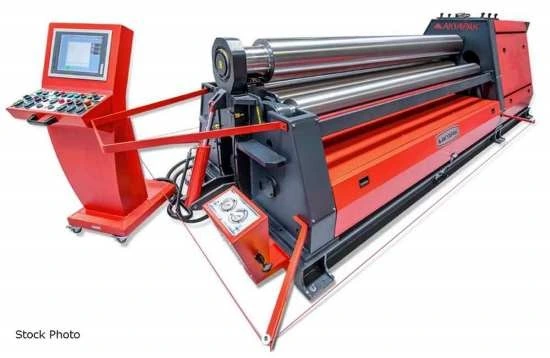

NEW AKYAPAK AHS 20/06
Overview
Specifications
| Weight | 7,606 | 7,606 |
|---|
AKYAPAK (NEW) MODEL AHS 20/06 4-ROLL PLATE ROLLING MACHINE
6' WORKING LENGTH
4 NUMBER OF ROLLS
MAX THICKNESS WITH 36,000 PSI YIELD POINT
- 1/4" PRE-BENDING
- 5/16" BENDING
TRD X 3.0 MINIMUM DIAMETER
7.5" TOP ROLL
6.7" BOTTOM ROLL
5.9" SIDE ROLLS
4 HP
FEATURES
- CONE BENDING DEVICE
- INDUCTION-HARDENED ROLLS
- DIGITAL READOUT FOR SIDE ROLLS
- FULLY WELDED STEEL (ST-52) FRAME
- SEPARATE MOVEABLE CONTROL PANELS
- DUAL BENDING SPEEDS
- ALL ROLLS ARE MOUNTED IN SPHERICAL ROLLER BEARINGS
- HYDRAULICALLY OPENED/CLOSED DROP END CONTROLLED FROM THE CONTROL PANEL
- ACTIVATION OF CONE ROLLING FUNCTION AND POSITION ADJUSTMENT VIA BOTTOM
ON THE CONTROL PANEL
- CENTRAL ROLLS (TOP AND BOTTOM ROLLS) DRIVEN BY HYDRAULIC MOTORS AND PLANETARY
GEAR REDUCERS
- ELECTRO-HYDRAULIC CALIBRATION
- VARIABLE SPEED OF ROTATION
- OIL COOLER
OPTIONS AVAILABLE - PRICE ON REQUEST
- AK400 CNC
- AK300 NC - TOTAL 6 AXES
- CENTRAL SUPPORT
- SIDE SUPPORT
- VARIABLE SPEED OF ROTATION
- MATERIAL FEEDING TABLE
- MATERIAL EJECTOR
- DEFLECTION COMPENSATION SYSTEM
Power: 480 (3-Phase)
