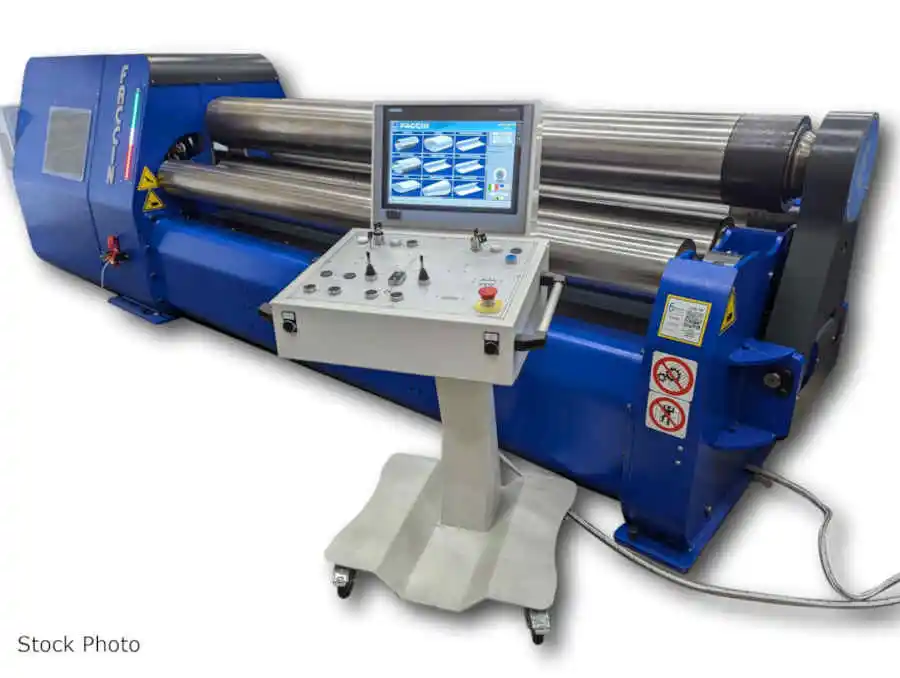

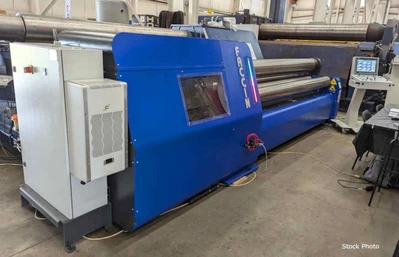

NEW FACCIN 4HEP-MPE 3130 S54

FACCIN (NEW) MODEL 4HEP-3130 S54 PLATE ROLL

4 PLANETARY ROLLS
120" PLATE WIDTH
11.81" TOP ROLL DIAMETER
11.22" LOWER ROLL DIAMETER
8.86" SIDE ROLLS DIAMETER
26.2 FPM ROTATION SPEED
15 HP

FULL-LENGTH CAPACITY AT 37.7 KSI
- 0.60" BENDING THICKNESS WITH 59" INSIDE DIA.
- 0.40" PRE-BEND THICKNESS WITH 59" INSIDE DIA.

STANDARD EQUIPMENT
- HARDENED AND POLISHED ROLLS

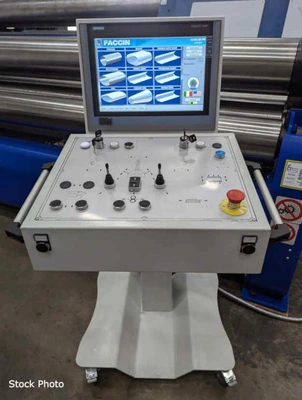

- CONTROL CONSOLE ON WHEELS WITH DIGITAL READOUTS
- CONE BENDING WITH ELEC CTRL TOP ROLL TILTING
- PLANETARY SYSTEMS FOR SIDE ROLLS MOVEMENT
- ULTRA-WIDE ROLL BEARING HOUSINGS ON PINCH ROLL
- 4 LARGE BEARINGS SUPPORT THE PINCHING ROLL
- CENTRALIZED PUMP LUBRICATION SYSTEM
- EXTRA LARGE DOUBLE SHAFT DROP END
- ELECTRONIC BALANCING FOR ROLL SYNCRONIZATION
- SYNAPTIC CONTROL FOR EASY MAINTENANCE
- ELECTRONIC SENSORS FOR PINCH ROLL MONITORING
- EXTRA TORQUE AND SPECIAL BRAKING POWER SYSTEM
- SILENT OPERATION
- MACHINE PREPARED FOR FUTURE UPGRADES
- PERIMETER CABLE-PULL SWITCHES FOR EMERGENCY
STOP
- DESIGNED AND MANUFACTURED WITH UL STANDARD

OPTIONS AVAILABLE - PRICE ON REQUEST
- UPGRADED CONTROL SYSTEMS
- LATERAL DRIVEN SIDE ROLL
- SHOCK ABSORBER ON PINCH ROLL
- WIRELESS REMOTE CONTROL
- TOP SUPPORT
- SIDE SUPPORT
- CLAMPING SYSTEM FOR ON BOARD TACK WELDING
- AUTOMATIC FEEDING TABLE
- ALIGNMENT SYSTEM FOR FEED TABLE
- SAFETY LIGHT CURTAINS
FACCIN (NEW) 4 ROLL PLATE ROLL
MODEL- 4HEP-MPE 3130

SPECIFICATIONS
- 4 INDEPENDENT BEARINGS SUPPORTING
PINCHING ROLLS (MCS)
- PINCHING ROLL BEARING SEATS WITH
DOUBLE WIDTH (WHS)
- ELECTRONIC SYNCHRONISATION OF ROLL
PARALLELISM (EPS)
- HARDENED AND POLISHED ROLLS
- CONICAL DEVICE
- EMERGENCY BARRIER AROUND THE MACHINE

FEATURES
- CENTRAL AND SIDE SUPPORTS
- MOTORISED FEEDING/SQUARING TABLE
- AUTOMATIC LOADING/UNLOADING SYSTEMS
- REMOTE SERVICE MANAGEMENT
- SIDE MOTORISED ROLLS
- AUTOMATIC EJECTOR
