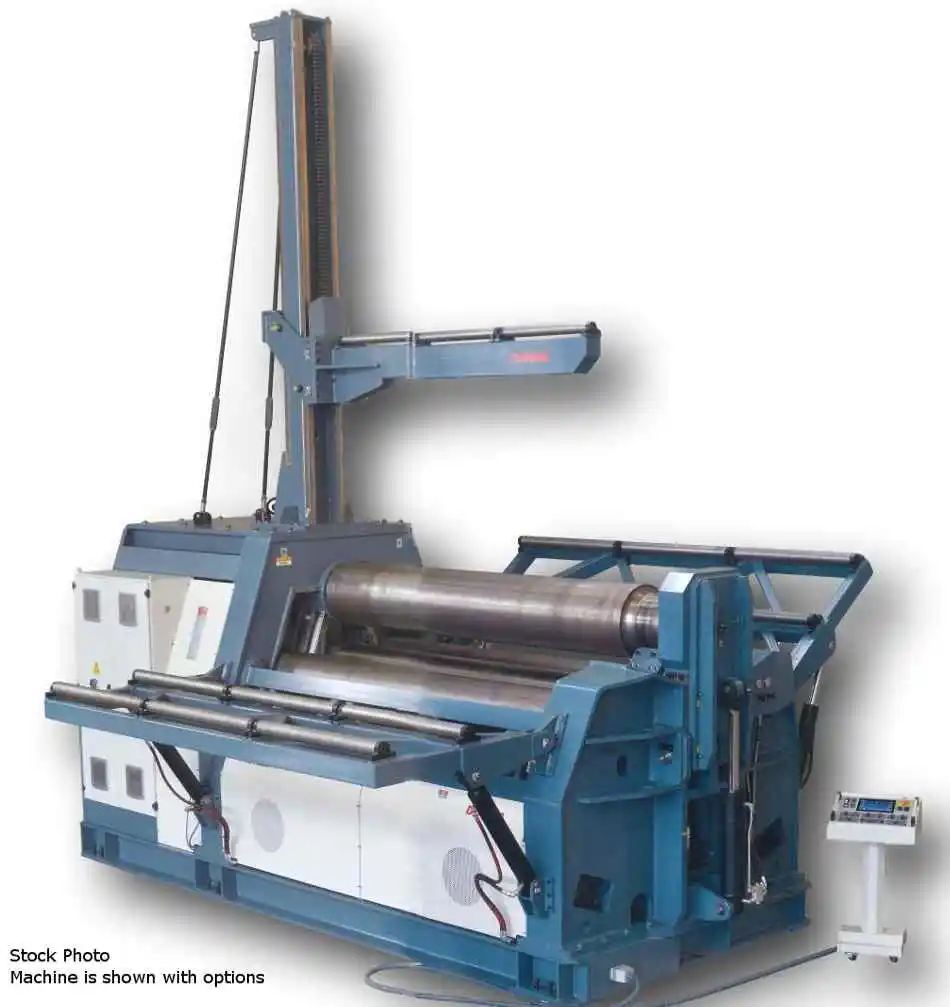

NEW DURMA HRB-4 20220

DURMA (NEW) MODEL HRB-4 20220
HYDRAULIC 4-ROLL BENDING MACHINE

80.71" BENDING LENGTH

FULL-LENGTH BENDING CAPACITY
- 43.3" INSIDE DIAMETER AT .394" THICK
- 13" INSIDE DIAMETER AT .315" THICK

FULL-LENGTH PRE-BENDING CAPACITY
- 43.3" INSIDE DIAMETER AT .315" THICK
- 13" INSIDE DIAMETER AT .236" THICK

8.66" TOP ROLL
8.66" BOTTOM ROLL
7.08" SIDE ROLLS
33" WORKING HEIGHT
10 HP
42 GALLON HYDRAULIC TANK CAPACITY

STANDARD EQUIPMENT
- PLC CONTROL SYSTEM
- ADJUSTABLE TURNING SPEED
- CONICAL BENDING
- INDUCTION HARDENED ROLLS
- ELECTRONIC SYNCHRONIZED SIDE ROLLS
- PLANETARY ROLL DESIGN
- MECHANICAL SYNCHRONIZED BOTTOM ROLL
- SAFETY WIRE AROUND MACHINE
- EMERGENCY STOP BUTTON ON CONTROL PANEL
- STRESS-RELIEVED STEEL CONSTRUCTION BODY
- SEALED SPHERICAL ROLLER BEARINGS
- TOP ROLL HYDRAULIC OPENING
- OVERLOAD PROTECTION
- HIGH-TENSILE CARBON STEEL ROLLS
- 2-ROLL DRIVE SYSTEM
- 4-ROLL DRIVE SYSTEM
- FIXED TOP ROLL
- ADJUSTABLE PINCHING PRESSURE
- MANUAL LUBRICATION
- USER MANUAL
- CE

OPTIONS AVAILABLE - PRICE ON REQUEST
- 10" TOUCH SCREEN NC CONTROL VARIABLE SPEED
- 15" TOUCH SCREEN CNC CONTROL VARIABLE SPEED
- VARIABLE SPEED
- HYDRAULIC VERTICAL SUPPORT
- SIDE SUPPORT SYSTEM
- NC CONTROL FOR VERTICAL AND/OR SIDE SUPPORTS
- MATERIAL FEEDING TABLES
- RADIUS MEASUREMENT
- POLISHED ROLLS
- OIL COOLER
- OIL HEATER
- AUTOMATIC CENTRALIZED LUBRICATION SYSTEM
