Overview
Type:
Plate Bending Rolls including Pinch
Manufacturer:
WALDEMAR
Model:
WDM 403-9-12
Stock #:
062661
Specifications
Dimensions202 X 44 X 41202 X 44 X 41
Weight15,10015,100

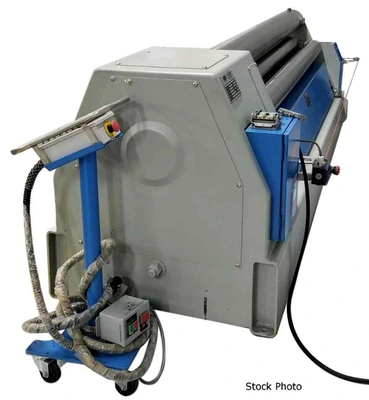

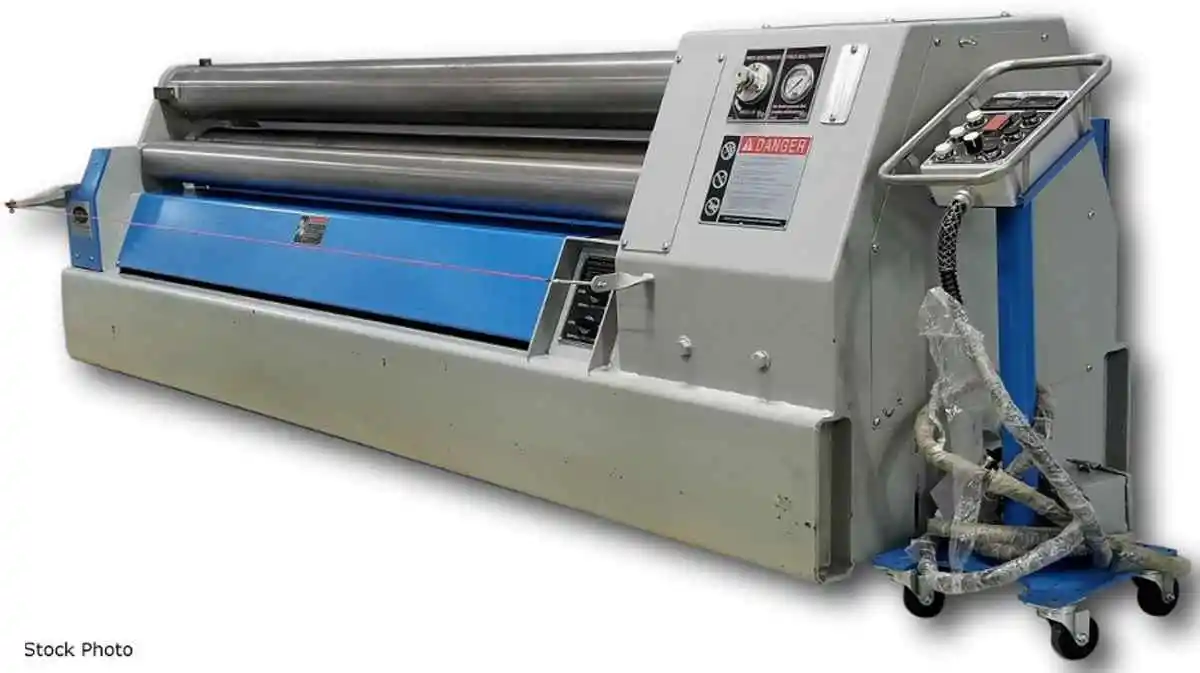

WALDEMAR (NEW) MODEL WDM 403-9-12 HYD. 4-ROLL
DOUBLE PINCH PLATE BENDING MACHINE

0.17" X 12' RATED CAPACITY
DOUBLE PINCH PLATE ROLL
9" NOMINAL TOP ROLL DIAMETER
10 HP, 3 PHASE MOTOR
230/460 VOLTS
0-22 FPM INFINITELY VARIABLE ROLL SPEED
- (0-14) FPM ON LARGER MACHINES)

STANDARD FEATURES

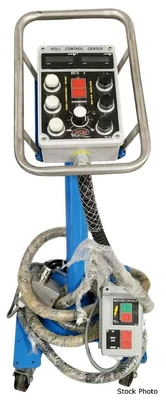

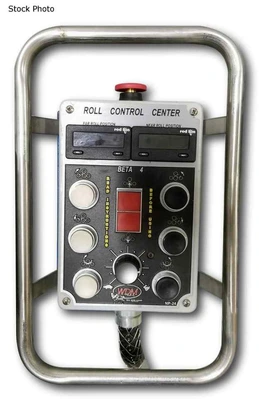

- BETA 4.2 MANUAL CONTROL
- 1045 STEEL ROLLS MACHINED TO 63 MICRO INCH
- TOTAL HYDRAULIC OPERATION
- INSTANT START, STOP, AND REVERSE
- 2-ROLL DRIVE
- ELECTRONICS MEET NFPA 79 SPECIFICATIONS
- 24C-120 AC CONTROL CIRCUIT
- OVERLOAD PROTECTION
- SEALED SPHERICAL ROLLER BEARINGS
- SAFETY/EMERGENCY STOP CABLE
- TEFC MAIN MOTOR
- QUIET HYDRAULIC SYSTEM
- HYDRAULICALLY ACTUATED DROP END
- COMPACT, STREAMLINED, WELDED STEEL FRAME

OPTIONS AVAILABLE - PRICE ON REQUEST
- CONE ATTACHMENT
- HEAVY-DUTY CONE ATTACHMENT
- HARDENED ROLLS
- HARDENED AND POLISHED ROLLS
55-60 RC FLAME HARDENED 1045 MATERIAL
- CIRCULAR GROOVES
- STARTING GROOVES
- SIDE SUPPORTS
- OVERHEAD SUPPORTS
- UPGRADE TO PRE 4.2 SEMI-AUTOMATIC CONTROL
- UPGRADE TO AUTO 4.2 AUTOMATIC CONTROL
Power: 230/460 (3-Phase)
