NEW WALDEMAR WDM K-7-10
Overview
Specifications
| Dimensions | 156 X 28 X 38 | 156 X 28 X 38 |
|---|---|---|
| Weight | 6,317 | 6,317 |
WALDEMAR (NEW) MODEL WDM K-7-10 HYDRAULIC
INITIAL PINCH PLATE BENDING MACHINE
1/8" X 10' CAPACITY AT 28" DIAMETER
11/64" X 10' CAPACITY AT 84" DIAMETER
7" NOMINAL TOP ROLL DIAMETER
2" X 3/4" BAR ON EDGE
0-22 FPM ROLL SPEED
230/460 VOLT, 3 PHASE 5 HP TEFC MOTOR
STANDARD FEATURES

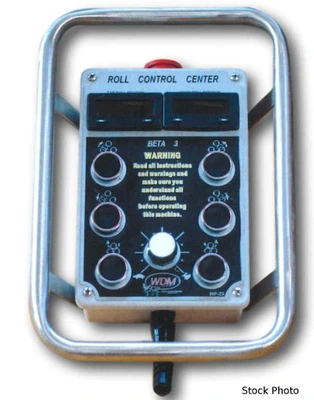

- BETA 3 MANUAL CONTROL
- 1045 STEEL ROLLS
- TOTAL HYDRAULIC OPERATION
- INSTANT START, STOP AND REVERSE
- 2-ROLL DRIVE
- 120 VOLT CONTROL CIRCUIT
- QUIET HYDRAULIC SYSTEM
- ELECTRONICS MEET NFPA 79 SPECIFICATIONS
- OVERLOAD PROTECTION
- SEALED SPHERICAL ROLLER BEARINGS
- ROLLS TILT FOR CONE ROLLING
- ROLLS DRIVEN THROUGH PLANETARY TYPE SPEED
REDUCERS OR SPUR GEAR DRIVES
- DIAL POINTER TYPE ROLL POSITION INDICATORS
- HORIZONTAL STARTING GROOVE IN PINCH ROLL
- HYDRAULICALLY ACTUATED DROP END
OPTIONS AVAILABLE - PRICE ON REQUEST
- CONE ATTACHMENT
- HEAVY-DUTY CONE ATTACHMENT
- HARDENED ROLLS
- HARDENED AND POLISHED ROLLS
55-60 RC FLAME HARDENED 1045 MATERIAL
- CIRCULAR GROOVES IN ROLLS FOR ROLLING RODS
OR SHEETS WITH WIRE EDGES 3/8", 1/2", AND 5/8"
- ADDITIONAL STARTING GROOVE
- SIDE SUPPORTS
- OVERHEAD SUPPORTS
- FOOT SWITCH
- PRE 3 CONTROL
- CONE 3 CONTROL
Power: 230/460
