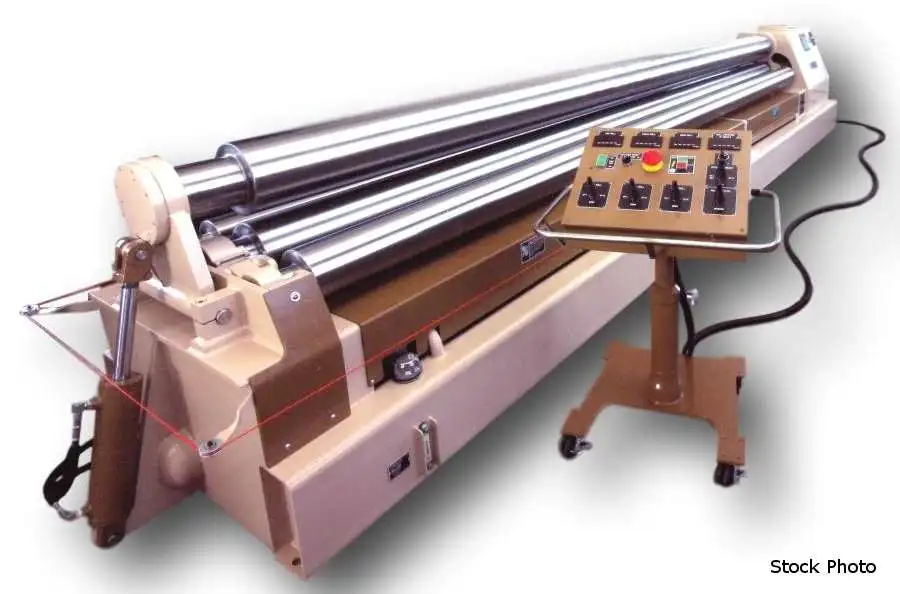

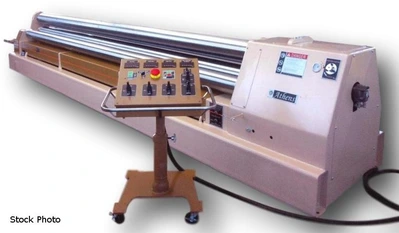

NEW ATHENS A403-9-14

ATHENS (NEW) MODEL A403-9-14 HYDRAULIC 4-ROLL
DOUBLE PINCH PLATE BENDING MACHINE

9" NOMINAL TOP ROLL DIAMETER
0.156" MILD STEEL PLATE TO 30" DIAMETER X 14'
10 GAUGE 50 KSI SHEET TO 30" DIAMETER X 14'
10 HP, 230/460 VOLTS, 3 PHASE
0-21 FPM INFINITELY VARIABLE ROLL SPEED

STANDARD FEATURES
- HYDRAULIC DRIVE TRAIN
- INSTANT START, STOP, AND REVERSE
- ELECTRONICS MEET NFPA 79 SPECIFICATIONS
- NEMA 12 OR BETTER ENCLOSURE
- OIL TIGHT PUSH BUTTONS
- THERMAL OVERLOAD PROTECTION
- LOW VOLTAGE ON CONTROL CIRCUIT
120V AC OR 24V DC
- 2-ROLL DRIVE
- SEALED SPHERICAL ROLLER BEARINGS
- LSHT HYDRAULIC DRIVE MOTOR
- MULTIPLE PUSH BUTTON E-STOPS AROUND MACHINE
- DIAL/POINTER INDICATORS

OPTIONS AVILABLE - PRICE ON REQUEST
- CONE ATTACHMENT
- HEAVY-DUTY CONE ATTACHMENT
- PINCH ROLL ANGLING FOR LONG CONE ROLLING
- HARDENED AND/OR POLISHED ROLLS
28-32 RC
55-60 RC
- HORIZONTAL GROOVE
- SIDE SUPPORTS
- OVERHEAD SUPPORTS - UP TO 12' DIAMETER WORK PC
- ADJUSTABLE ANGLE TELESCOPING OVERHEAD SUPPORT
- ROVING PENDANT CONTROL (WITH OR WITHOUT DRO)
- ROVING PENDANT CONTROL WITH DRO
- AUTO OR SEMI-AUTO CONTROL
- POWERED INFEED TABLE
Power: 230/460 (3-Phase)
