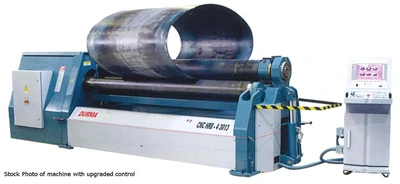

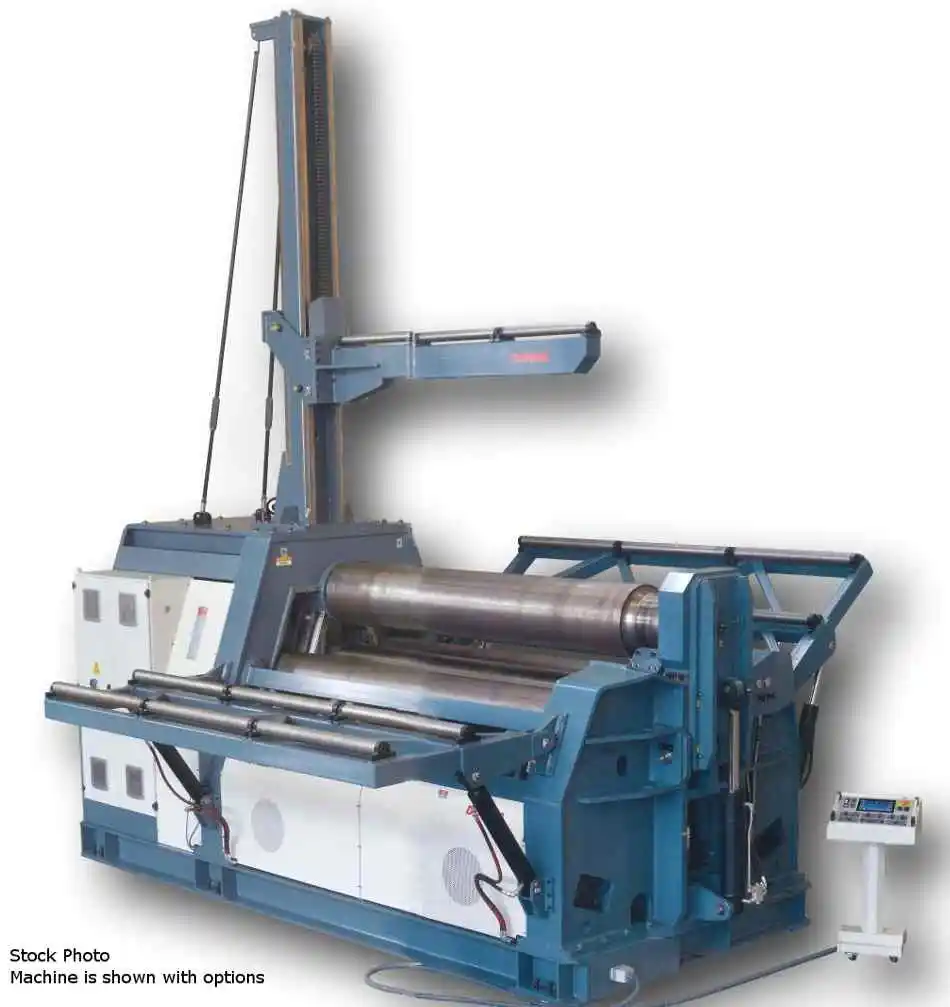

NEW DURMA HRB-4 20200

DURMA (NEW) MODEL HRB-4 20200 PLATE ROLL

80.71" BENDING LENGTH

FULL-LENGTH BENDING CAPACITY
- 39.37" INSIDE DIAMETER X 0.31" THICK
- 11.81" INSIDE DIAMETER X 0.24" THICK

FULL-LENGTH PRE-BENDING CAPACITY
- 39.37" INSIDE DIAMETER X 0.24" THICK
- 11.81" INSIDE DIAMETER X 0.20" THICK

7.87" TOP ROLL
7.87" BOTTOM ROLL
7.48" SIDE ROLLS
33" WORKING HEIGHT
10 HP
42 GALLON HYDRAULIC TANK CAPACITY

STANDARD EQUIPMENT

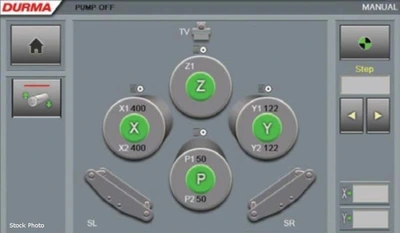

- 7" TOUCH SCREEN PLC CONTROL
- CONICAL BENDING
- INDUCTION HARDENED ROLLS
- ELECTRONIC SYNCHRONIZED SIDE ROLLS
- PLANETARY ROLL DESIGN
- MECHANICAL SYNCHRONIZED BOTTOM ROLL
- SAFETY WIRE AROUND MACHINE
- EMERGENCY STOP BUTTON ON CONTROL PANEL
- STRESS-RELIEVED STEEL CONSTRUCTION BODY
- SEALED SPHERICAL ROLLER BEARINGS
- TOP ROLL HYDRAULIC OPENING
- OVERLOAD PROTECTION
- HIGH-TENSILE CARBON STEEL ROLLS
- 2-ROLL DRIVE SYSTEM [top roll 7.87-16.93" dia]
- 4-ROLL DRIVE SYSTEM [top roll 16.93" dia]
- FIXED TOP ROLL [top roll 7.87-16.93" dia]
- ADJUSTABLE PINCHING PRESSURE
- MANUAL LUBRICATION
- USER MANUAL
- CE

OPTIONS AVAILABLE - PRICE ON REQUEST
- 10" TOUCH SCREEN NC CONTROL VARIABLE SPEED
- 15" TOUCH SCREEN CNC CONTROL VARIABLE SPEED
- VARIABLE SPEED
- HYDRAULIC VERTICAL SUPPORT
- SIDE SUPPORT SYSTEM
- NC CONTROL FOR VERTICAL AND/OR SIDE SUPPORTS
- MATERIAL FEEDING TABLES
- RADIUS MEASUREMENT
- POLISHED ROLLS
- OIL COOLER
- OIL HEATER
- AUTOMATIC CENTRALIZED LUBRICATION SYSTEM
