NEW DURMA HRB-4 15170
Overview
Specifications
| Dimensions | 123 X 39 X 45 | 123 X 39 X 45 |
|---|---|---|
| Weight | 6,284 | 6,284 |
DURMA (NEW) MODEL HRB-4 15170 PLATE ROLL
61.02" BENDING LENGTH
FULL-LENGTH BENDING CAPACITY
- 33.46" INSIDE DIAMETER X 0.31" THICK
- 10.04" INSIDE DIAMETER X 0.24" THICK
FULL-LENGTH PRE-BENDING CAPACITY
- 33.46" INSIDE DIAMETER X 0.24" THICK
- 10.04" INSIDE DIAMETER X 0.20" THICK
6.69" TOP ROLL
6.69" BOTTOM ROLL
5.9" SIDE ROLLS
34" WORKING HEIGHT
7 HP
23 GALLON HYDRAULIC TANK CAPACITY
STANDARD EQUIPMENT

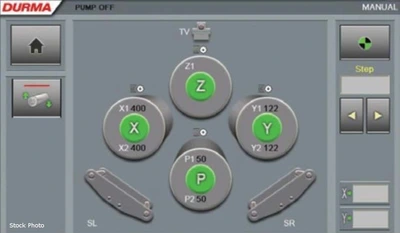

- 7" TOUCH SCREEN PLC CONTROL
- CONICAL BENDING
- INDUCTION HARDENED ROLLS
- ELECTRONIC SYNCHRONIZED SIDE ROLLS
- PLANETARY ROLL DESIGN
- MECHANICAL SYNCHRONIZED BOTTOM ROLL
- SAFETY WIRE AROUND MACHINE
- EMERGENCY STOP BUTTON ON CONTROL PANEL
- STRESS-RELIEVED STEEL CONSTRUCTION BODY
- SEALED SPHERICAL ROLLER BEARINGS
- TOP ROLL HYDRAULIC OPENING
- OVERLOAD PROTECTION
- HIGH-TENSILE CARBON STEEL ROLLS
- 2-ROLL DRIVE SYSTEM [top roll 7.87-16.93" dia]
- 4-ROLL DRIVE SYSTEM [top roll 16.93" dia]
- FIXED TOP ROLL [top roll 7.87-16.93" dia]
- ADJUSTABLE PINCHING PRESSURE
- MANUAL LUBRICATION
- USER MANUAL
- CE
OPTIONS AVAILABLE - PRICE ON REQUEST
- 10" TOUCH SCREEN NC CONTROL VARIABLE SPEED
- 15" TOUCH SCREEN CNC CONTROL VARIABLE SPEED
- VARIABLE SPEED
- HYDRAULIC VERTICAL SUPPORT
- SIDE SUPPORT SYSTEM
- NC CONTROL FOR VERTICAL AND/OR SIDE SUPPORTS
- MATERIAL FEEDING TABLES
- RADIUS MEASUREMENT
- POLISHED ROLLS
- OIL COOLER
- OIL HEATER
- AUTOMATIC CENTRALIZED LUBRICATION SYSTEM
