Overview
Type:
Plate Bending Rolls including Pinch
Manufacturer:
ATHENS
Model:
A403-13-12
Stock #:
062406
Specifications
Dimensions209 X 47 X 50209 X 47 X 50
Weight33,00033,000

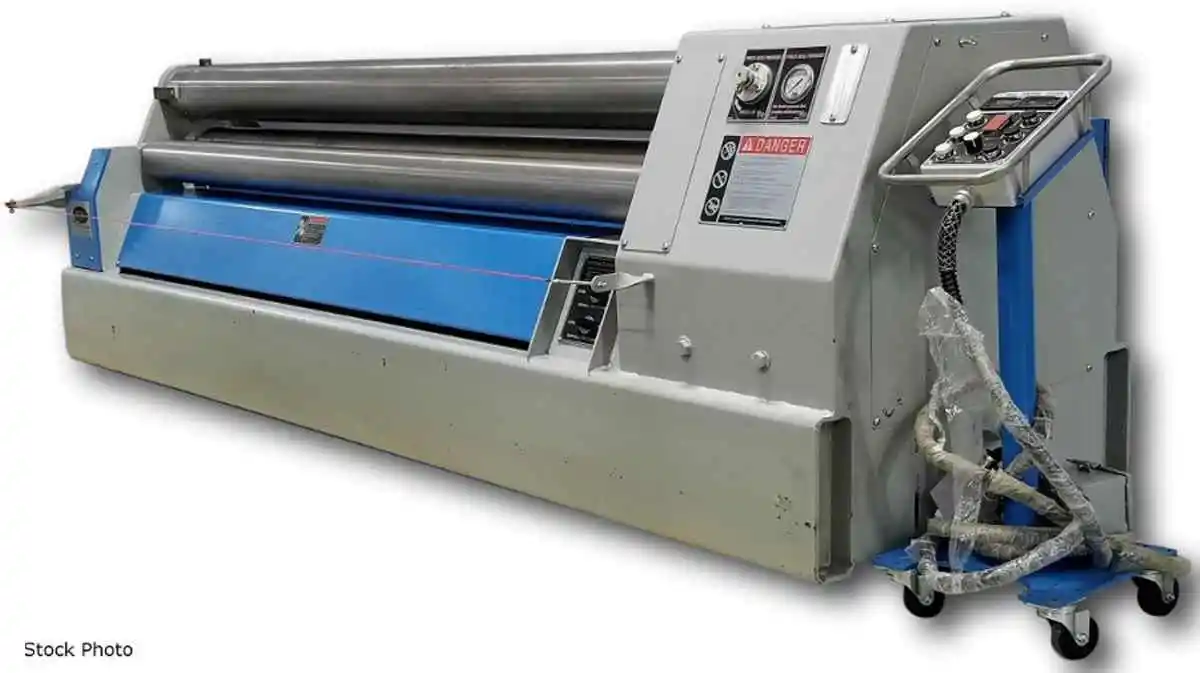

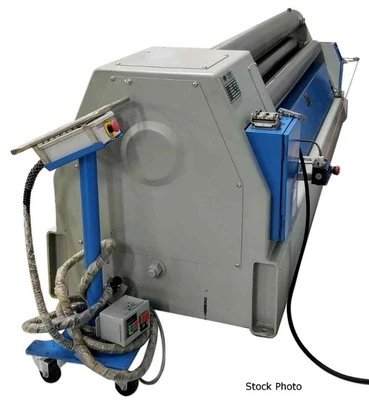

ATHENS (NEW) MODEL A403-13-12 HYDRAULIC 4-ROLL
DOUBLE PINCH PLATE BENDING MACHINE

7/16" X 12' CAPACITY MILD STEEL
13" NOMINAL TOP ROLL DIAMETER
25 HP, 3 PHASE
230/460 VOLT
0-22 FPM INFINITELY VARIABLE ROLL SPEED
- (0-14 FPM ON LARGER MACHINES)

STANDARD FEATURES

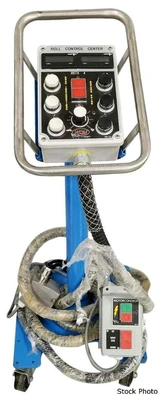

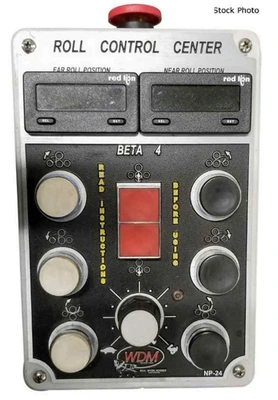

- BETA 4 MANUAL CONTROL
- 1045 STEEL ROLLS MACHINED TO 63 MICRO INCH
- TOTAL HYDRAULIC OPERATION
- INSTANT START, STOP, AND REVERSE
- 2-ROLL DRIVE
- ELECTRONICS MEET NFPA 79 SPECIFICATIONS
- 24C-120 AC CONTROL CIRCUIT
- OVERLOAD PROTECTION
- SEALED SPHERICAL ROLLER BEARINGS
- SAFETY/EMERGENCY STOP CABLE
- TEFC MAIN MOTOR
- QUIET HYDRAULIC SYSTEM
- HYDRAULICALLY ACTUATED DROP END
- COMPACT, STREAMLINED, WELDED STEEL FRAME

OPTIONS AVAILABLE -PRICE ON REQUEST
- CONE ATTACHMENT
- HEAVY-DUTY CONE ATTACHMENT
- HARDENED ROLLS
- HARDENED AND POLISHED POLLS
55-60 RC FLAME HARDENED 1045 MATERIAL
- CIRCULAR GROOVES
- STARTING GROOVES
- SIDE SUPPORTS
- OVERHEAD SUPPORTS
- UPGRADE TO PRE 4 SEMI-AUTOMATIC CONTROL
- UPGRADE TO AUTO 4 AUTOMATIC CONTROL
Power: 230/460 (3-Phase)
