NEW ERCOLINA CE60H3

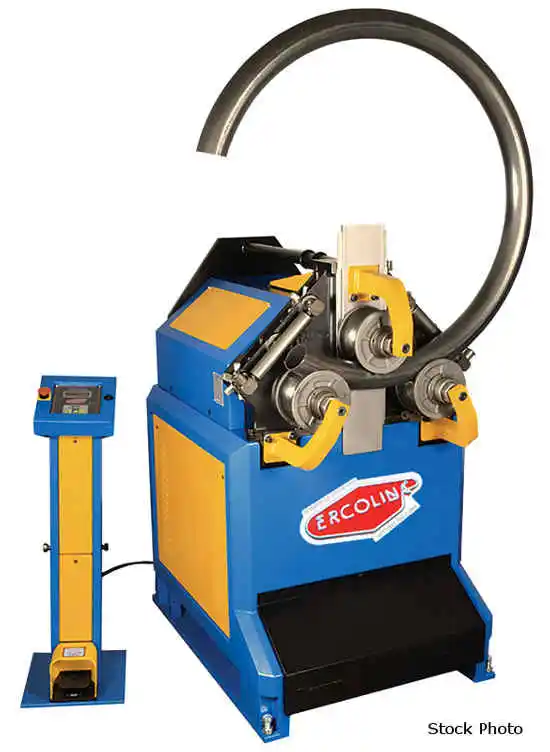

ERCOLINA (NEW) MODEL CE60H3 ANGLE ROLL

2" (50 MM) ROLL SHAFT DIAMETER
3" SCH. 10 PIPE CAPACITY
2-1/2" X 2-1/2" X 3/8" ANGLE CAPACITY
3-1/2" - 0.120 WALL TUBE
16.5 TONS HYD CENTER ROLL POSITIONING
9 RPM SHAFT SPEED

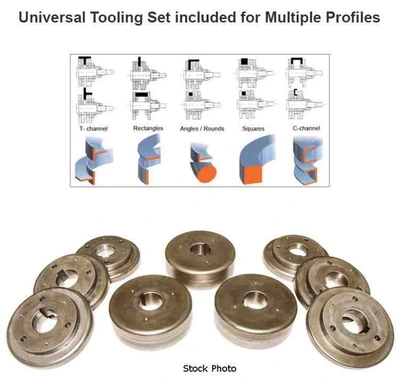

UNIVERSAL TOOLING SET INCLUDED - 7" OUTSIDE DIA
NC - TOUCHPAD PROGRAMMING
8 PROGRAMS
15" BETWEEN SHAFTS
220/480 VOLTS, 3 PHASE

FEATURES
- HORIZONTAL OR VERTICAL OPERATING POSITION
- FORGED ROLL SHAFTS PRECISION GROUND FITTED
FOR MAXIMUM PERFORMANCE MINIMAL DEFLECTION
- HEAVY DUTY STRUCTURE AND RIGID COMPONENTS
FOR HIGH SECTION MODULUS RATINGS
- REINFORCED ENGINEERED MAINFRAME DESIGN
- SIMULTANEOUS DOWNFEED ROLL MOVEMENT
TO MINIMIZE DEFORMATION

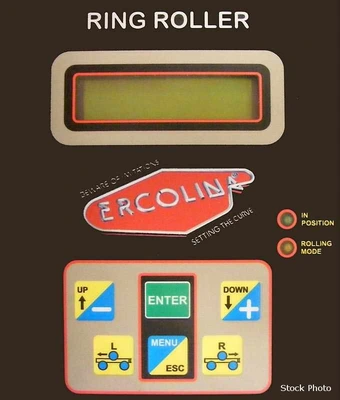

- TOUCH PAD CONTROLS WITH DIGITAL CENTER ROLL
POSITIONING
- TIE BAR SUPPORTS FOR EACH SHAFT
- MEMORY STORAGE - 8 PROGRAMS - UNLIMITED PASSES
- REMOTE PENDANT WITH
LOW VOLTAGE CONTROLS
FOOT PEDAL SWITCH
- THREADED ROLL SHAFTS WITH MICROMETRIC
FLANGE ADJUSTMENT HELPS ELIMINATE SPACER USAGE
- IN-LINE DIRECT-DRIVE ROLL SHAFT SYSTEM
- 3-ROLL DRIVEN
- USES CE50 TOOLING

CAPACITIES BASED ON MILD GRADE MATERIALS

OPTIONS AVAILABLE - PRICE ON REQUEST
- ANTI-TWIST CORRECTION SYSTEM
(REQUIRED FOR ANGLE IRON LEG-IN APPLICATIONS)
- SPRAY LUBRICANT
- PIPE AND TUBE TOOLING
- LARGE SPIRAL ACCESSORY
- RADIUS AND DEGREE MEASURING KIT
Power: 220/480 (3-Phase)
